Kioti DK5010 vs Kioti NX5010CH

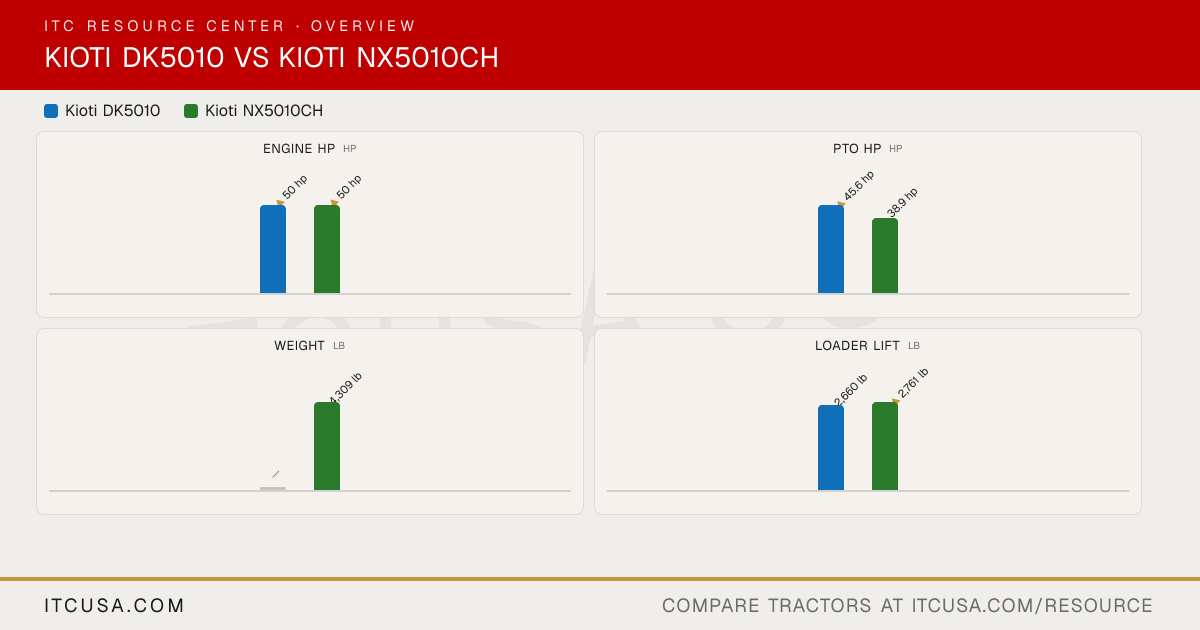

Across 8 measurable specs, the Kioti DK5010 leads 4 categories to 3 (1 tied). Machine pages: Kioti DK5010 and Kioti NX5010CH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK5010	KiotiNX5010CH

▶Engine
PTO Power	45.6 hp	38.9 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	In-Line Vertical, Water-Cooled Turbo Diesel Engine, CRDI	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	50 hp	50 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	4,309 lb
▶Warranty
Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)
▶Hydraulics
Pump Type	Gear	Gear
Steering Flow	Not Published	8.2 gpm
Implement Flow	Not Published	9.6 gpm
Total Hydraulic Flow	14.5 gpm	17.90 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.5 gpm	17.90 gpm
No. of Optional Remote Valves	2	1
No. of Standard Remote Valves	0	1
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position with Draft Control
Hitch Lift Capacity	2,716 lbs (24 in aft. of hitch)	3,177 lbs (at 24 in)
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,716 lbs	3,177 lbs
▶Tire Options
R3 Turf - Rear	5.7 gal-16.1	21.5lx16.1
R3 Turf - Front	29X12.5-15	29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	14.9-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8.0-16	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.58 gal
Fuel Tank Capacity	11.9 gal	14.8 gal
Front Axle Fluid Capacity	Not Published	1.8 gal
Transmission / Hydraulic System Capacity	Not Published	11.89 gal
▶Loader & Attachments
Loader Lift Height	109 in (to pivot pin)	108.3 in
Loader Breakout Force	3,900 lb (at pivot pin)	3,727 lb
Quick Attach Loader System	Built-in parking stand (quick attach/detach); single-lever joystick w/ float; bucket level indicator	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,660 lb (at pivot pins)	2,761 lb
▶Transmission & Drivetrain
Clutch	Dry type, single stage	None
No. of Speeds	8F/8R	3 Range
Transmission Type	Synchronized H-Shuttle	Hydrostatic
Max Travel Speed (Forward)	17.3 mph	16.52 mph
Max Travel Speed (Reverse)	16.9 mph	16.52 mph
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Brakes	Wet multi disc	Wet Multi Disc
Steering	Hydrostatic power steering; tilt steering wheel	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable Seat
▶Dimensions & Maneuverability
Wheelbase	71.3 in	75.6 in
Overall Width	62.8 in	65.6 in
Ground Clearance	15.2 in	13.7 in
Height to Top of ROPS	92.0 in	Not Applicable
Height to Top of Cab Model	Not Published	94.1 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	124.3 in	139.6 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $200.00 Bolt onto the side of the OEM guard and offers wrap around protection

Kioti DK5010 vs Kioti NX5010CH: Quick Answers

Which has more horsepower, the Kioti DK5010 or the Kioti NX5010CH?

They are effectively tied: both machines are rated at 50 hp hp for engine hp.

Which has more PTO horsepower, the Kioti DK5010 or the Kioti NX5010CH?

The Kioti DK5010 leads on pto hp at 45.6 hp hp, compared to 38.9 hp hp for the Kioti NX5010CH.

Which has more loader lift capacity, the Kioti DK5010 or the Kioti NX5010CH?

The Kioti NX5010CH leads on loader lift at 2,761 lb lb, compared to 2,660 lb lb for the Kioti DK5010.

Which has more three-point hitch lift capacity, the Kioti DK5010 or the Kioti NX5010CH?

The Kioti NX5010CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Kioti DK5010.
