Which has more horsepower, the Kioti DK5020 or the Kioti DK5320?

They are effectively tied: both machines are rated at 50.3 hp hp for engine hp.

Which has more PTO horsepower, the Kioti DK5020 or the Kioti DK5320?

The Kioti DK5020 leads on pto hp at 41.5 hp hp, compared to 39.3 hp hp for the Kioti DK5320.

Which has more loader lift capacity, the Kioti DK5020 or the Kioti DK5320?

They are effectively tied: both machines are rated at 2,474 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kioti DK5020 or the Kioti DK5320?

They are effectively tied: both machines are rated at 2,716 lb lb for 3-pt lift (24 in).

Kioti DK5020 vs Kioti DK5320

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kioti DK5320 leads 2 categories to 1 (5 tied). Machine pages: Kioti DK5020 and Kioti DK5320.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti DK5020	Kioti DK5320
Engine HP (hp)	50.3 hp	50.3 hp
PTO HP (hp)	▲ 41.5 hp	39.3 hp
Loader Lift (lb)	2,474 lb	2,474 lb
3-Pt Lift (24 in) (lb)	2,716 lb	2,716 lb
Lift Height (in)	107.7 in	107.7 in
Breakout Force (lbf)	3,895 lbf	3,895 lbf
Hydraulic Flow (gpm)	14.6 gpm	▲ 16.5 gpm
Travel Speed (mph)	16.7 mph	▲ 18.4 mph

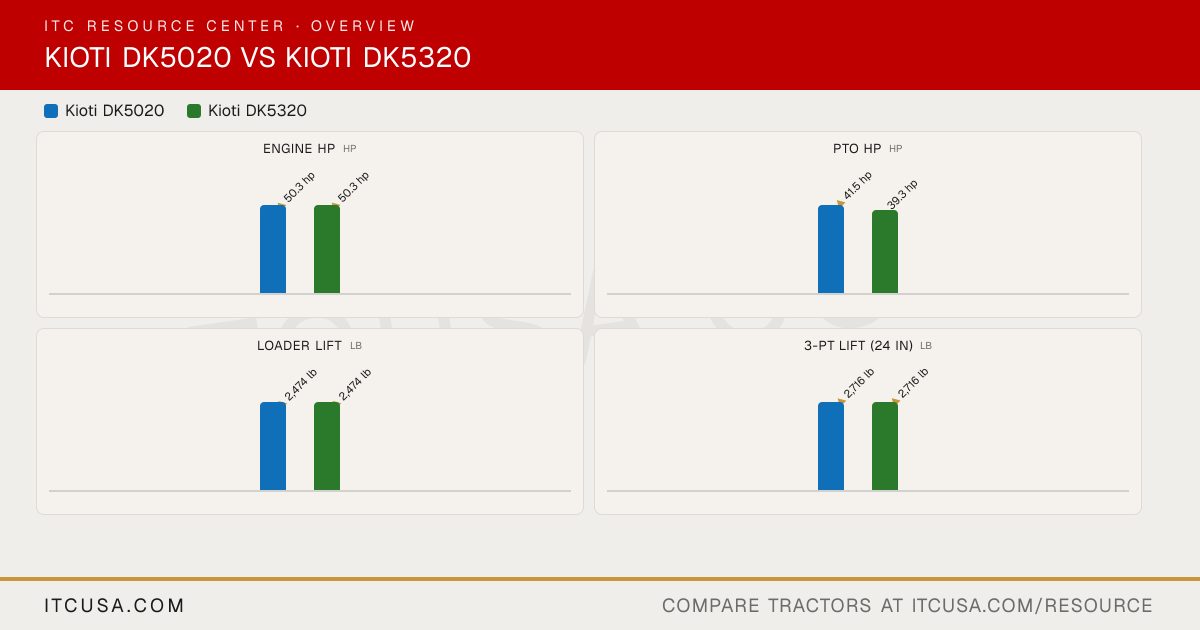

The headline numbers at a glance.

Kioti DK5020Kioti DK5320

Engine HPhp

▲50.3 hp

PTO HPhp

▲41.5 hp

39.3 hp

Weightlb

—

Loader Liftlb

▲2,474 lb

3-Pt Lift (24 in)lb

▲2,716 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK5020	KiotiDK5320


PTO Power	41.5 hp	39.3 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Dry element
Engine Type	Diesel, 4-cycle, water-cooled engine	3-Cyl Turbo Diesel (CRDI)
Fuel System	Not Published	Not Published
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Liquid-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	50.3 hp	50.3 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Gear	Gear
Steering Flow	4.94 gpm	6.87 gpm
Implement Flow	9.62 gpm	9.62 gpm
Total Hydraulic Flow	14.56 gpm	16.49 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.56 gpm	16.49 gpm
No. of Optional Remote Valves	2 (optional)	Not Published
No. of Standard Remote Valves	Not Published	2

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position
Hitch Lift Capacity	2,998 lb	2,998 lbs @ lower link ball
Mid-PTO Availability	2,000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,716 lb	2,716 lbs @ 24 in behind

R3 Turf - Rear	5.7 gal-16.1	5.7 gal-16.1
R3 Turf - Front	29X12.5-15	29X12.5-15
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	14.9-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8.0-16	8.0-16

Coolant Capacity	0.89 gal (engine only)	2.1 gal
Crankcase Capacity	1.95 gal	1.95 gal
Fuel Tank Capacity	11.9 gal	12.7 gal
Front Axle Fluid Capacity	1.48 gal	1.48 gal
Transmission / Hydraulic System Capacity	11.4 gal	11.4 gal

Loader Lift Height	107.7 in (to pivot pin)	107.7 in
Loader Breakout Force	3,895 lb (at pivot pins)	3,895.0 lb
Quick Attach Loader System	Quick attach (QA) bucket	Quick attach (QA) bucket
Loader Lift Capacity (Full Height)	2,474 lb @ 59.84 in pivot pin height	2,474.0 lb

Clutch	Dry Single Stage	None
No. of Speeds	8F/8R	3 ranges w/ infinite speeds
Transmission Type	Synchronized Shuttle	Hydrostatic
Max Travel Speed (Forward)	16.71 mph	18.45 mph
Max Travel Speed (Reverse)	16.28 mph	12.92 mph
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential lock: Rear standard

Brakes	Wet Disc Type	Wet Disc Type
Steering	Hydraulic Power Steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Mechanical 4WD
Drawbar Capacity	1,655 lb (Vertical Load)	Max. Drawbar vertical load: 1,655 lbs; Max. Trailer loading weight: 9,480 lbs
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Deluxe suspension seat

Wheelbase	71.3 in	71.3 in
Overall Width	62.8 in	62.8 in
Ground Clearance	14.5 in	14.5 in
Height to Top of ROPS	96.8 in	96.8 in
Height to Top of Cab Model	Not Published	93.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	124.3 in	125.5 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Kioti DK5020 vs Kioti DK5320: Quick Answers

Which has more horsepower, the Kioti DK5020 or the Kioti DK5320?: They are effectively tied: both machines are rated at 50.3 hp hp for engine hp.
Which has more PTO horsepower, the Kioti DK5020 or the Kioti DK5320?: The Kioti DK5020 leads on pto hp at 41.5 hp hp, compared to 39.3 hp hp for the Kioti DK5320.
Which has more loader lift capacity, the Kioti DK5020 or the Kioti DK5320?: They are effectively tied: both machines are rated at 2,474 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Kioti DK5020 or the Kioti DK5320?: They are effectively tied: both machines are rated at 2,716 lb lb for 3-pt lift (24 in).
