Which has more horsepower, the Kioti DK5020 or the Kioti NX5010CH?

The Kioti DK5020 leads on engine hp at 50.3 hp hp, compared to 50 hp hp for the Kioti NX5010CH.

Which has more PTO horsepower, the Kioti DK5020 or the Kioti NX5010CH?

The Kioti DK5020 leads on pto hp at 41.5 hp hp, compared to 38.9 hp hp for the Kioti NX5010CH.

Which has more loader lift capacity, the Kioti DK5020 or the Kioti NX5010CH?

The Kioti NX5010CH leads on loader lift at 2,761 lb lb, compared to 2,474 lb lb for the Kioti DK5020.

Which has more three-point hitch lift capacity, the Kioti DK5020 or the Kioti NX5010CH?

The Kioti NX5010CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Kioti DK5020.

Kioti DK5020 vs Kioti NX5010CH

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kioti DK5020, 4 to the Kioti NX5010CH. Machine pages: Kioti DK5020 and Kioti NX5010CH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti DK5020	Kioti NX5010CH
Engine HP (hp)	▲ 50.3 hp	50 hp
PTO HP (hp)	▲ 41.5 hp	38.9 hp
Weight (lb)	—	4,309 lb
Loader Lift (lb)	2,474 lb	▲ 2,761 lb
3-Pt Lift (24 in) (lb)	2,716 lb	▲ 3,177 lb
Lift Height (in)	107.7 in	▲ 108.3 in
Breakout Force (lbf)	▲ 3,895 lbf	3,727 lbf
Hydraulic Flow (gpm)	14.6 gpm	▲ 17.9 gpm
Travel Speed (mph)	▲ 16.7 mph	16.5 mph

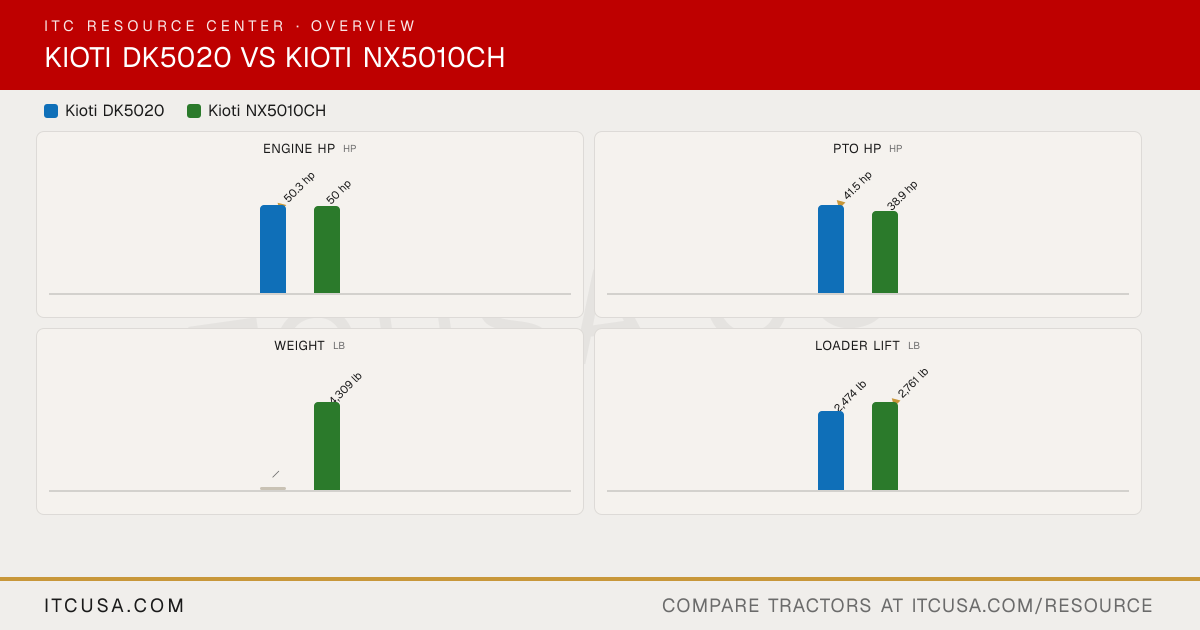

The headline numbers at a glance.

Kioti DK5020Kioti NX5010CH

Engine HPhp

▲50.3 hp

50 hp

PTO HPhp

▲41.5 hp

38.9 hp

Weightlb

—

4,309 lb

Loader Liftlb

2,474 lb

▲2,761 lb

3-Pt Lift (24 in)lb

2,716 lb

▲3,177 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK5020	KiotiNX5010CH


PTO Power	41.5 hp	38.9 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, 4-cycle, water-cooled engine	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	50.3 hp	50 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	4,309 lb

Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)

Pump Type	Gear	Gear
Steering Flow	4.94 gpm	8.2 gpm
Implement Flow	9.62 gpm	9.6 gpm
Total Hydraulic Flow	14.56 gpm	17.90 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.56 gpm	17.90 gpm
No. of Optional Remote Valves	2 (optional)	1
No. of Standard Remote Valves	Not Published	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position with Draft Control
Hitch Lift Capacity	2,998 lb	3,177 lbs (at 24 in)
Mid-PTO Availability	2,000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,716 lb	3,177 lbs

R3 Turf - Rear	5.7 gal-16.1	21.5lx16.1
R3 Turf - Front	29X12.5-15	29x12.5-15
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	14.9-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8.0-16	8.0-16

Coolant Capacity	0.89 gal (engine only)	2.0 gal
Crankcase Capacity	1.95 gal	1.58 gal
Fuel Tank Capacity	11.9 gal	14.8 gal
Front Axle Fluid Capacity	1.48 gal	1.8 gal
Transmission / Hydraulic System Capacity	11.4 gal	11.89 gal

Loader Lift Height	107.7 in (to pivot pin)	108.3 in
Loader Breakout Force	3,895 lb (at pivot pins)	3,727 lb
Quick Attach Loader System	Quick attach (QA) bucket	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,474 lb @ 59.84 in pivot pin height	2,761 lb

Clutch	Dry Single Stage	None
No. of Speeds	8F/8R	3 Range
Transmission Type	Synchronized Shuttle	Hydrostatic
Max Travel Speed (Forward)	16.71 mph	16.52 mph
Max Travel Speed (Reverse)	16.28 mph	16.52 mph
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Differential Lock: Rear (Standard)

Brakes	Wet Disc Type	Wet Multi Disc
Steering	Hydraulic Power Steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Not Published
Drawbar Capacity	1,655 lb (Vertical Load)	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Adjustable Seat

Wheelbase	71.3 in	75.6 in
Overall Width	62.8 in	65.6 in
Ground Clearance	14.5 in	13.7 in
Height to Top of ROPS	96.8 in	Not Applicable
Height to Top of Cab Model	Not Published	94.1 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	124.3 in	139.6 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Kioti DK5020 vs Kioti NX5010CH: Quick Answers

Which has more horsepower, the Kioti DK5020 or the Kioti NX5010CH?: The Kioti DK5020 leads on engine hp at 50.3 hp hp, compared to 50 hp hp for the Kioti NX5010CH.
Which has more PTO horsepower, the Kioti DK5020 or the Kioti NX5010CH?: The Kioti DK5020 leads on pto hp at 41.5 hp hp, compared to 38.9 hp hp for the Kioti NX5010CH.
Which has more loader lift capacity, the Kioti DK5020 or the Kioti NX5010CH?: The Kioti NX5010CH leads on loader lift at 2,761 lb lb, compared to 2,474 lb lb for the Kioti DK5020.
Which has more three-point hitch lift capacity, the Kioti DK5020 or the Kioti NX5010CH?: The Kioti NX5010CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Kioti DK5020.
