Kioti DK5320 vs Kioti DK55

Across 9 measurable specs, the Kioti DK55 leads 6 categories to 3. Machine pages: Kioti DK5320 and Kioti DK55.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK5320	KiotiDK55

▶Engine
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Model	3HT-TH4C	4A220T
Engine Type	3-cylinder, liquid-cooled diesel	Indirect injection, vertical, water-cooled, turbocharged 4-cycle diesel
No. of Cylinders	3	4
Displacement	111.4 in³	134.1 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	50.3 hp	54 hp
PTO Power	39.3 hp	45.2 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry element	High efficiency air filter with cyclone pre-cleaner canister
Fuel System	Not Published	Indirect injection
Alternator	Not Published	50 A, 12 V
▶Hydraulics
Pump Type	Gear	Tandem gear
Implement Flow	9.62 gpm	9.88 gpm
Steering Flow	6.87 gpm	4.33 gpm
Total Hydraulic Flow	16.5 gpm	14.2 gpm
Overall Hydraulic Pump Flow	16.5 gpm	14.2 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	2
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	12.7 gal	18.0 gal
Coolant Capacity	2.1 gal	2.51 gal
Crankcase Capacity	1.95 gal	2.25 gal
Transmission / Hydraulic System Capacity	11.4 gal	10.0 gal
Front Axle Fluid Capacity	1.48 gal	2.17 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540/1000 rpm
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category II (Category I ends optional)
Hitch Lift Capacity	2,998 lb	Not Published
Hitch Lift Capacity (at 24”)	2,716 lb	2,654 lb
Lift Control Type	Position	Position, Draft and Mixed control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Synchronized shuttle
No. of Speeds	3 ranges (hydrostatic, infinite speeds)	12F/12R
Max Travel Speed (Forward)	18.45 mph	16.42 mph
Max Travel Speed (Reverse)	12.92 mph	13.59 mph
Clutch	None (hydrostatic transmission)	Dry type single plate, single stage
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet disc type
Seat Suspension & Adjustability	Deluxe suspension seat	Adjustable seat
Front Axle Type	Mechanical 4WD	4WD (bevel gear front wheel drive, push-button engagement)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	125.5 in	128.6 in
Overall Width	62.8 in	69.3 in
Wheelbase	71.3 in	75.6 in
Ground Clearance	14.5 in	17.5 in
Min. Turn Radius without Brakes	102.8 in (with brake applied)	145 in
Height to Top of ROPS	96.8 in	106.5 in
Height to Top of ROPS (folded)	Not Published	85.5 in
Height to Top of Cab Model	93.0 in	97.2 in
▶Weight
Tractor Weight (Base)	3,523 lb (DK5320SEH); 4,043 lb (DK5320SEH CAB)	4,795 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial, R14	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	9.5-20
R1 Agricultural - Rear	13.6-24	14.9-28
R3 Turf - Front	29-12.5-15	29x12.5-15
R3 Turf - Rear	21.5L-16.1	44x18-20
R4 Industrial - Front	10-16.5	14x17.5
R4 Industrial - Rear	14.9-24	18.4x24
▶Loader & Attachments
Quick Attach Loader System	Quick attach (QA) bucket, 66 in or 72 in	KL551: universal quick-attach bucket mount, 78 in QA bucket
Loader Model	KL5520; KL5521 (Cab models)	KL551; KL1595
Loader Lift Height	KL5520: 107.7 in; KL5521: 107.7 in	KL551: 113.58 in; KL1595: 127.52 in
Loader Lift Capacity (Full Height)	KL5520: 2,474 lb; KL5521: 2,474 lb	KL551: 2,850 lb; KL1595: 2,685 lb
Loader Breakout Force	KL5520: 3,895 lb; KL5521: 3,895 lb	KL551: 4,675 lb; KL1595: 4,500 lb
▶Warranty
Warranty Length & Coverage	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
▶ITC Company Accessories
Accessories that fit	Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a KIOTI dealer near you→

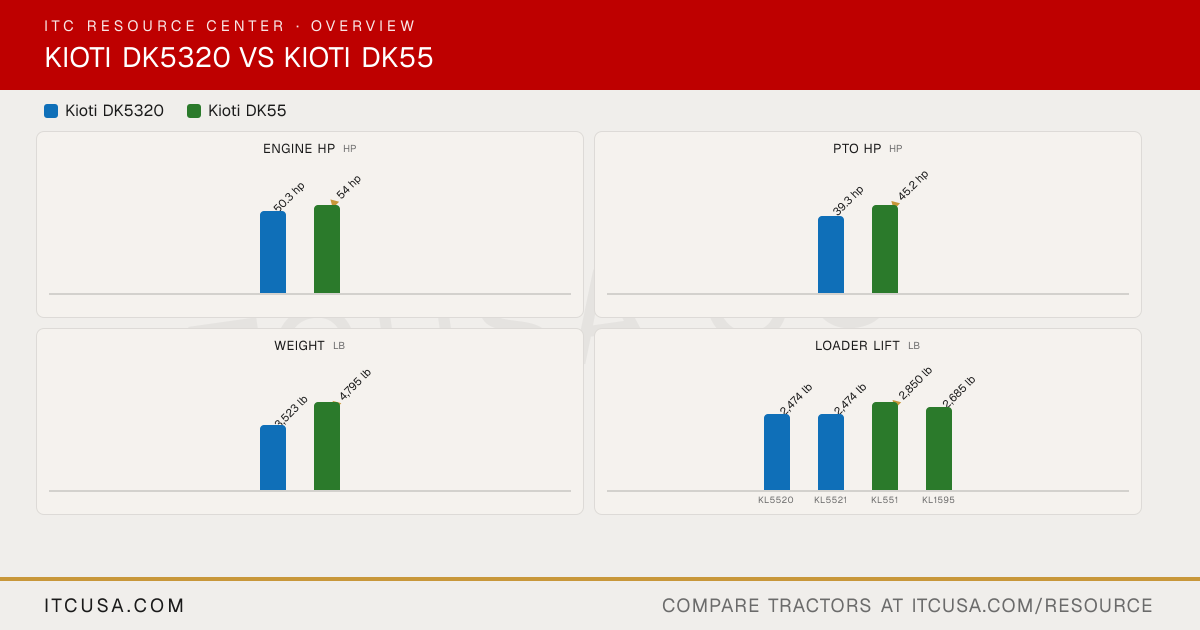

Kioti DK5320 vs Kioti DK55: Quick Answers

Which has more horsepower, the Kioti DK5320 or the Kioti DK55?

The Kioti DK55 leads on engine hp at 54 hp hp, compared to 50.3 hp hp for the Kioti DK5320.

Which has more PTO horsepower, the Kioti DK5320 or the Kioti DK55?

The Kioti DK55 leads on pto hp at 45.2 hp hp, compared to 39.3 hp hp for the Kioti DK5320.

Which is heavier, the Kioti DK5320 or the Kioti DK55?

The Kioti DK55 leads on weight at 4,795 lb lb, compared to 3,523 lb lb for the Kioti DK5320.

Which has more loader lift capacity, the Kioti DK5320 or the Kioti DK55?

The Kioti DK55 leads on loader lift at 2,850 lb lb, compared to 2,474 lb lb for the Kioti DK5320.

Which has more three-point hitch lift capacity, the Kioti DK5320 or the Kioti DK55?

The Kioti DK5320 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,654 lb lb for the Kioti DK55.
