Kioti DK5520 vs Kioti NX5510C
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the Kioti NX5510C leads 6 categories to 2 (1 tied). Machine pages: Kioti DK5520 and Kioti NX5510C.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

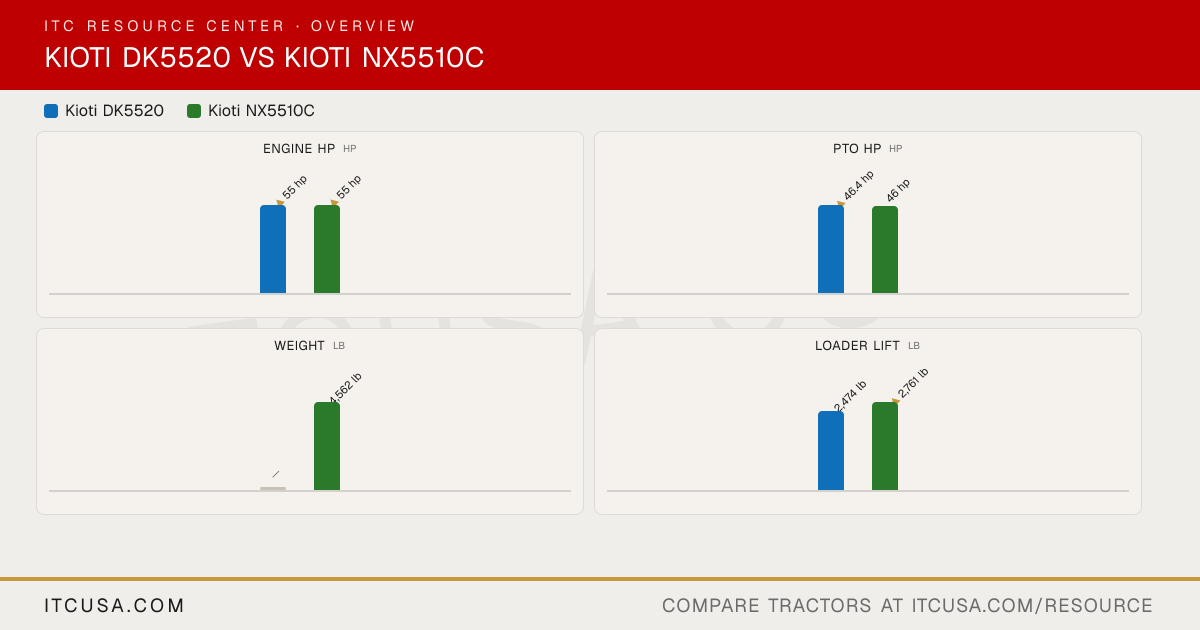

Category Verdict
| Spec | Kioti DK5520 | Kioti NX5510C |
|---|---|---|
| Engine HP (hp) | 55 hp | 55 hp |
| PTO HP (hp) | ▲ 46.4 hp | 46 hp |
| Weight (lb) | 3,373 lb | ▲ 4,562 lb |
| Loader Lift (lb) | 2,474 lb | ▲ 2,761 lb |
| 3-Pt Lift (24 in) (lb) | 2,716 lb | ▲ 3,177 lb |
| Lift Height (in) | 107.7 in | ▲ 108.3 in |
| Breakout Force (lbf) | ▲ 3,895 lbf | 3,727 lbf |
| Hydraulic Flow (gpm) | 14.6 gpm | ▲ 16.5 gpm |
| Travel Speed (mph) | 16.7 mph | ▲ 17.4 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiDK5520 | KiotiNX5510C |
|---|
| Engine Manufacturer | KIOTI | KIOTI |
|---|---|---|
| Engine Model | 3HT-TM4B | 3F183T |
| Engine Type | 3-cylinder, liquid-cooled diesel | 3-cylinder, in-line vertical, water-cooled, 4-cycle, turbocharged, common rail diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 111.4 in³ | 111.4 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 55 hp | 55 hp |
| PTO Power | 46.4 hp | 46 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Water-cooled |
| Air Cleaner | Not Published | Dry type element |
| Fuel System | Not Published | Common Rail Diesel (CRDI) |
| Alternator | Not Published | Not Published |
Kioti DK5520 vs Kioti NX5510C: Quick Answers
- Which has more horsepower, the Kioti DK5520 or the Kioti NX5510C?
- They are effectively tied: both machines are rated at 55 hp hp for engine hp.
- Which has more PTO horsepower, the Kioti DK5520 or the Kioti NX5510C?
- The Kioti DK5520 leads on pto hp at 46.4 hp hp, compared to 46 hp hp for the Kioti NX5510C.
- Which is heavier, the Kioti DK5520 or the Kioti NX5510C?
- The Kioti NX5510C leads on weight at 4,562 lb lb, compared to 3,373 lb lb for the Kioti DK5520.
- Which has more loader lift capacity, the Kioti DK5520 or the Kioti NX5510C?
- The Kioti NX5510C leads on loader lift at 2,761 lb lb, compared to 2,474 lb lb for the Kioti DK5520.
- Which has more three-point hitch lift capacity, the Kioti DK5520 or the Kioti NX5510C?
- The Kioti NX5510C leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Kioti DK5520.
