Which has more horsepower, the Kioti DK6020 or the Kioti NX5510H?

The Kioti DK6020 leads on engine hp at 57.7 hp hp, compared to 55 hp hp for the Kioti NX5510H.

Which has more PTO horsepower, the Kioti DK6020 or the Kioti NX5510H?

The Kioti DK6020 leads on pto hp at 44.9 hp hp, compared to 43.1 hp hp for the Kioti NX5510H.

Which has more loader lift capacity, the Kioti DK6020 or the Kioti NX5510H?

The Kioti NX5510H leads on loader lift at 2,761 lb lb, compared to 2,474 lb lb for the Kioti DK6020.

Which has more three-point hitch lift capacity, the Kioti DK6020 or the Kioti NX5510H?

The Kioti NX5510H leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Kioti DK6020.

Kioti DK6020 vs Kioti NX5510H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kioti DK6020, 4 to the Kioti NX5510H. Machine pages: Kioti DK6020 and Kioti NX5510H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti DK6020	Kioti NX5510H
Engine HP (hp)	▲ 57.7 hp	55 hp
PTO HP (hp)	▲ 44.9 hp	43.1 hp
Weight (lb)	—	4,198 lb
Loader Lift (lb)	2,474 lb	▲ 2,761 lb
3-Pt Lift (24 in) (lb)	2,716 lb	▲ 3,177 lb
Lift Height (in)	107.7 in	▲ 108.3 in
Breakout Force (lbf)	▲ 3,895 lbf	3,727 lbf
Hydraulic Flow (gpm)	16.5 gpm	▲ 17.9 gpm
Travel Speed (mph)	▲ 18.4 mph	18.3 mph

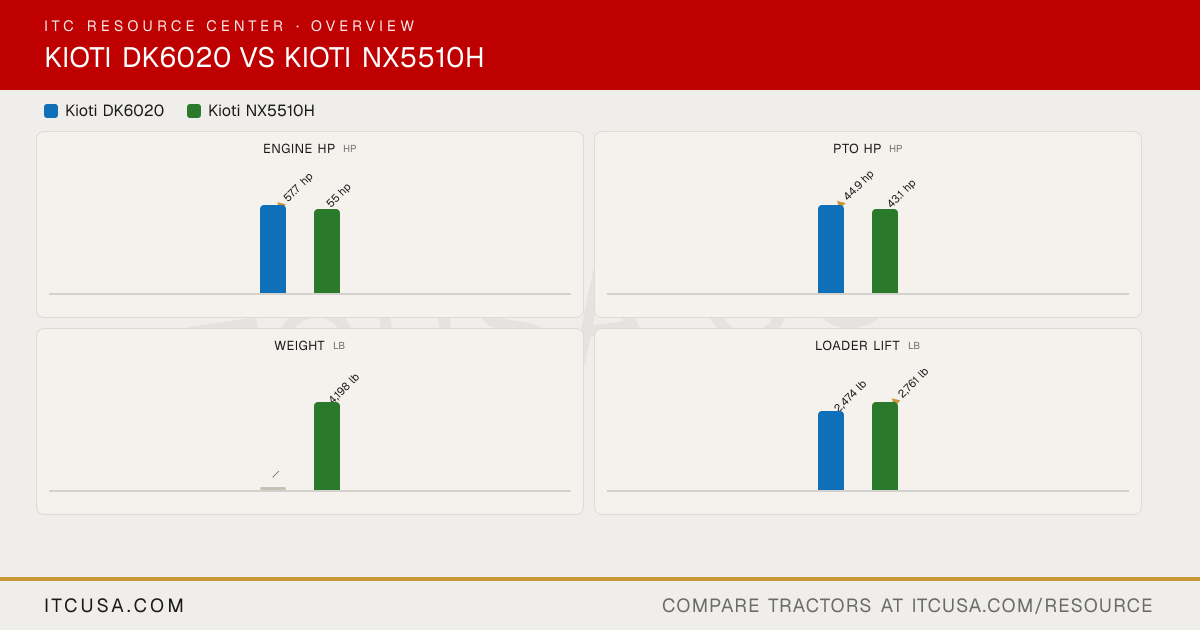

The headline numbers at a glance.

Kioti DK6020Kioti NX5510H

Engine HPhp

▲57.7 hp

55 hp

PTO HPhp

▲44.9 hp

43.1 hp

Weightlb

—

4,198 lb

Loader Liftlb

2,474 lb

▲2,761 lb

3-Pt Lift (24 in)lb

2,716 lb

▲3,177 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiDK6020	KiotiNX5510H


PTO Power	44.9 hp	43.1 hp
Alternator	Not Published	Not Published
Air Cleaner	Dry element	Not Published
Engine Type	3-Cyl Turbo Diesel (CRDI)	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Not Published	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	57.7 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	4,198 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)

Pump Type	Gear	Gear
Steering Flow	6.87 gpm	8.2 gpm
Implement Flow	9.62 gpm	9.6 gpm
Total Hydraulic Flow	16.49 gpm	17.90 gpm
Hydraulic System Type	Not Published	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.49 gpm	17.90 gpm
No. of Optional Remote Valves	Not Published	1
No. of Standard Remote Valves	2	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Position with Draft Control
Hitch Lift Capacity	2,998 lbs @ lower link ball	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,716 lbs @ 24 in behind	3,177 lbs

R3 Turf - Rear	5.7 gal-16.1	21.5lx16.1
R3 Turf - Front	29X12.5-15	29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	17.5-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-28
R1 Agricultural - Front	8.0-16	9.5-16

Coolant Capacity	2.1 gal	2.0 gal
Crankcase Capacity	1.95 gal	1.58 gal
Fuel Tank Capacity	12.7 gal	14.8 gal
Front Axle Fluid Capacity	1.48 gal	1.8 gal
Transmission / Hydraulic System Capacity	11.4 gal	11.89 gal

Loader Lift Height	107.7 in	108.3 in
Loader Breakout Force	3,895.0 lb	3,727 lb
Quick Attach Loader System	Quick attach (QA) bucket	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,474.0 lb	2,761 lb

Clutch	None	None
No. of Speeds	3 ranges w/ infinite speeds	3 Range
Transmission Type	Hydrostatic	Hydrostatic
Max Travel Speed (Forward)	18.45 mph	18.26 mph
Max Travel Speed (Reverse)	12.92 mph	18.26 mph
Differential Lock & Limited Slip Options	Differential lock: Rear standard	Differential Lock: Rear (Standard)

Brakes	Wet Disc Type	Wet Multi Disc
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical 4WD	Not Published
Drawbar Capacity	Max. Drawbar vertical load: 1,655 lbs; Max. Trailer loading weight: 9,480 lbs	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Adjustable Seat

Wheelbase	71.3 in	75.6 in
Overall Width	62.8 in	65.7 in
Ground Clearance	14.5 in	15.7 in
Height to Top of ROPS	96.8 in	103.1 in
Height to Top of Cab Model	93.0 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.97 ft (3.04 m)
Overall Length with 3-Point Hitch	125.5 in	139.6 in

Accessories that fit	Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Kioti DK6020 vs Kioti NX5510H: Quick Answers

Which has more horsepower, the Kioti DK6020 or the Kioti NX5510H?: The Kioti DK6020 leads on engine hp at 57.7 hp hp, compared to 55 hp hp for the Kioti NX5510H.
Which has more PTO horsepower, the Kioti DK6020 or the Kioti NX5510H?: The Kioti DK6020 leads on pto hp at 44.9 hp hp, compared to 43.1 hp hp for the Kioti NX5510H.
Which has more loader lift capacity, the Kioti DK6020 or the Kioti NX5510H?: The Kioti NX5510H leads on loader lift at 2,761 lb lb, compared to 2,474 lb lb for the Kioti DK6020.
Which has more three-point hitch lift capacity, the Kioti DK6020 or the Kioti NX5510H?: The Kioti NX5510H leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,716 lb lb for the Kioti DK6020.
