Kioti HX9010 vs Kubota M5-091HDC
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kioti HX9010 leads 6 categories to 2. Machine pages: Kioti HX9010 and Kubota M5-091HDC.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

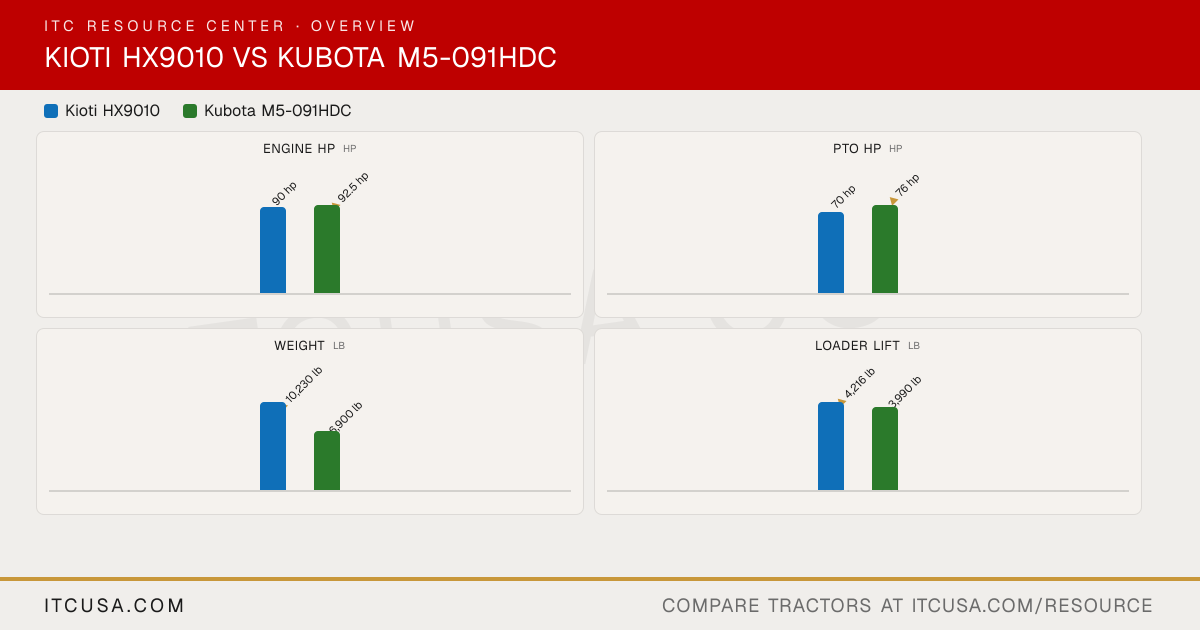

Category Verdict
| Spec | Kioti HX9010 | Kubota M5-091HDC |
|---|---|---|
| Engine HP (hp) | 90 hp | ▲ 92.5 hp |
| PTO HP (hp) | 70 hp | ▲ 76 hp |
| Weight (lb) | ▲ 10,230 lb | 6,900 lb |
| Loader Lift (lb) | ▲ 4,216 lb | 3,990 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 8,002 lb | 5,181 lb |
| Lift Height (in) | ▲ 150.6 in | 145.7 in |
| Breakout Force (lbf) | 8,554 lbf | n/a |
| Hydraulic Flow (gpm) | ▲ 32 gpm | 23.1 gpm |
| Travel Speed (mph) | ▲ 23.8 mph | 18.6 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiHX9010 | KubotaM5-091HDC |
|---|
| Engine Manufacturer | KIOTI (Daedong) | Kubota |
|---|---|---|
| Engine Model | 4J243TA-TP5B | V3800CR-TIEF4 |
| Engine Type | In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4J243TA-TP5B) | 4-cylinder in-line, common rail direct injection, turbocharged with intercooler, DPF, DOC and SCR diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 233.9 in³ | 230 in³ |
| Rated Engine Speed | 2200 rpm | 2600 rpm |
| Engine Power (Gross) | 90 hp | 92.5 hp |
| PTO Power | 70 hp | 76 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Water-cooled | Liquid-cooled |
| Air Cleaner | Dry element with evacuator valve | Dry paper, dual element, 8 in diameter, with pre-cleaner |
| Fuel System | Common Rail Direct Injection (CRDI) | Common rail direct injection |
| Alternator | Not Published | 80 A, 12 V |
Kioti HX9010 vs Kubota M5-091HDC: Quick Answers
- Which has more horsepower, the Kioti HX9010 or the Kubota M5-091HDC?
- The Kubota M5-091HDC leads on engine hp at 92.5 hp hp, compared to 90 hp hp for the Kioti HX9010.
- Which has more PTO horsepower, the Kioti HX9010 or the Kubota M5-091HDC?
- The Kubota M5-091HDC leads on pto hp at 76 hp hp, compared to 70 hp hp for the Kioti HX9010.
- Which is heavier, the Kioti HX9010 or the Kubota M5-091HDC?
- The Kioti HX9010 leads on weight at 10,230 lb lb, compared to 6,900 lb lb for the Kubota M5-091HDC.
- Which has more loader lift capacity, the Kioti HX9010 or the Kubota M5-091HDC?
- The Kioti HX9010 leads on loader lift at 4,216 lb lb, compared to 3,990 lb lb for the Kubota M5-091HDC.
- Which has more three-point hitch lift capacity, the Kioti HX9010 or the Kubota M5-091HDC?
- The Kioti HX9010 leads on 3-pt lift (24 in) at 8,002 lb lb, compared to 5,181 lb lb for the Kubota M5-091HDC.
