Which has more horsepower, the Kioti NS4710 or the Kioti NX4510H?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Kioti NS4710 or the Kioti NX4510H?

The Kioti NS4710 leads on pto hp at 36.6 hp hp, compared to 33.9 hp hp for the Kioti NX4510H.

Which is heavier, the Kioti NS4710 or the Kioti NX4510H?

The Kioti NS4710 leads on weight at 4,027 lb lb, compared to 4,000 lb lb for the Kioti NX4510H.

Which has more loader lift capacity, the Kioti NS4710 or the Kioti NX4510H?

The Kioti NX4510H leads on loader lift at 2,761 lb lb, compared to 2,621 lb lb for the Kioti NS4710.

Which has more three-point hitch lift capacity, the Kioti NS4710 or the Kioti NX4510H?

The Kioti NX4510H leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,493 lb lb for the Kioti NS4710.

Kioti NS4710 vs Kioti NX4510H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the Kioti NS4710, 4 to the Kioti NX4510H, 1 tied. Machine pages: Kioti NS4710 and Kioti NX4510H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti NS4710	Kioti NX4510H
Engine HP (hp)	45 hp	45 hp
PTO HP (hp)	▲ 36.6 hp	33.9 hp
Weight (lb)	▲ 4,027 lb	4,000 lb
Loader Lift (lb)	2,621 lb	▲ 2,761 lb
3-Pt Lift (24 in) (lb)	2,493 lb	▲ 3,177 lb
Lift Height (in)	106.3 in	▲ 108.3 in
Breakout Force (lbf)	▲ 3,896 lbf	3,727 lbf
Hydraulic Flow (gpm)	16.5 gpm	▲ 17.9 gpm
Travel Speed (mph)	▲ 16.7 mph	16.5 mph

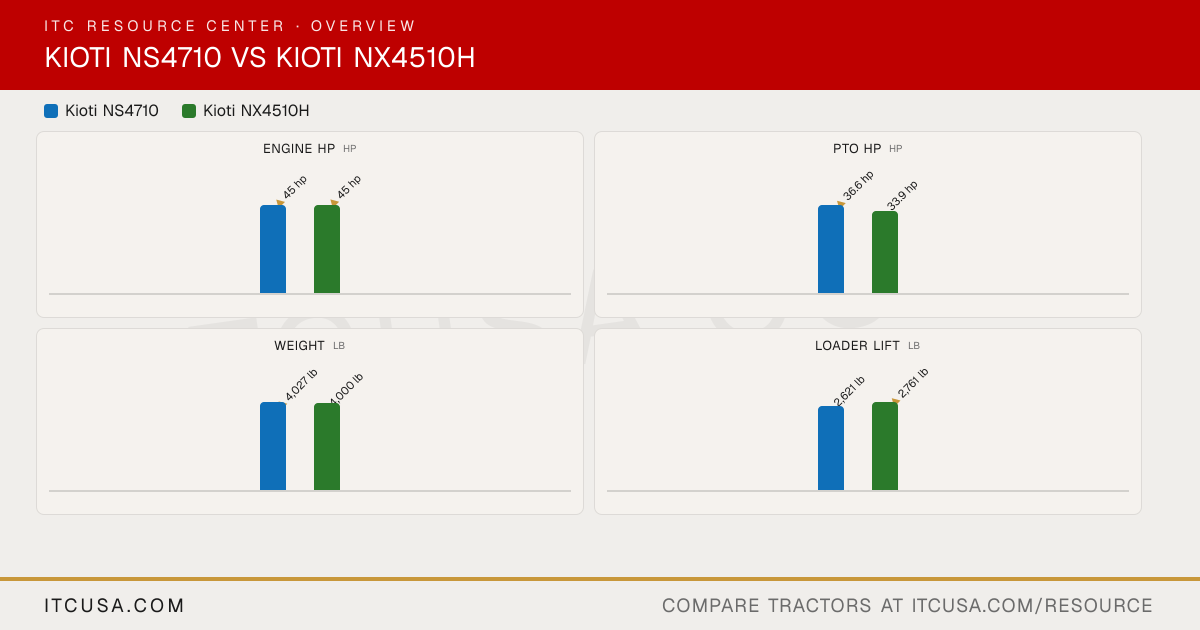

The headline numbers at a glance.

Kioti NS4710Kioti NX4510H

Engine HPhp

▲45 hp

PTO HPhp

▲36.6 hp

33.9 hp

Weightlb

▲4,027 lb

4,000 lb

Loader Liftlb

2,621 lb

▲2,761 lb

3-Pt Lift (24 in)lb

2,493 lb

▲3,177 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNS4710	KiotiNX4510H


PTO Power	36.6 hp	33.9 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	In-line Vertical, Water-cooled 4-cycle Turbo Diesel, CRDI (Engine model: 3HT-S4TM45A)	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	45 hp	45 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	4,027.0 (1,827.0) (Weight w/AG tires)	4,000 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)

Pump Type	Gear	Gear
Steering Flow	6.87 gpm	8.2 gpm
Implement Flow	9.61 gpm	9.6 gpm
Total Hydraulic Flow	16.48 gpm	17.90 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.48 gpm	17.90 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	1	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position, Draft, Mixed Control	Position with Draft Control
Hitch Lift Capacity	2,940 lb	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,493 lb	3,177 lbs

R3 Turf - Rear	5.7 gal-16.1	21.5lx16.1
R3 Turf - Front	29X12.5-15	29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	14.9-24	14.9-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-24	13.6-24
R1 Agricultural - Front	8.0-16	8.0-16

Coolant Capacity	2.03 gal	2.0 gal
Crankcase Capacity	1.95 gal	1.58 gal
Fuel Tank Capacity	13.2 gal	14.8 gal
Front Axle Fluid Capacity	2.25 gal	1.8 gal
Transmission / Hydraulic System Capacity	11.36 gal	11.89 gal

Loader Lift Height	106.30 in	108.3 in
Loader Breakout Force	3,896 lb	3,727 lb
Quick Attach Loader System	Built-in parking stand; designed to be quickly and easily attached/detached	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,621 lb	2,761 lb

Clutch	Dry type single stage	None
No. of Speeds	F12 X R12	3 Range
Transmission Type	Synchro shuttle	Hydrostatic
Max Travel Speed (Forward)	16.7 mph	16.52 mph
Max Travel Speed (Reverse)	14.8 mph	16.52 mph
Differential Lock & Limited Slip Options	Mechanical differential lock: rear standard	Differential Lock: Rear (Standard)

Brakes	Wet disc type	Wet Multi Disc
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Deluxe suspension seat	Adjustable Seat

Wheelbase	75.5 in	75.6 in
Overall Width	67.1 in	65.6 in
Ground Clearance	13.4 in	13.7 in
Height to Top of ROPS	98.4 (2,499.4) w/o Beacon	103.1 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.81 ft (2.99 m)
Overall Length with 3-Point Hitch	136.4 in	139.6 in

Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Kioti NS4710 vs Kioti NX4510H: Quick Answers

Which has more horsepower, the Kioti NS4710 or the Kioti NX4510H?: They are effectively tied: both machines are rated at 45 hp hp for engine hp.
Which has more PTO horsepower, the Kioti NS4710 or the Kioti NX4510H?: The Kioti NS4710 leads on pto hp at 36.6 hp hp, compared to 33.9 hp hp for the Kioti NX4510H.
Which is heavier, the Kioti NS4710 or the Kioti NX4510H?: The Kioti NS4710 leads on weight at 4,027 lb lb, compared to 4,000 lb lb for the Kioti NX4510H.
Which has more loader lift capacity, the Kioti NS4710 or the Kioti NX4510H?: The Kioti NX4510H leads on loader lift at 2,761 lb lb, compared to 2,621 lb lb for the Kioti NS4710.
Which has more three-point hitch lift capacity, the Kioti NS4710 or the Kioti NX4510H?: The Kioti NX4510H leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,493 lb lb for the Kioti NS4710.
