Kioti NX4510C vs Yanmar YM347

Across 9 measurable specs, the Kioti NX4510C leads 5 categories to 4. Machine pages: Kioti NX4510C and Yanmar YM347.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

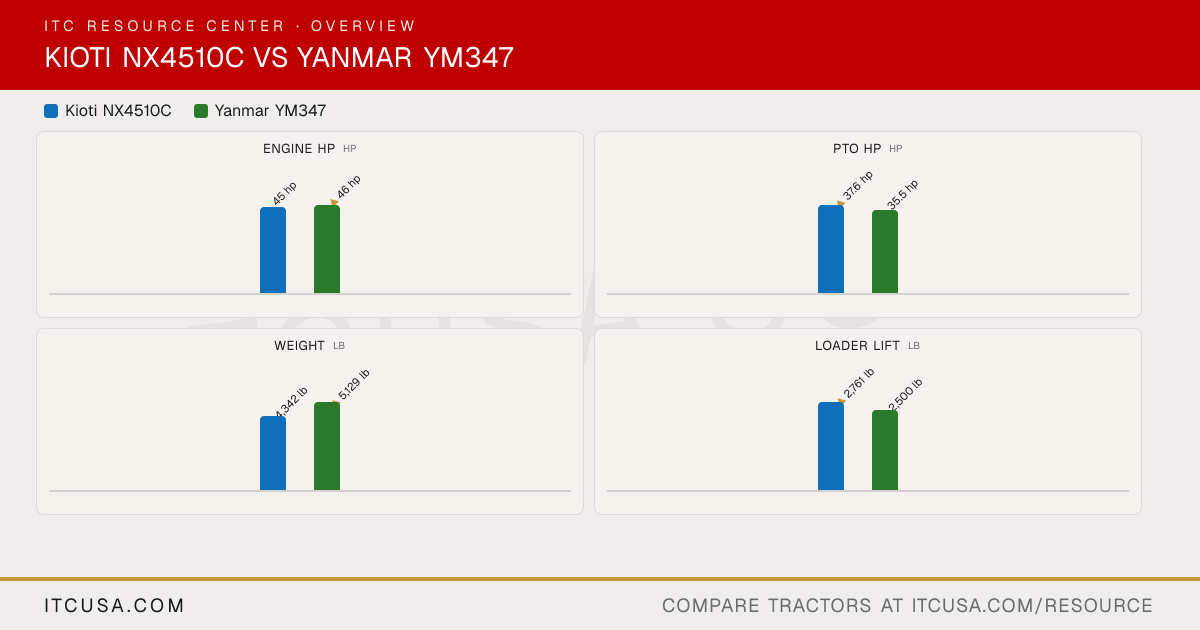

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX4510C	YanmarYM347

▶Engine
PTO Power	37.6 hp	35.5 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Dual air cleaner element
Engine Type	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	4-cylinder, liquid-cooled diesel
Fuel System	Common Rail Direct Injection (CRDI)	Not Published
Displacement	111.4 in³	133.6 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	Not Published
Cooling System Type	Water-cooled	Liquid cooled
Engine Manufacturer	KIOTI (Daedong)	YANMAR
Engine Power (Gross)	45 hp	46 hp
Engine Emissions Constraints	Tier 4	Not Published
▶Weight
Weight with ROPS and Loader	Not Applicable	5,129 lb
Weight with Cab and Loader	4,342 lb	Not Applicable
▶Warranty
Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	10-year limited powertrain warranty or 3,000 hours (whichever comes first)
▶Hydraulics
Pump Type	Gear	Not Published
Steering Flow	8.2 gpm	5.3 gpm
Implement Flow	8.2 gpm	9.3 gpm
Total Hydraulic Flow	16.50 gpm	14.6 gpm
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.50 gpm	14.6 gpm
No. of Optional Remote Valves	1	2
No. of Standard Remote Valves	1	1
▶PTO & Hitch
PTO Rear	540 rpm	540/540E rpm
PTO Type	Independent	Independent
Lift Control Type	Position with Draft Control	Not Published
Hitch Lift Capacity	3,177 lbs (at 24 in)	3,190 lb
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I & II
Hitch Lift Capacity (at 24”)	3,177 lbs	2,750 lb
▶Tire Options
R3 Turf - Rear	21.5lx16.1	44 x 18 - 20.0
R3 Turf - Front	29x12.5-15	27.0 - 10.5
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	14.9-24	4.6 gal - 24.0
R4 Industrial - Front	10-16.5	10.0 - 16.5
R1 Agricultural - Rear	13.6-24	14.9 - 24.0
R1 Agricultural - Front	8.0-16	8.0 - 16.0
▶Fluid Capacity
Coolant Capacity	2.0 gal	Not Published
Crankcase Capacity	1.58 gal	Not Published
Fuel Tank Capacity	14.8 gal	13.2 gal
Front Axle Fluid Capacity	1.8 gal	Not Published
Transmission / Hydraulic System Capacity	14.53 gal	Not Published
▶Loader & Attachments
Loader Lift Height	108.3 in	113 in
Loader Breakout Force	3,727 lb	3,047 lb
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	YL605: Skid steer quick attach
Loader Lift Capacity (Full Height)	2,761 lb	2,500 lb (pivot pin)
▶Transmission & Drivetrain
Clutch	Dry Type Single Stage	Dry single
No. of Speeds	24X24	8F/8R
Transmission Type	Synchro Shuttle	Synchronized shuttle shift
Max Travel Speed (Forward)	15.71 mph	17.7 mph
Max Travel Speed (Reverse)	13.96 mph	Not Published
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Not Published
▶Chassis, Steering & Controls
Brakes	Wet Multi Disc	Not Published
Steering	Hydrostatic Power Steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable Seat	Suspension seat
▶Dimensions & Maneuverability
Wheelbase	75.6 in	74.8 in
Overall Width	65.6 in	70.9 in (with R4 tires)
Ground Clearance	13.7 in	15.5 in
Height to Top of ROPS	Not Applicable	98 in (with R4 tires)
Height to Top of Cab Model	94.1 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	9.81 ft (2.99 m)	11.5 ft (3.5 m)
Overall Length with 3-Point Hitch	139.6 in	133.6 in (with 3PH and R4 tires)
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet

Find a KIOTI dealer near you→Find a dealer near you→

Kioti NX4510C vs Yanmar YM347: Quick Answers

Which has more horsepower, the Kioti NX4510C or the Yanmar YM347?

The Yanmar YM347 leads on engine hp at 46 hp hp, compared to 45 hp hp for the Kioti NX4510C.

Which has more PTO horsepower, the Kioti NX4510C or the Yanmar YM347?

The Kioti NX4510C leads on pto hp at 37.6 hp hp, compared to 35.5 hp hp for the Yanmar YM347.

Which is heavier, the Kioti NX4510C or the Yanmar YM347?

The Yanmar YM347 leads on weight at 5,129 lb lb, compared to 4,342 lb lb for the Kioti NX4510C.

Which has more loader lift capacity, the Kioti NX4510C or the Yanmar YM347?

The Kioti NX4510C leads on loader lift at 2,761 lb lb, compared to 2,500 lb lb for the Yanmar YM347.

Which has more three-point hitch lift capacity, the Kioti NX4510C or the Yanmar YM347?

The Kioti NX4510C leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,750 lb lb for the Yanmar YM347.
