Kioti NX5010 vs Kioti NX5010C

Across 9 measurable specs, the Kioti NX5010C leads 1 categories to 0 (8 tied). Machine pages: Kioti NX5010 and Kioti NX5010C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

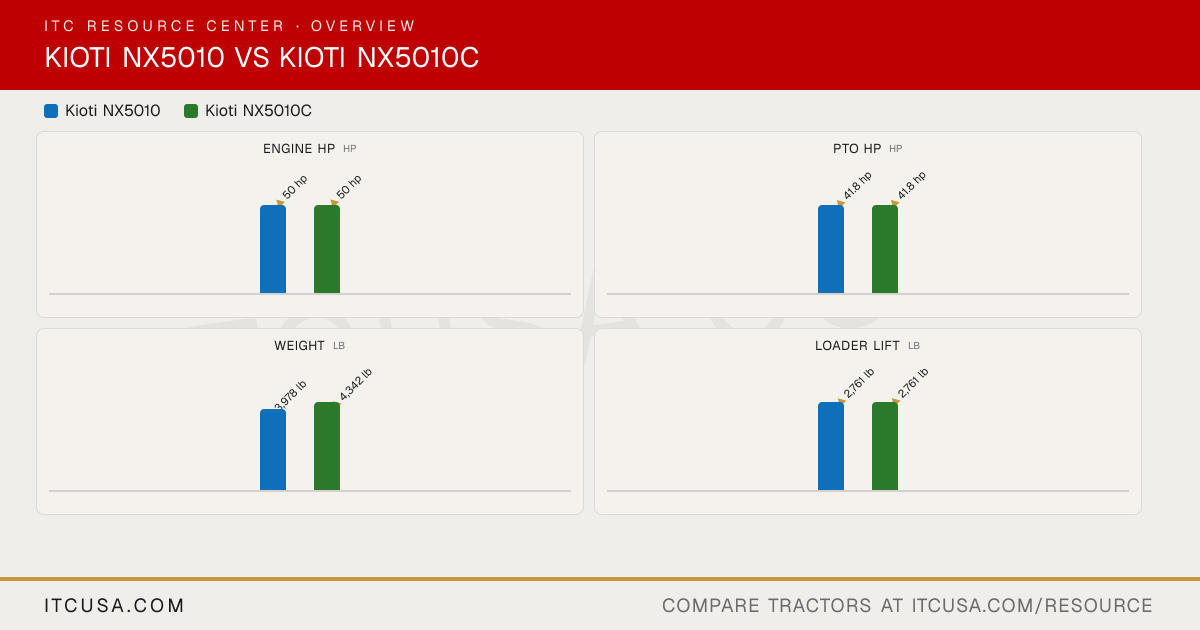

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX5010	KiotiNX5010C

▶Engine
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Model	3F183T	3F183T
Engine Type	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	50 hp	50 hp
PTO Power	41.8 hp	41.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry type element	Dry type element
Fuel System	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)
Alternator	Not Published	Not Published
▶Hydraulics
Pump Type	Gear	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	8.2 gpm	8.2 gpm
Total Hydraulic Flow	16.5 gpm	16.5 gpm
Overall Hydraulic Pump Flow	16.5 gpm	16.5 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	1	1
▶Fluid Capacity
Fuel Tank Capacity	14.8 gal	14.8 gal
Coolant Capacity	2.0 gal	2.0 gal
Crankcase Capacity	1.58 gal	1.58 gal
Transmission / Hydraulic System Capacity	14.53 gal	14.53 gal
Front Axle Fluid Capacity	1.8 gal	1.8 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,538 lb	3,538 lb
Hitch Lift Capacity (at 24”)	3,177 lb	3,177 lb
Lift Control Type	Position with Draft Control	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	Synchro Shuttle	Synchro Shuttle
No. of Speeds	24x24	24x24
Max Travel Speed (Forward)	15.71 mph	15.71 mph
Max Travel Speed (Reverse)	13.96 mph	13.96 mph
Clutch	Dry Type Single Stage	Dry Type Single Stage
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Brakes	Wet Multi Disc	Wet Multi Disc
Seat Suspension & Adjustability	Adjustable Seat	Adjustable Seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	139.6 in	139.6 in
Overall Width	65.6 in	65.6 in
Wheelbase	75.6 in	75.6 in
Ground Clearance	13.8 in	13.8 in
Min. Turn Radius without Brakes	9.8 ft	9.8 ft
Height to Top of ROPS	103.1 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	94.1 in
▶Weight
Tractor Weight (Base)	3,978 lb	4,342 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	29-12.5-15	29-12.5-15
R3 Turf - Rear	21.5L-16.1	21.5L-16.1
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	14.9-24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	KL6010	KL6010
Loader Lift Height	KL6010: 108.3 in (to pivot pin)	KL6010: 108.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	KL6010: 2,761 lb (at pivot pin, max height)	KL6010: 2,761 lb (at pivot pin, max height)
Loader Breakout Force	KL6010: 3,727 lb (at pivot pin)	KL6010: 3,727 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a KIOTI dealer near you→

Kioti NX5010 vs Kioti NX5010C: Quick Answers

Which has more horsepower, the Kioti NX5010 or the Kioti NX5010C?

They are effectively tied: both machines are rated at 50 hp hp for engine hp.

Which has more PTO horsepower, the Kioti NX5010 or the Kioti NX5010C?

They are effectively tied: both machines are rated at 41.8 hp hp for pto hp.

Which is heavier, the Kioti NX5010 or the Kioti NX5010C?

The Kioti NX5010C leads on weight at 4,342 lb lb, compared to 3,978 lb lb for the Kioti NX5010.

Which has more loader lift capacity, the Kioti NX5010 or the Kioti NX5010C?

They are effectively tied: both machines are rated at 2,761 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kioti NX5010 or the Kioti NX5010C?

They are effectively tied: both machines are rated at 3,177 lb lb for 3-pt lift (24 in).
