Kioti NX5010 vs Kubota L4760

Across 7 measurable specs, the Kioti NX5010 leads 6 categories to 1. Machine pages: Kioti NX5010 and Kubota L4760.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

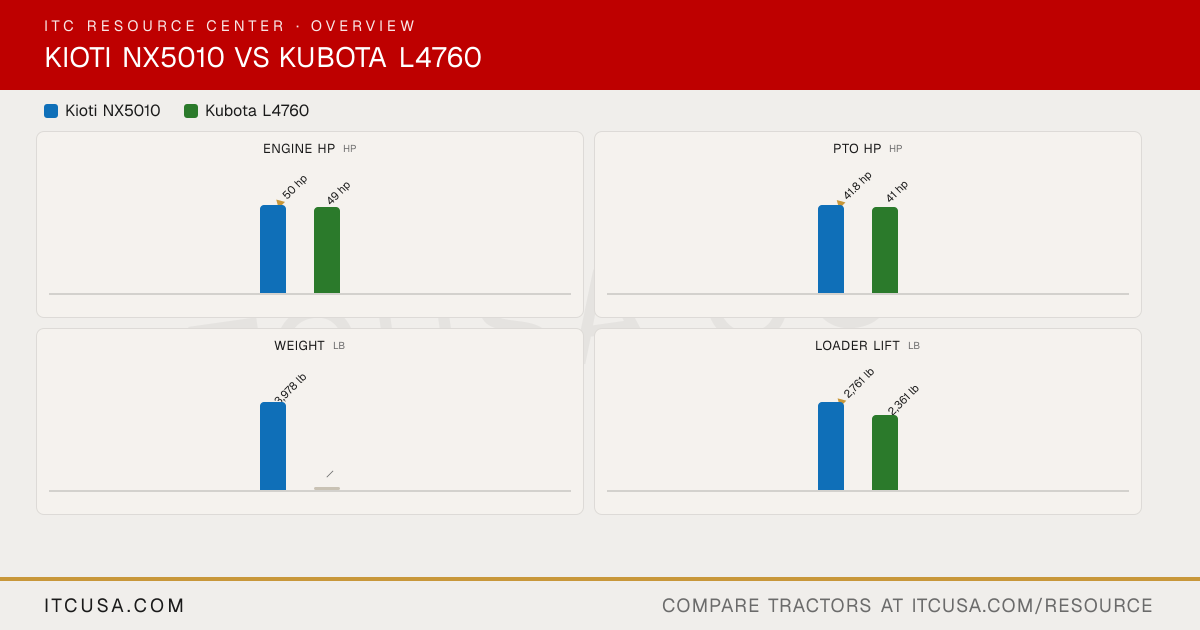

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX5010	KubotaL4760

▶Engine
Engine Manufacturer	KIOTI	Kubota
Engine Model	3F183T	V2403-CR-E4-GL5
Engine Type	3-cylinder, in-line vertical, water-cooled, 4-cycle, turbocharged, common rail diesel	Naturally aspirated, multi-valve, liquid-cooled diesel
No. of Cylinders	3	4
Displacement	111.4 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	50 hp	49 hp
PTO Power	41.8 hp	39.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry type element	Dry paper, dual element
Fuel System	Common Rail Diesel (CRDI)	Electronic CRS (Common Rail System)
Alternator	Not Published	40 A, 12 V
▶Hydraulics
Pump Type	Gear	Tandem pump - gear type
Implement Flow	Not Published	9.4 gpm
Steering Flow	Not Published	4.7 gpm
Total Hydraulic Flow	16.5 gpm	14.1 gpm
Overall Hydraulic Pump Flow	16.5 gpm	14.1 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	None standard (up to 3 optional)
No. of Optional Remote Valves	1	Optional, up to 3: double-acting valve or float detent valve, any position
▶Fluid Capacity
Fuel Tank Capacity	14.8 gal	13.5 gal
Coolant Capacity	2.0 gal	8.7 qt
Crankcase Capacity	1.58 gal	8.7 qt
Transmission / Hydraulic System Capacity	14.53 gal	11.4 gal
Front Axle Fluid Capacity	1.8 gal	8.9 qt
▶PTO & Hitch
PTO Type	Independent	Live independent (hydraulic clutch)
PTO Rear	540 rpm	540 rpm @ 2475 engine rpm
Mid-PTO Availability	Optional (2,000 rpm)	Optional
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	3,538 lb	3,858 lb
Hitch Lift Capacity (at 24”)	3,177 lb	2,756 lb
Lift Control Type	Position with Draft Control	Position control
▶Transmission & Drivetrain
Transmission Type	Synchro Shuttle	Hydrostatic
No. of Speeds	24x24	3-range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	15.71 mph	16.8 mph
Max Travel Speed (Reverse)	13.96 mph	15.1 mph
Clutch	Dry Type Single Stage	Not Published
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Brakes	Wet Multi Disc	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Adjustable Seat	Deluxe suspension seat with swivel; Air-Ride seat (optional)
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,655 lb (max. drawbar vertical load)	1,433 lb
▶Dimensions & Maneuverability
Overall Width	65.6 in	66.5 in
Wheelbase	75.6 in	74.6 in
Ground Clearance	13.8 in	14.4 in
Min. Turn Radius without Brakes	9.8 ft	8.9 ft (with brake applied)
Height to Top of ROPS	103.1 in	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
Overall Length	139.6 in (with 3-point hitch)	129.5 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,978 lb (with AG tires)	3,847 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Agricultural, Turf, Industrial	R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial
R1 Agricultural - Front	8-16	8.3-16
R1 Agricultural - Rear	13.6-24	14.9-24
R3 Turf - Front	29-12.5-15	29x12.50-15
R3 Turf - Rear	21.5L-16.1	44x18-20
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	14.9-24	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional)
Loader Model	KL6010	LA1105
Loader Lift Height	KL6010: 108.3 in (to pivot pin)	Not Published
Loader Lift Capacity (Full Height)	KL6010: 2,761 lb (at pivot pin, max height)	Not Published
Loader Breakout Force	KL6010: 3,727 lb (at pivot pin)	LA555: 2,030 lb; LA805: 2,549 lb; LA1055: 3,171 lb
▶Warranty
Warranty Length & Coverage	Non-commercial: basic 2 years, powertrain 72 months, unlimited hours, parts and labor	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a KIOTI dealer near you→Find a Kubota dealer near you→

Kioti NX5010 vs Kubota L4760: Quick Answers

Which has more horsepower, the Kioti NX5010 or the Kubota L4760?

The Kioti NX5010 leads on engine hp at 50 hp hp, compared to 49 hp hp for the Kubota L4760.

Which has more PTO horsepower, the Kioti NX5010 or the Kubota L4760?

The Kioti NX5010 leads on pto hp at 41.8 hp hp, compared to 39.5 hp hp for the Kubota L4760.

Which is heavier, the Kioti NX5010 or the Kubota L4760?

The Kioti NX5010 leads on weight at 3,978 lb lb, compared to 3,847 lb lb for the Kubota L4760.

Which has more three-point hitch lift capacity, the Kioti NX5010 or the Kubota L4760?

The Kioti NX5010 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,756 lb lb for the Kubota L4760.
