Kioti NX5510 vs Kubota L5460

Across 8 measurable specs, the Kioti NX5510 leads 5 categories to 3. Machine pages: Kioti NX5510 and Kubota L5460.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

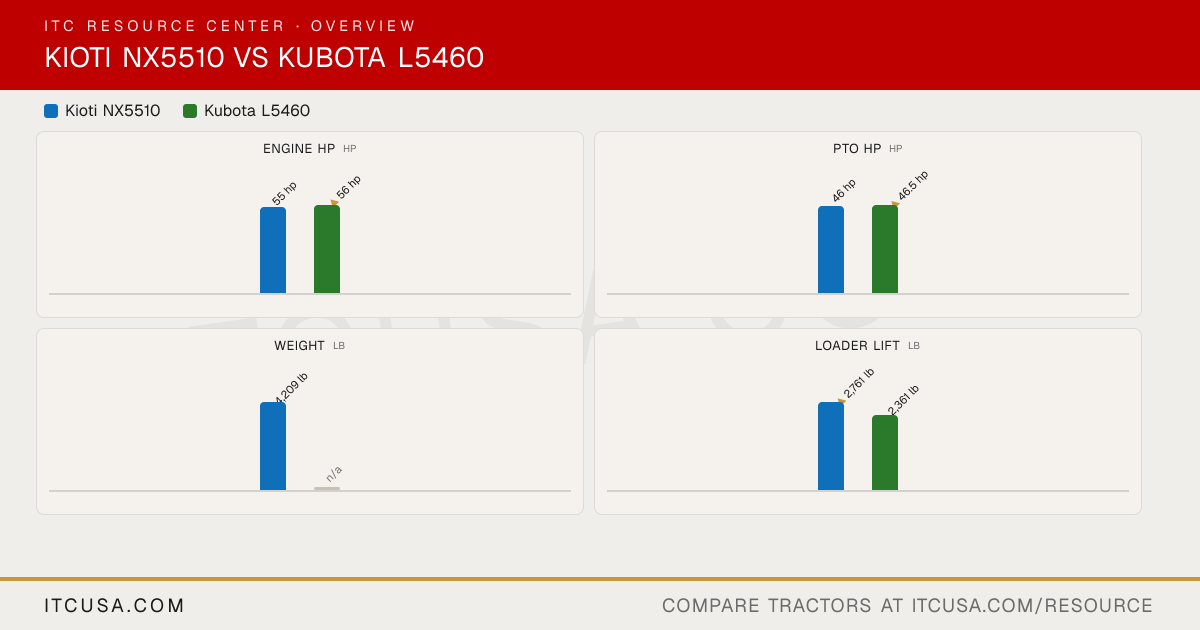

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX5510	KubotaL5460

▶Engine
PTO Power	46 hp	46.5 hp
Alternator	Not Published	45 A, 12 V
Air Cleaner	Not Published	Dry paper, dual element
Engine Type	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Common Rail Direct Injection (CRDI)	Electronic Common Rail System (CRS)
Displacement	111.4 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Liquid-cooled
Engine Manufacturer	KIOTI (Daedong)	Kubota
Engine Power (Gross)	55 hp	56 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	4,209 lb	Not Published
Weight with Cab and Loader	Not Applicable	Not Published
▶Warranty
Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Gear	Tandem pump - gear type
Steering Flow	8.2 gpm	4.7 gpm
Implement Flow	8.2 gpm	9.4 gpm
Total Hydraulic Flow	16.50 gpm	14.1 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.50 gpm	14.1 gpm
No. of Optional Remote Valves	1	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	1	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 rpm @ 2400 engine rpm
PTO Type	Independent	Live independent (hydraulic clutch)
Lift Control Type	Position with Draft Control	Position control
Hitch Lift Capacity	3,177 lbs (at 24 in)	3,858 lb
Mid-PTO Availability	Optional (2,000 rpm)	Optional
Category, 3-Point Hitch	Category I	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	3,177 lbs	2,976 lb
▶Tire Options
R3 Turf - Rear	21.5lx16.1	44X18-20
R3 Turf - Front	29x12.5-15	29X12.50-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	17.5-24	4.6 gal-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-28	14.9-26; 13.6-28
R1 Agricultural - Front	9.5-18	9.5-16
▶Fluid Capacity
Coolant Capacity	2.0 gal	8.7 qt
Crankcase Capacity	1.58 gal	9.9 qt
Fuel Tank Capacity	14.8 gal	13.5 gal
Front Axle Fluid Capacity	1.8 gal	Not Published
Transmission / Hydraulic System Capacity	14.53 gal	11.9 gal
▶Loader & Attachments
Loader Lift Height	108.3 in	112.7 in
Loader Breakout Force	3,727 lb	3171 lb (14107 N)
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	2,761 lb	2361 lb
▶Transmission & Drivetrain
Clutch	Dry Type Single Stage	N/A
No. of Speeds	24X24	3-range, 6 speeds (H-DS), infinitely variable in each
Transmission Type	Synchro Shuttle	Hydrostatic transmission
Max Travel Speed (Forward)	17.35 mph	16.8 mph
Max Travel Speed (Reverse)	15.42 mph	15.2 mph
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Rear differential lock, standard
▶Chassis, Steering & Controls
Brakes	Wet Multi Disc	Wet disc type, mechanically activated
Steering	Hydrostatic Power Steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable Seat	Not Published
▶Dimensions & Maneuverability
Wheelbase	75.6 in	75.4 in
Overall Width	65.6 in	67.3 in
Ground Clearance	15.7 in	15.4 in
Height to Top of ROPS	103.1 in	HST (4WD): 98.0 in; HSTC (4WD, CAB): Not Applicable
Height to Top of Cab Model	Not Applicable	HST (4WD): Not Applicable; HSTC (4WD, CAB): 92.5 in
Height to Top of ROPS (folded)	Not Published	HST (4WD): 92.5 in; HSTC (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	9.97 ft (3.04 m)	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	139.6 in	135.0 in
▶ITC Company Accessories
Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00 Messick's partnership, staged by migration 0118

Find a KIOTI dealer near you→Find a Kubota dealer near you→

Kioti NX5510 vs Kubota L5460: Quick Answers

Which has more horsepower, the Kioti NX5510 or the Kubota L5460?

The Kubota L5460 leads on engine hp at 56 hp hp, compared to 55 hp hp for the Kioti NX5510.

Which has more PTO horsepower, the Kioti NX5510 or the Kubota L5460?

The Kubota L5460 leads on pto hp at 46.5 hp hp, compared to 46 hp hp for the Kioti NX5510.

Which has more loader lift capacity, the Kioti NX5510 or the Kubota L5460?

The Kioti NX5510 leads on loader lift at 2,761 lb lb, compared to 2,361 lb lb for the Kubota L5460.

Which has more three-point hitch lift capacity, the Kioti NX5510 or the Kubota L5460?

The Kioti NX5510 leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,976 lb lb for the Kubota L5460.
