Which has more horsepower, the Kioti NX5510C or the Kioti NX5510H?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Kioti NX5510C or the Kioti NX5510H?

The Kioti NX5510C leads on pto hp at 46 hp hp, compared to 43.1 hp hp for the Kioti NX5510H.

Which is heavier, the Kioti NX5510C or the Kioti NX5510H?

The Kioti NX5510C leads on weight at 4,562 lb lb, compared to 4,198 lb lb for the Kioti NX5510H.

Which has more loader lift capacity, the Kioti NX5510C or the Kioti NX5510H?

They are effectively tied: both machines are rated at 2,761 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kioti NX5510C or the Kioti NX5510H?

They are effectively tied: both machines are rated at 3,177 lb lb for 3-pt lift (24 in).

Kioti NX5510C vs Kioti NX5510H

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, this matchup is a dead heat: 2 categories to the Kioti NX5510C, 2 to the Kioti NX5510H, 5 tied. Machine pages: Kioti NX5510C and Kioti NX5510H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti NX5510C	Kioti NX5510H
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	▲ 46 hp	43.1 hp
Weight (lb)	▲ 4,562 lb	4,198 lb
Loader Lift (lb)	2,761 lb	2,761 lb
3-Pt Lift (24 in) (lb)	3,177 lb	3,177 lb
Lift Height (in)	108.3 in	108.3 in
Breakout Force (lbf)	3,727 lbf	3,727 lbf
Hydraulic Flow (gpm)	16.5 gpm	▲ 17.9 gpm
Travel Speed (mph)	17.4 mph	▲ 18.3 mph

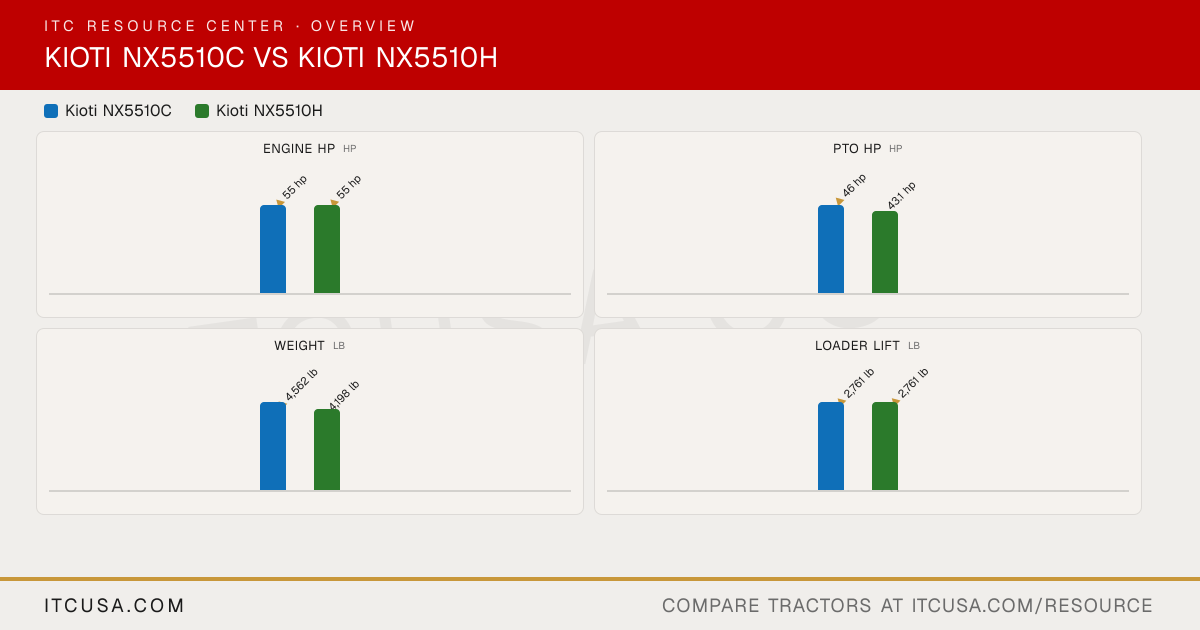

The headline numbers at a glance.

Kioti NX5510CKioti NX5510H

Engine HPhp

▲55 hp

PTO HPhp

▲46 hp

43.1 hp

Weightlb

▲4,562 lb

4,198 lb

Loader Liftlb

▲2,761 lb

3-Pt Lift (24 in)lb

▲3,177 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX5510C	KiotiNX5510H


PTO Power	46 hp	43.1 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI
Fuel System	Common Rail Direct Injection (CRDI)	Common Rail Direct Injection (CRDI)
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	KIOTI (Daedong)	KIOTI (Daedong)
Engine Power (Gross)	55 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Applicable	4,198 lb
Weight with Cab and Loader	4,562 lb	Not Applicable

Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)

Pump Type	Gear	Gear
Steering Flow	8.2 gpm	8.2 gpm
Implement Flow	8.2 gpm	9.6 gpm
Total Hydraulic Flow	16.50 gpm	17.90 gpm
Hydraulic System Type	Open Center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.50 gpm	17.90 gpm
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	1	1

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position with Draft Control	Position with Draft Control
Hitch Lift Capacity	3,177 lbs (at 24 in)	3,177 lbs (at 24 in)
Mid-PTO Availability	Optional (2,000 rpm)	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	3,177 lbs	3,177 lbs

R3 Turf - Rear	21.5lx16.1	21.5lx16.1
R3 Turf - Front	29x12.5-15	29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5-24	17.5-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	13.6-28	13.6-28
R1 Agricultural - Front	9.5-18	9.5-16

Coolant Capacity	2.0 gal	2.0 gal
Crankcase Capacity	1.58 gal	1.58 gal
Fuel Tank Capacity	14.8 gal	14.8 gal
Front Axle Fluid Capacity	1.8 gal	1.8 gal
Transmission / Hydraulic System Capacity	14.53 gal	11.89 gal

Loader Lift Height	108.3 in	108.3 in
Loader Breakout Force	3,727 lb	3,727 lb
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Lift Capacity (Full Height)	2,761 lb	2,761 lb

Clutch	Dry Type Single Stage	None
No. of Speeds	24X24	3 Range
Transmission Type	Synchro Shuttle	Hydrostatic
Max Travel Speed (Forward)	17.35 mph	18.26 mph
Max Travel Speed (Reverse)	15.42 mph	18.26 mph
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Differential Lock: Rear (Standard)

Brakes	Wet Multi Disc	Wet Multi Disc
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable Seat	Adjustable Seat

Wheelbase	75.6 in	75.6 in
Overall Width	65.6 in	65.7 in
Ground Clearance	15.7 in	15.7 in
Height to Top of ROPS	Not Applicable	103.1 in
Height to Top of Cab Model	94.1 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	9.97 ft (3.04 m)	9.97 ft (3.04 m)
Overall Length with 3-Point Hitch	139.6 in	139.6 in

Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Kioti NX5510C vs Kioti NX5510H: Quick Answers

Which has more horsepower, the Kioti NX5510C or the Kioti NX5510H?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Kioti NX5510C or the Kioti NX5510H?: The Kioti NX5510C leads on pto hp at 46 hp hp, compared to 43.1 hp hp for the Kioti NX5510H.
Which is heavier, the Kioti NX5510C or the Kioti NX5510H?: The Kioti NX5510C leads on weight at 4,562 lb lb, compared to 4,198 lb lb for the Kioti NX5510H.
Which has more loader lift capacity, the Kioti NX5510C or the Kioti NX5510H?: They are effectively tied: both machines are rated at 2,761 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Kioti NX5510C or the Kioti NX5510H?: They are effectively tied: both machines are rated at 3,177 lb lb for 3-pt lift (24 in).
