| Engine Manufacturer | KIOTI (Daedong) | Kubota |
|---|
| Engine Model | 3F183T | V3307-DI |
|---|
| Engine Type | KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI | 4-cylinder inline, direct injected diesel |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 111.4 in³ | 203 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|

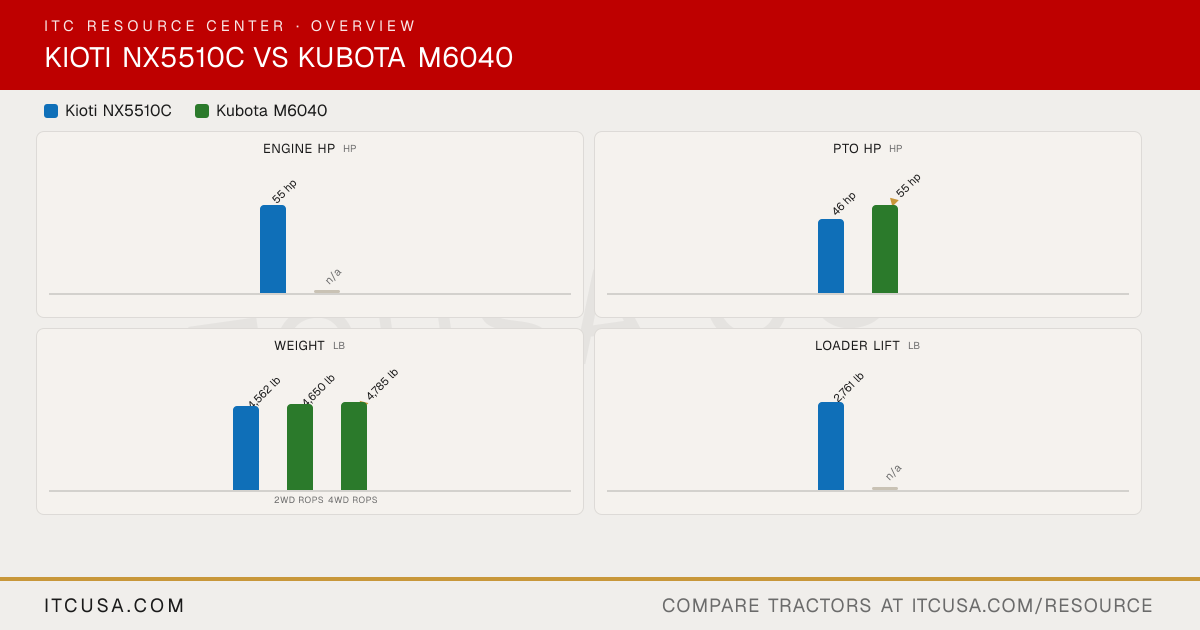

| Engine Power (Gross) | 55 hp | Not Published |
|---|
| PTO Power | 46 hp | 55 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 2 |
|---|
| Cooling System Type | Water-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry type element | 8 in dry, dual element |
|---|
| Fuel System | Common Rail Direct Injection (CRDI) | Direct injection |
|---|
| Alternator | Not Published | ROPS: 45 A, 12 V; Cab: 60 A, 12 V |
|---|
|
|---|
| Pump Type | Gear | Not Published |
|---|
| Implement Flow | 8.2 gpm | 11.0 gpm |
|---|
| Steering Flow | 8.2 gpm | 6.1 gpm |
|---|
| Total Hydraulic Flow | 16.5 gpm | 17.1 gpm (11.0 + 6.1, computed) |
|---|
| Overall Hydraulic Pump Flow | 16.5 gpm | 17 gpm |
|---|
| Hydraulic System Type | Open Center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 11.0 gpm |
|---|
| No. of Standard Remote Valves | 1 | 1 |
|---|
| No. of Optional Remote Valves | 1 | 2nd and 3rd optional |
|---|
|
|---|
| Fuel Tank Capacity | 14.8 gal | ROPS: 18.5 gal; Cab: 29.1 gal |
|---|
| Coolant Capacity | 2.0 gal | 8.5 qt |
|---|
| Crankcase Capacity | 1.58 gal | 11.6 qt |
|---|
| Transmission / Hydraulic System Capacity | 14.53 gal | 10.6 gal |
|---|
| Front Axle Fluid Capacity | 1.8 gal | 8.5 qt |
|---|
|
|---|
| PTO Type | Independent | Live independent PTO, hydraulically operated wet clutch with PTO brake |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Optional (2,000 rpm) | Not Published |
|---|
| Category, 3-Point Hitch | Category I & II | Category II |
|---|
| Hitch Lift Capacity | 3,538 lb | 4189 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,177 lb | 3307 lb |
|---|
| Lift Control Type | Position with Draft Control | Position, draft (top link sensing) and mix control |
|---|
|
|---|
| Transmission Type | Synchro Shuttle | Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models |
|---|
| No. of Speeds | 24x24 | 8F/8R (12F/12R with optional creep) |
|---|
| Max Travel Speed (Forward) | 17.35 mph | 18 mph |
|---|
| Max Travel Speed (Reverse) | 15.42 mph | 18.0 mph |
|---|
| Clutch | Dry Type Single Stage | Dry single plate (synchro shuttle) / multiple wet disks (hydraulic shuttle) |
|---|
| Differential Lock & Limited Slip Options | Differential Lock: Rear (Standard) | Rear differential lock (bevel gears) |
|---|
|
|---|
| Frame Type | Not Published | Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional |
|---|
| Steering | Hydrostatic Power Steering | Hydrostatic power steering |
|---|
| Brakes | Wet Multi Disc | Multiple wet disc, mechanical |
|---|
| Seat Suspension & Adjustability | Adjustable Seat | Reclining, fully adjustable seat (height, weight, fore and aft, arm rests) with retractable seat belt; optional air ride seat suspension (cab) |
|---|
| Front Axle Type | Not Published | 4WD: Bevel gear type with Easy-To-Shift 4WD engagement while rolling |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | 1,655 lb (max. drawbar vertical load) | 2200 lb |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 139.6 in | 2WD: 140.4 in; 4WD: 135.6 in |
|---|
| Overall Width | 65.7 in | 73.2 in |
|---|
| Wheelbase | 75.6 in | 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in |
|---|
| Ground Clearance | 15.7 in | 15.4 in |
|---|
| Min. Turn Radius without Brakes | 10.0 ft | 2WD: 11.2 ft; 4WD: 11.8 ft |
|---|
| Height to Top of ROPS | Not Published | 96.9 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 94.1 in | 99.8 in |
|---|
|
|---|
| Tractor Weight (Base) | 4,562 lb | 2WD ROPS: 4650 lb; 4WD ROPS: 4785 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural, R3 Turf, R4 Industrial | Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear |
|---|
| R1 Agricultural - Front | 9.5-16 | 2WD: 7.50-16; 4WD: 9.5-24 |
|---|
| R1 Agricultural - Rear | 16.9-24 | 16.9-28 |
|---|
| R3 Turf - Front | 29-12.5-15 | 2WD: 29x12.5-15 or 27x9.5-15 |
|---|
| R3 Turf - Rear | 21.5L-16.1 | 2WD: 21.5L-16.1 or 16.9-24 |
|---|
| R4 Industrial - Front | 10-16.5 | 12.5/80-18 (4WD) |
|---|
| R4 Industrial - Rear | 17.5-24 | 16.9-24 (4WD) |
|---|
|
|---|
| Quick Attach Loader System | Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator | LA1153: two-lever quick coupler |
|---|
| Loader Model | KL6010 | LA1153 |
|---|
| Loader Lift Height | KL6010: 108.3 in (to pivot pin) | LA1153 height position: 132.7 in; LA1153 power position: 117.2 in |
|---|
| Loader Lift Capacity (Full Height) | KL6010: 2,761 lb (at pivot pin, max height) | Not Published |
|---|
| Loader Breakout Force | KL6010: 3,727 lb (at pivot pin) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor | Not Published |
|---|
|
|---|
