Which has more horsepower, the Kioti NX5510C or the TYM 5520?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Kioti NX5510C or the TYM 5520?

The Kioti NX5510C leads on pto hp at 46 hp hp, compared to 44 hp hp for the TYM 5520.

Which has more loader lift capacity, the Kioti NX5510C or the TYM 5520?

The Kioti NX5510C leads on loader lift at 2,761 lb lb, compared to 2,701 lb lb for the TYM 5520.

Which has more three-point hitch lift capacity, the Kioti NX5510C or the TYM 5520?

The Kioti NX5510C leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,425 lb lb for the TYM 5520.

Kioti NX5510C vs TYM 5520

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kioti NX5510C leads 5 categories to 1 (2 tied). Machine pages: Kioti NX5510C and TYM 5520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti NX5510C	TYM 5520
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	▲ 46 hp	44 hp
Weight (lb)	4,562 lb	—
Loader Lift (lb)	▲ 2,761 lb	2,701 lb
3-Pt Lift (24 in) (lb)	▲ 3,177 lb	2,425 lb
Lift Height (in)	▲ 108.3 in	106.6 in
Breakout Force (lbf)	▲ 3,727 lbf	3,660 lbf
Hydraulic Flow (gpm)	16.5 gpm	16.5 gpm
Travel Speed (mph)	17.4 mph	▲ 19.5 mph

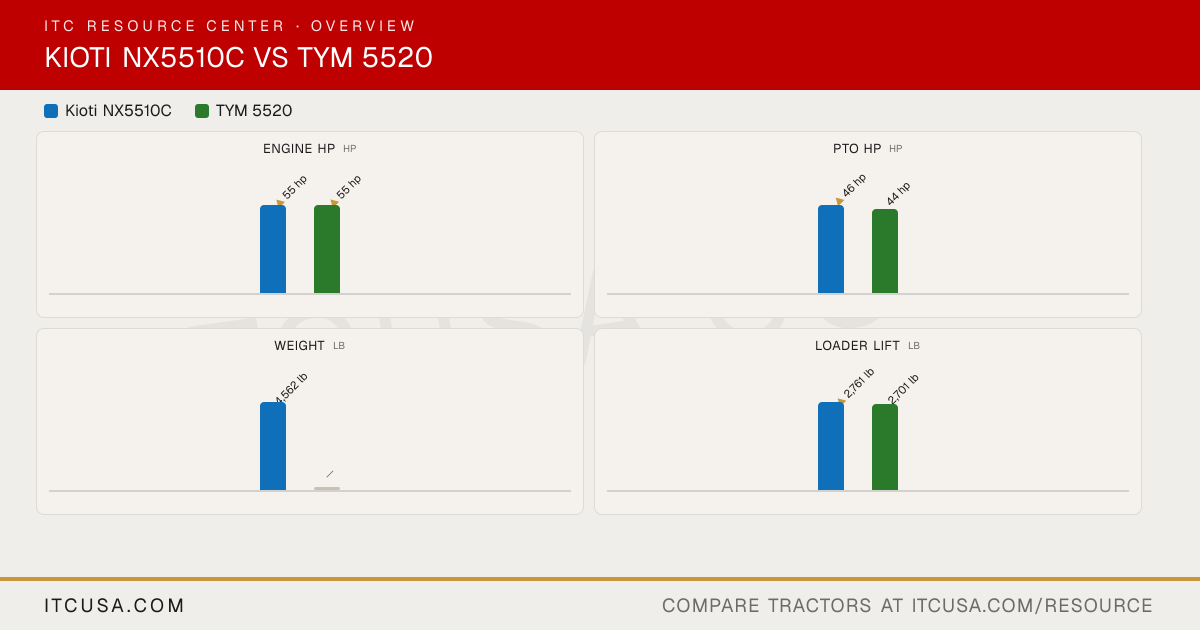

The headline numbers at a glance.

Kioti NX5510CTYM 5520

Engine HPhp

▲55 hp

PTO HPhp

▲46 hp

44 hp

Weightlb

4,562 lb

—

Loader Liftlb

▲2,761 lb

2,701 lb

3-Pt Lift (24 in)lb

▲3,177 lb

2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiNX5510C	TYM5520


PTO Power	46 hp	44 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry element
Engine Type	In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI	4-cylinder, turbocharged diesel
Fuel System	Common Rail Direct Injection (CRDI)	IDI
Displacement	111.4 in³	139.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	KIOTI (Daedong)	TYM
Engine Power (Gross)	55 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Applicable	Not Published
Weight with Cab and Loader	4,562 lb	Not Applicable

Warranty Length & Coverage	Tractors (Non-Commercial Application): 24 months parts & labor; Tractors (Non-Commercial Application and driveline): 48 months parts & labor; eligible purchases may receive total 6 years (72 months) extended powertrain warranty coverage (limited time)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear	Dual gear pump
Steering Flow	8.2 gpm	5.2 gpm
Implement Flow	8.2 gpm	11.4 gpm
Total Hydraulic Flow	16.50 gpm	16.5 gpm
Hydraulic System Type	Open Center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	16.50 gpm	16.5 gpm
No. of Optional Remote Valves	1	Up to 4
No. of Standard Remote Valves	1	0

PTO Rear	540 rpm	540/750 rpm
PTO Type	Independent	Independent
Lift Control Type	Position with Draft Control	Position control
Hitch Lift Capacity	3,177 lbs (at 24 in)	3,306 lb
Mid-PTO Availability	Optional (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	3,177 lbs	2,425 lb

R3 Turf - Rear	21.5lx16.1	41x14-20 / 44x18-20
R3 Turf - Front	29x12.5-15	27x8.5-15 / 29x12.5-15
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	17.5-24	17.5Lx24
R4 Industrial - Front	10-16.5	12-16.5
R1 Agricultural - Rear	13.6-28	13.6-26
R1 Agricultural - Front	9.5-18	9.5-16

Coolant Capacity	2.0 gal	6.2 qt
Crankcase Capacity	1.58 gal	4.8 qt
Fuel Tank Capacity	14.8 gal	11.8 gal
Front Axle Fluid Capacity	1.8 gal	6.8 qt
Transmission / Hydraulic System Capacity	14.53 gal	HST: 11.1 gal; Gear: 10.3 gal

Loader Lift Height	108.3 in	106.6 in
Loader Breakout Force	3,727 lb	3,660 lb
Quick Attach Loader System	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator	BL200: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	2,761 lb	2,701 lb

Clutch	Dry Type Single Stage	Dry single type (N/A)
No. of Speeds	24X24	HST: 4-Range; Gear: F16 x R16 (4-Range)
Transmission Type	Synchro Shuttle	HST: Hydrostatic (HST); Gear: Synchromesh
Max Travel Speed (Forward)	17.35 mph	HST: 19.5 mph; Gear: 16 mph
Max Travel Speed (Reverse)	15.42 mph	Not Published
Differential Lock & Limited Slip Options	Differential Lock: Rear (Standard)	Differential lock system

Brakes	Wet Multi Disc	Wet, multi disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable Seat	Suspension seat

Wheelbase	75.6 in	71.1 in
Overall Width	65.6 in	64.9 in
Ground Clearance	15.7 in	15.5 in
Height to Top of ROPS	Not Applicable	98.4 in
Height to Top of Cab Model	94.1 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	9.97 ft (3.04 m)	L: 128.7 in; R: 126.0 in
Overall Length with 3-Point Hitch	139.6 in	127.4 in

Accessories that fit	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 TYM 20 Series Protection Package $2150.00

Kioti NX5510C vs TYM 5520: Quick Answers

Which has more horsepower, the Kioti NX5510C or the TYM 5520?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Kioti NX5510C or the TYM 5520?: The Kioti NX5510C leads on pto hp at 46 hp hp, compared to 44 hp hp for the TYM 5520.
Which has more loader lift capacity, the Kioti NX5510C or the TYM 5520?: The Kioti NX5510C leads on loader lift at 2,761 lb lb, compared to 2,701 lb lb for the TYM 5520.
Which has more three-point hitch lift capacity, the Kioti NX5510C or the TYM 5520?: The Kioti NX5510C leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,425 lb lb for the TYM 5520.
