Across 5 measurable specs, this matchup is a dead heat: 2 categories to the Kioti PX1153, 2 to the New Holland Workmaster 110 PLUS, 1 tied. Machine pages: Kioti PX1153 and New Holland Workmaster 110 PLUS .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kioti PX1153 New Holland Workmaster 110 PLUS Engine HP (hp) 110 hp 110 hp PTO HP (hp) 92.2 hp ▲ 93 hpWeight (lb) 9,064 lb n/a Loader Lift (lb) ▲ 4,190 lb3,882 lb 3-Pt Lift (24 in) (lb) 8,002 lb n/a Lift Height (in) 143.3 in ▲ 143.9 inBreakout Force (lbf) 8,310 lbf n/a Hydraulic Flow (gpm) ▲ 31.5 gpm21 gpm Travel Speed (mph) 24.9 mph n/a

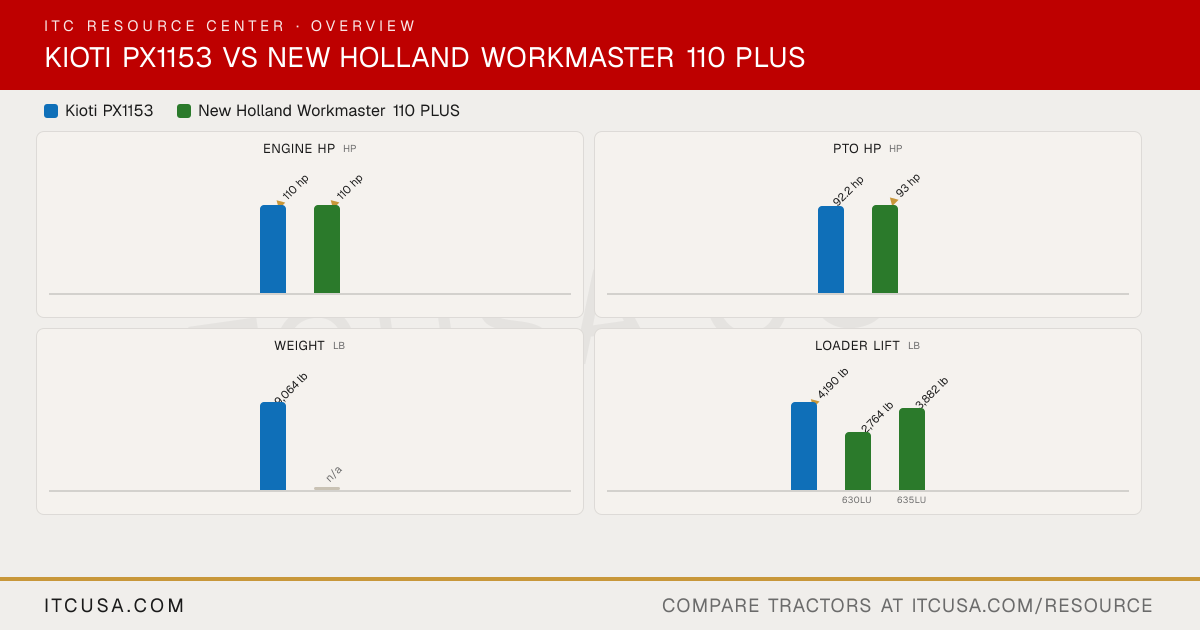

Overview Loader Work PTO Work
The headline numbers at a glance.
Kioti PX1153 New Holland Workmaster 110 PLUS
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Loader Lift lb
▲ 4,190 lb
2,764 lb
3,882 lb
630LU 635LU
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kioti PX1153 New Holland Workmaster 110 PLUS
▶ EngineEngine Manufacturer Doosan FPT Engine Model DL03-LEA07 F36 Engine Type 4-cylinder, in-line vertical, water-cooled diesel 4-cylinder No. of Cylinders 4 4 Displacement 208 in³ Not Published Rated Engine Speed 2200 rpm Not Published Engine Power (Gross) 110 hp 110 hp PTO Power 92.2 hp 93 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Not Published Air Cleaner Dual air cleaner Not Published Fuel System Not Published Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Not Published Implement Flow Not Published Not Published Steering Flow Not Published Not Published Total Hydraulic Flow 31.5 gpm 21 gpm Overall Hydraulic Pump Flow 31.5 gpm Not Published Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves 1 (third valve) Not Published ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 34.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Not Published PTO Rear 540 / 1000 rpm Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Not Published Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 8,002 lb Not Published Lift Control Type Position, draft, mixed control Not Published ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle, power shuttle type 12x12 electronic power shuttle No. of Speeds 32F/32R 12 forward / 12 reverse Max Travel Speed (Forward) 24.87 mph Not Published Max Travel Speed (Reverse) 24.69 mph Not Published Clutch Wet multi disc Not Published Differential Lock & Limited Slip Options Rear differential lock (standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Not Published Brakes Wet disc Not Published Seat Suspension & Adjustability Fully adjustable suspension swivel seat (deluxe cab) Air ride seat (standard); instructor seat available Front Axle Type 4WD, electric/hydraulic engagement Class 1.0 HD heavy-duty front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 168.9 in Not Published Overall Width 88.6 in Not Published Wheelbase 93.3 in Not Published Ground Clearance 19.5 in Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 109 in Not Published ▶ WeightTractor Weight (Base) 9,064 lb (with cab and ag tires; cab is standard) Not Published Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural: 13.6-24 front, 18.4-34 rear Not Published R1 Agricultural - Front 13.6-24 Not Published R1 Agricultural - Rear 18.4-34 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 90 in; dual lever quick attach, built-in parking stand Not Published Loader Model KL1153 630LU; 635LU Loader Lift Height KL1153: 143.3 in 143.9 in (630LU and 635LU) Loader Lift Capacity (Full Height) KL1153: 4,190 lb 630LU: 2,764 lb; 635LU: 3,882 lb (at max height, 31.5 in forward of the bucket pivot point) Loader Breakout Force KL1153: 8,310 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
Kioti PX1153 vs New Holland Workmaster 110 PLUS: Quick Answers
Which has more horsepower, the Kioti PX1153 or the New Holland Workmaster 110 PLUS? They are effectively tied: both machines are rated at 110 hp hp for engine hp.
Which has more PTO horsepower, the Kioti PX1153 or the New Holland Workmaster 110 PLUS? The New Holland Workmaster 110 PLUS leads on pto hp at 93 hp hp, compared to 92.2 hp hp for the Kioti PX1153.
Which has more loader lift capacity, the Kioti PX1153 or the New Holland Workmaster 110 PLUS? The Kioti PX1153 leads on loader lift at 4,190 lb lb, compared to 3,882 lb lb for the New Holland Workmaster 110 PLUS.
