Across 9 measurable specs, the Kioti PX1153 leads 6 categories to 3. Machine pages: Kioti PX1153 and TYM T1104 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

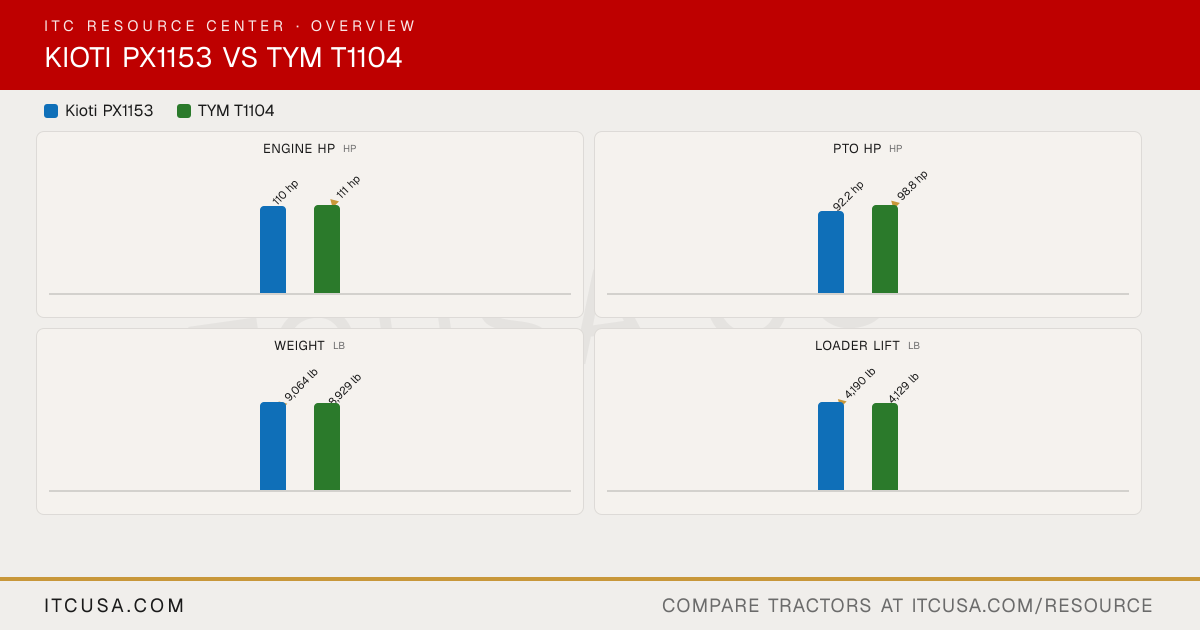

Category Verdict Spec Kioti PX1153 TYM T1104 Engine HP (hp) 110 hp ▲ 111 hpPTO HP (hp) 92.2 hp ▲ 98.8 hpWeight (lb) ▲ 9,064 lb8,929 lb Loader Lift (lb) ▲ 4,190 lb4,129 lb 3-Pt Lift (24 in) (lb) ▲ 8,002 lb5,490 lb Lift Height (in) 143.3 in ▲ 144.4 inBreakout Force (lbf) ▲ 8,310 lbf6,025 lbf Hydraulic Flow (gpm) ▲ 31.5 gpm21.3 gpm Travel Speed (mph) ▲ 24.9 mph24.6 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Kioti PX1153 TYM T1104
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
▶ EngineEngine Manufacturer Doosan Doosan Infracore Engine Model DL03-LEA07 D34P Engine Type 4-cylinder, in-line vertical, water-cooled diesel 4-cylinder, turbocharged diesel No. of Cylinders 4 4 Displacement 208 in³ 208 in³ Rated Engine Speed 2200 rpm 2300 rpm Engine Power (Gross) 110 hp 111 hp PTO Power 92.2 hp 98.8 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dual air cleaner Dual dry Fuel System Not Published CRDI Alternator Not Published 110 A, 12 V ▶ HydraulicsPump Type Gear Dual gear pump Implement Flow Not Published 14.1 gpm Steering Flow Not Published 7.1 gpm Total Hydraulic Flow 31.5 gpm 21.3 gpm Overall Hydraulic Pump Flow 31.5 gpm 21.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 3 No. of Optional Remote Valves 1 (third valve) Not Published ▶ Fluid CapacityFuel Tank Capacity 34.3 gal 29.1 gal (DEF 5.3 gal) Coolant Capacity Not Published 17.4 qt Crankcase Capacity Not Published 16.8 qt Transmission / Hydraulic System Capacity Not Published 19.8 gal Front Axle Fluid Capacity Not Published 18.4 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 1000 rpm 540/750/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published 6860 lb Hitch Lift Capacity (at 24”) 8,002 lb 5490 lb Lift Control Type Position, draft, mixed control Position/Draft/Elec ▶ Transmission & DrivetrainTransmission Type Synchronized shuttle, power shuttle type Power shuttle & Hi-Lo shift No. of Speeds 32F/32R F32 x R32 Max Travel Speed (Forward) 24.87 mph 24.6 mph Max Travel Speed (Reverse) 24.69 mph Not Published Clutch Wet multi disc Wet multi plate Differential Lock & Limited Slip Options Rear differential lock (standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Fully adjustable suspension swivel seat (deluxe cab) Not Published Front Axle Type 4WD, electric/hydraulic engagement MFWD (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 168.9 in 167.3 in Overall Width 88.6 in 86 in Wheelbase 93.3 in 90.6 in Ground Clearance 19.5 in 18.3 in Min. Turn Radius without Brakes Not Published 162 in Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 109 in 107 in ▶ WeightTractor Weight (Base) 9,064 lb (with cab and ag tires; cab is standard) 8929 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural: 13.6-24 front, 18.4-34 rear Not Published R1 Agricultural - Front 13.6-24 FSTR 380/85R24 TL (14.9R24) R1 Agricultural - Rear 18.4-34 FSTR 460/85R34 TL (18.4R34) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 90 in; dual lever quick attach, built-in parking stand Not Published Loader Model KL1153 TX110SL Loader Lift Height KL1153: 143.3 in TX110SL: 144.4 in Loader Lift Capacity (Full Height) KL1153: 4,190 lb TX110SL: 4,129 lb Loader Breakout Force KL1153: 8,310 lb TX110SL: 6,025 lb ▶ WarrantyWarranty Length & Coverage Not Published Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Kioti PX1153 vs TYM T1104: Quick Answers
Which has more horsepower, the Kioti PX1153 or the TYM T1104? The TYM T1104 leads on engine hp at 111 hp hp, compared to 110 hp hp for the Kioti PX1153.
Which has more PTO horsepower, the Kioti PX1153 or the TYM T1104? The TYM T1104 leads on pto hp at 98.8 hp hp, compared to 92.2 hp hp for the Kioti PX1153.
Which is heavier, the Kioti PX1153 or the TYM T1104? The Kioti PX1153 leads on weight at 9,064 lb lb, compared to 8,929 lb lb for the TYM T1104.
Which has more loader lift capacity, the Kioti PX1153 or the TYM T1104? The Kioti PX1153 leads on loader lift at 4,190 lb lb, compared to 4,129 lb lb for the TYM T1104.
Which has more three-point hitch lift capacity, the Kioti PX1153 or the TYM T1104? The Kioti PX1153 leads on 3-pt lift (24 in) at 8,002 lb lb, compared to 5,490 lb lb for the TYM T1104.
