Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage.
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Gear
Dual gear pump
Steering Flow
6.9 gpm
5.8 gpm
Implement Flow
11.0 gpm
10.3 gpm
Total Hydraulic Flow
17.9 gpm
16.1 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
17.9 gpm
16.1 gpm
No. of Optional Remote Valves
2
Not Published
No. of Standard Remote Valves
1
2
PTO Rear
540 / 540E rpm
540/750/1,000 rpm
PTO Type
Independent
Independent
Lift Control Type
Position, Draft, Mixed Control
Position/Draft/Mech
Hitch Lift Capacity
4,575 lb
4,270 lb
Mid-PTO Availability
Not Applicable
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity (at 24”)
3,594 lb
3,153 lb
R3 Turf - Rear
44X18.00-20
Not Published
R3 Turf - Front
31X13.50-15
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
18.4-24/8
Xtra Grip 18.4-24 NHS TL 8PR
R4 Industrial - Front
12.5/80-18
Trac Chief 10.5/80-18 NHS TL 10PR
R1 Agricultural - Rear
14.9-28/8
FSTR 380/85R28 TL (14.9R28)
R1 Agricultural - Front
9.5-20/8
FSTR 9.5 R20 TL
Coolant Capacity
2.40 gal
10.6 qt
Crankcase Capacity
2.20 gal
8.5 qt
Fuel Tank Capacity
22.50 gal
18.5 gal
Front Axle Fluid Capacity
2.20 gal
17.3 qt
Transmission / Hydraulic System Capacity
15.90 gal
11.0 gal
Loader Lift Height
133.9 in (to pivot pin)
124.8 in
Loader Breakout Force
5,359.0 lb (at pivot pins)
5,225 lb
Quick Attach Loader System
Built-in parking stand; designed to be quickly and easily attached and detached.
TX65SL: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)
3,384.0 lb (to full height at pivot pins)
3,122 lb
Clutch
Dry Single Plate
M: Dry Single Plate; PS: Wet Multi Plate
No. of Speeds
12 forward / 12 reverse
F24 x R24
Transmission Type
Manual: Synchro Shuttle
Synchro-shuttle
Max Travel Speed (Forward)
21.79 mph
20.2 mph
Max Travel Speed (Reverse)
21.42 mph
Not Published
Differential Lock & Limited Slip Options
Rear differential lock
Differential lock
Brakes
Wet Multi Disc
Wet disc
Steering
Hydrostatic Power Steering
Hydrostatic
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Adjustable Seat
Suspension seat
Wheelbase
82.70 in
84.6 in
Overall Width
70.90 in
72.4 in
Ground Clearance
16.50 in
17.1 in
Height to Top of ROPS
105.50 in
Not Applicable
Height to Top of Cab Model
Not Applicable
100.2 in
Height to Top of ROPS (folded)
Not Published
Not Applicable
Min. Turn Radius without Brakes
10.20 ft (3.12 m)
162.2 in
Overall Length with 3-Point Hitch
145.0 in
155.6 in

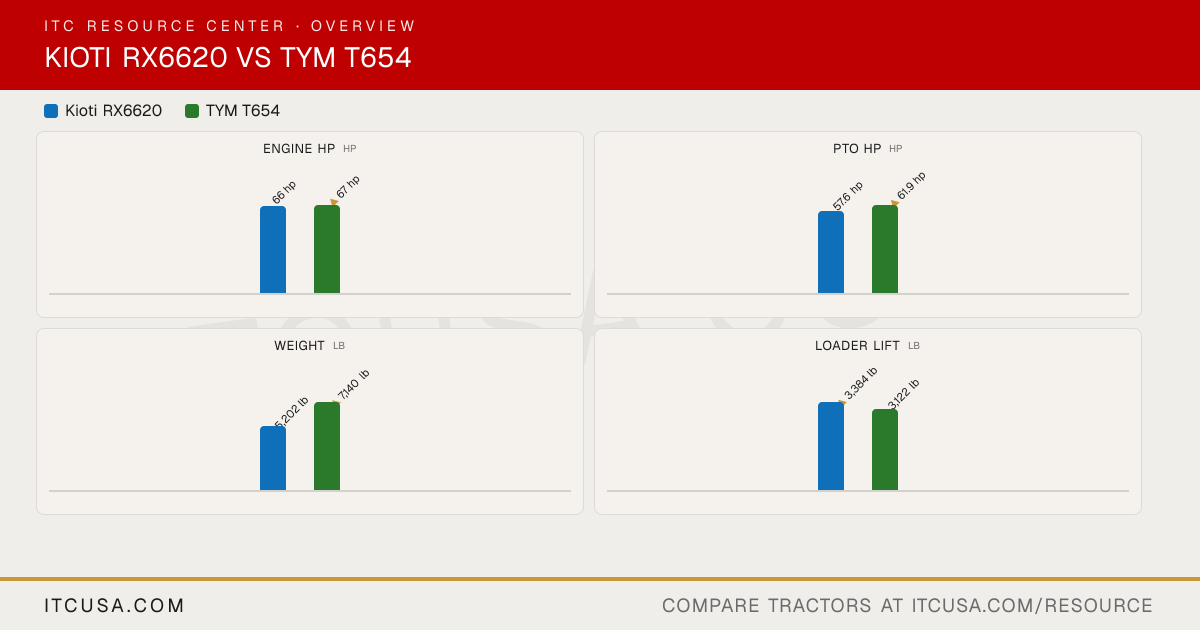

Kioti RX6620 vs TYM T654: Quick Answers
Which has more horsepower, the Kioti RX6620 or the TYM T654?
The TYM T654 leads on engine hp at 67 hp hp, compared to 66 hp hp for the Kioti RX6620.
Which has more PTO horsepower, the Kioti RX6620 or the TYM T654?
The TYM T654 leads on pto hp at 61.9 hp hp, compared to 57.6 hp hp for the Kioti RX6620.
Which is heavier, the Kioti RX6620 or the TYM T654?
The TYM T654 leads on weight at 7,140 lb lb, compared to 5,202 lb lb for the Kioti RX6620.
Which has more loader lift capacity, the Kioti RX6620 or the TYM T654?
The Kioti RX6620 leads on loader lift at 3,384 lb lb, compared to 3,122 lb lb for the TYM T654.
Which has more three-point hitch lift capacity, the Kioti RX6620 or the TYM T654?
The Kioti RX6620 leads on 3-pt lift (24 in) at 3,594 lb lb, compared to 3,153 lb lb for the TYM T654.
