Across 9 measurable specs, the Kioti RX6640PC leads 7 categories to 2. Machine pages: Kioti RX6640PC and TYM T5068 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kioti RX6640PC TYM T5068 Engine HP (hp) 66.4 hp ▲ 68 hpPTO HP (hp) 54.9 hp ▲ 62.7 hpWeight (lb) ▲ 6,814 lb5,556 lb Loader Lift (lb) ▲ 3,384 lb3,122 lb 3-Pt Lift (24 in) (lb) ▲ 4,328 lb3,153 lb Lift Height (in) ▲ 127.1 in124.8 in Breakout Force (lbf) ▲ 5,875 lbf5,225 lbf Hydraulic Flow (gpm) ▲ 20.6 gpm16.1 gpm Travel Speed (mph) ▲ 23.9 mph23 mph

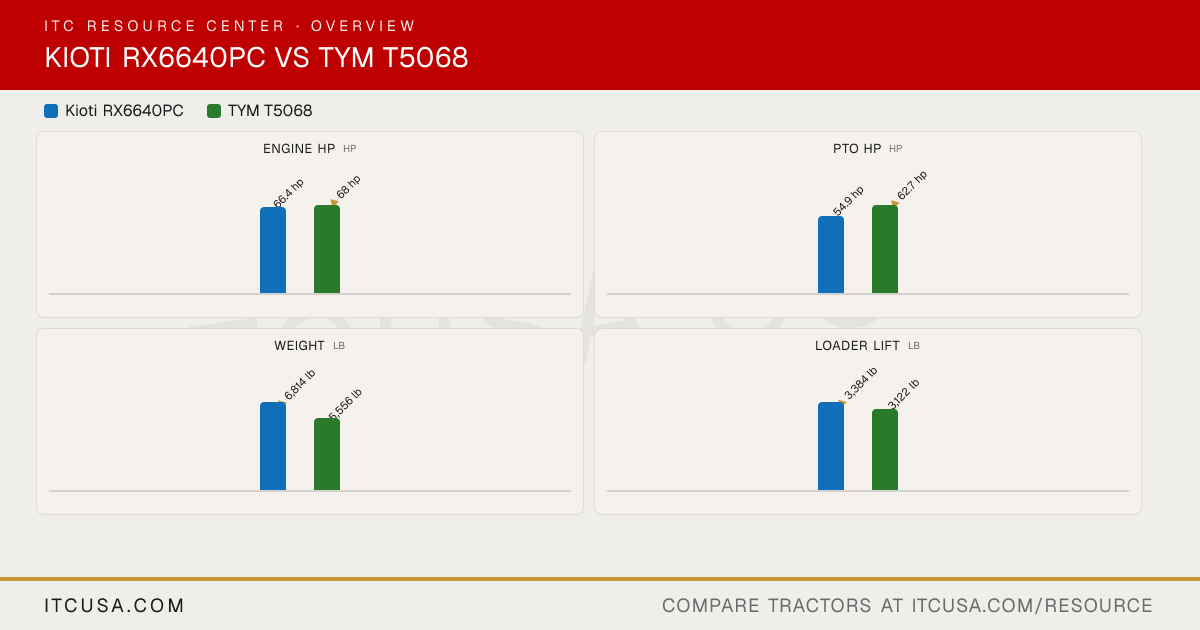

Overview Loader Work PTO Work
The headline numbers at a glance.
Kioti RX6640PC TYM T5068
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kioti RX6640PC TYM T5068
▶ EngineEngine Manufacturer KIOTI Deutz Engine Model 4H243T TCD 2.9 Engine Type 4-cylinder, in-line vertical, water-cooled, 4-cycle turbo diesel, CRDI (4H243T) 4-cylinder, turbocharged diesel No. of Cylinders 4 4 Displacement 148.6 in³ 177 in³ Rated Engine Speed 2600 rpm 2200 rpm Engine Power (Gross) 66.4 hp 68 hp PTO Power 54.9 hp 62.7 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Not Published Dual dry Fuel System CRDI CRDI Alternator Not Published 95 A, 12 V ▶ HydraulicsPump Type Tandem Gear Dual gear pump Implement Flow 12.4 gpm 10.3 gpm Steering Flow 8.2 gpm 5.8 gpm Total Hydraulic Flow 20.6 gpm 16.1 gpm Overall Hydraulic Pump Flow 20.6 gpm 16.1 gpm Hydraulic System Type Not Published Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 6 (Floating/Regen); 4 (Spring/Floating) No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 26.4 gal 18.5 gal Coolant Capacity 2.51 gal 2.8 gal Crankcase Capacity 2.83 gal Not Published Transmission / Hydraulic System Capacity 11.75 gal 11.1 gal Front Axle Fluid Capacity 2.6 gal 4.3 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 540E rpm 540/750 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity 5,584 lb 4,270 lb Hitch Lift Capacity (at 24”) 4,328 lb 3,153 lb Lift Control Type Electronic Control Position/Draft ▶ Transmission & DrivetrainTransmission Type Manual: Power Shuttle Synchro or power shuttle No. of Speeds 12 forward / 12 reverse Not Published Max Travel Speed (Forward) 23.9 mph (22.01 mph on AG tires) 23 mph Max Travel Speed (Reverse) 23.3 mph (21.92 mph on AG tires) Not Published Clutch Wet Disc M: Dry Single Plate; PS: Wet Multi Plate Differential Lock & Limited Slip Options Rear differential lock (standard) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Hydrostatic Brakes Wet Multi Disc Wet disc Seat Suspension & Adjustability Adjustable Air-Ride Seat Suspension seat Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1,984 lb (max. drawbar vertical load) Not Published ▶ Dimensions & ManeuverabilityOverall Width 82.1 in 72.4 in Wheelbase 85.4 in 84.7 in Ground Clearance 15.7 in 17.1 in Min. Turn Radius without Brakes 12.8 ft 162.2 in Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 105.3 in 103 in Overall Length 150.3 in (with 3-point hitch) 155.6 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 6,814 lb (with AG tires) 5,556 lb (with cab) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Industrial Not Published R1 Agricultural - Front 11.2-24 9.5R20 R1 Agricultural - Rear 16.9-30 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80-18 Not Published R4 Industrial - Rear 18.4-24/8 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System Built-in parking stand; quick attach and detach Not Published Loader Model KL7340 L5068SL Loader Lift Height KL7340: 127.1 in (to pivot pin) L5068SL: 124.8 in Loader Lift Capacity (Full Height) KL7340: 3,384 lb (to full height) L5068SL: 3,122 lb (at pivot pin) Loader Breakout Force KL7340: 5,875 lb (at pivot pin) L5068SL: 5,225 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage Non-commercial: basic 24 months, powertrain 48 months, parts and labor Basic 24 months or 2,000 hours, parts and labor; non-commercial, 20 to 70 engine hp: powertrain 72 months or 3,000 hours; loaders, backhoes and mid-mount mowers 12 months
Kioti RX6640PC vs TYM T5068: Quick Answers
Which has more horsepower, the Kioti RX6640PC or the TYM T5068? The TYM T5068 leads on engine hp at 68 hp hp, compared to 66.4 hp hp for the Kioti RX6640PC.
Which has more PTO horsepower, the Kioti RX6640PC or the TYM T5068? The TYM T5068 leads on pto hp at 62.7 hp hp, compared to 54.9 hp hp for the Kioti RX6640PC.
Which is heavier, the Kioti RX6640PC or the TYM T5068? The Kioti RX6640PC leads on weight at 6,814 lb lb, compared to 5,556 lb lb for the TYM T5068.
Which has more loader lift capacity, the Kioti RX6640PC or the TYM T5068? The Kioti RX6640PC leads on loader lift at 3,384 lb lb, compared to 3,122 lb lb for the TYM T5068.
Which has more three-point hitch lift capacity, the Kioti RX6640PC or the TYM T5068? The Kioti RX6640PC leads on 3-pt lift (24 in) at 4,328 lb lb, compared to 3,153 lb lb for the TYM T5068.
