Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage.
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
Pump Type
Tandem Gear
Dual gear pump
Steering Flow
8.2 gpm
5.8 gpm
Implement Flow
12.4 gpm
10.3 gpm
Total Hydraulic Flow
20.6 gpm
16.1 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
20.6 gpm
16.1 gpm
No. of Optional Remote Valves
2
Not Published
No. of Standard Remote Valves
1
2
PTO Rear
540 / 540E rpm
540/750/1,000 rpm
PTO Type
Independent
Independent
Lift Control Type
Electronic Control
Position/Draft/Mech
Hitch Lift Capacity
5,584.3 lb
4,270 lb
Mid-PTO Availability
Not Applicable
Not Published
Category, 3-Point Hitch
Category II
Category II
Hitch Lift Capacity (at 24”)
4,327.7 lb
3,153 lb
R3 Turf - Rear
Not Applicable
Not Published
R3 Turf - Front
Not Applicable
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
18.4-24/8
Xtra Grip 18.4-24 NHS TL 8PR
R4 Industrial - Front
12.5/80-18
Trac Chief 10.5/80-18 NHS TL 10PR
R1 Agricultural - Rear
16.9-30
FSTR 380/85R28 TL (14.9R28)
R1 Agricultural - Front
11.2-24
FSTR 9.5 R20 TL
Coolant Capacity
2.51 gal
10.6 qt
Crankcase Capacity
2.83 gal
8.5 qt
Fuel Tank Capacity
26.40 gal
18.5 gal
Front Axle Fluid Capacity
2.60 gal
17.3 qt
Transmission / Hydraulic System Capacity
11.75 gal
11.0 gal
Loader Lift Height
127.1 in (to pivot pin)
124.8 in
Loader Breakout Force
5,875.3 lb (at pivot pins)
5,225 lb
Quick Attach Loader System
Built-in parking stand; designed to be quickly and easily attached and detached.
TX65SL: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)
3,300.0 lb (to full height at pivot pins)
3,122 lb
Clutch
Wet Disc
M: Dry Single Plate; PS: Wet Multi Plate
No. of Speeds
12 forward / 12 reverse
F24 x R24
Transmission Type
Manual: Power Shuttle
Synchro-shuttle
Max Travel Speed (Forward)
22.01 mph
20.2 mph
Max Travel Speed (Reverse)
21.92 mph
Not Published
Differential Lock & Limited Slip Options
Rear differential lock (standard)
Differential lock
Brakes
Wet Multi Disc
Wet disc
Steering
Hydrostatic Power Steering
Hydrostatic
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Adjustable Air-Ride Seat
Suspension seat
Wheelbase
85.40 in
84.6 in
Overall Width
82.10 in
72.4 in
Ground Clearance
15.70 in
17.1 in
Height to Top of ROPS
Not Applicable
Not Applicable
Height to Top of Cab Model
105.30 in
100.2 in
Height to Top of ROPS (folded)
Not Applicable
Not Applicable
Min. Turn Radius without Brakes
12.80 ft (3.90 m)
162.2 in
Overall Length with 3-Point Hitch
150.30 in
155.6 in
Kioti RX6640PC vs TYM T654: Quick Answers

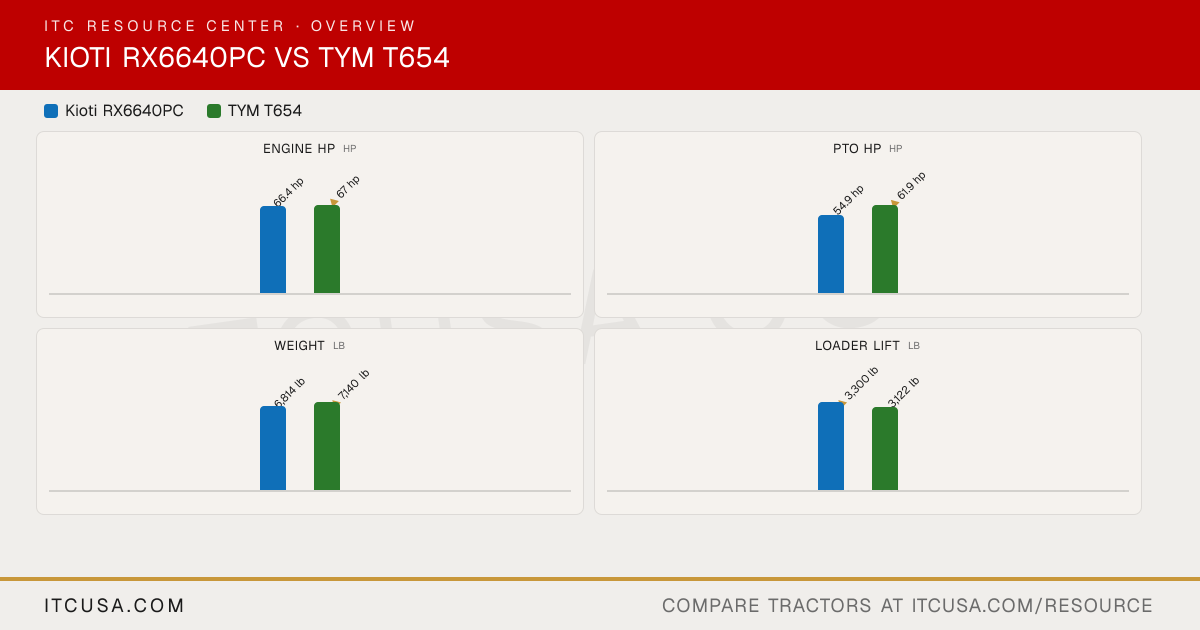

Which has more horsepower, the Kioti RX6640PC or the TYM T654?
The TYM T654 leads on engine hp at 67 hp hp, compared to 66.4 hp hp for the Kioti RX6640PC.
Which has more PTO horsepower, the Kioti RX6640PC or the TYM T654?
The TYM T654 leads on pto hp at 61.9 hp hp, compared to 54.9 hp hp for the Kioti RX6640PC.
Which is heavier, the Kioti RX6640PC or the TYM T654?
The TYM T654 leads on weight at 7,140 lb lb, compared to 6,814 lb lb for the Kioti RX6640PC.
Which has more loader lift capacity, the Kioti RX6640PC or the TYM T654?
The Kioti RX6640PC leads on loader lift at 3,300 lb lb, compared to 3,122 lb lb for the TYM T654.
Which has more three-point hitch lift capacity, the Kioti RX6640PC or the TYM T654?
The Kioti RX6640PC leads on 3-pt lift (24 in) at 4,327.7 lb lb, compared to 3,153 lb lb for the TYM T654.
