Kubota B26 vs Kubota B2920

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Kubota B26 leads 6 categories to 3. Machine pages: Kubota B26 and Kubota B2920.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B26	Kubota B2920
Engine HP (hp)	26 hp	▲ 29 hp
PTO HP (hp)	19.5 hp	▲ 21 hp
Weight (lb)	▲ 2,606 lb	1,554 lb
Loader Lift (lb)	▲ 1,301 lb	952 lb
3-Pt Lift (24 in) (lb)	▲ 1,676 lb	1,058 lb
Lift Height (in)	▲ 94.5 in	78.6 in
Breakout Force (lbf)	▲ 2,343 lbf	2,144 lbf
Hydraulic Flow (gpm)	▲ 11.1 gpm	8.3 gpm
Travel Speed (mph)	11.1 mph	▲ 12.6 mph

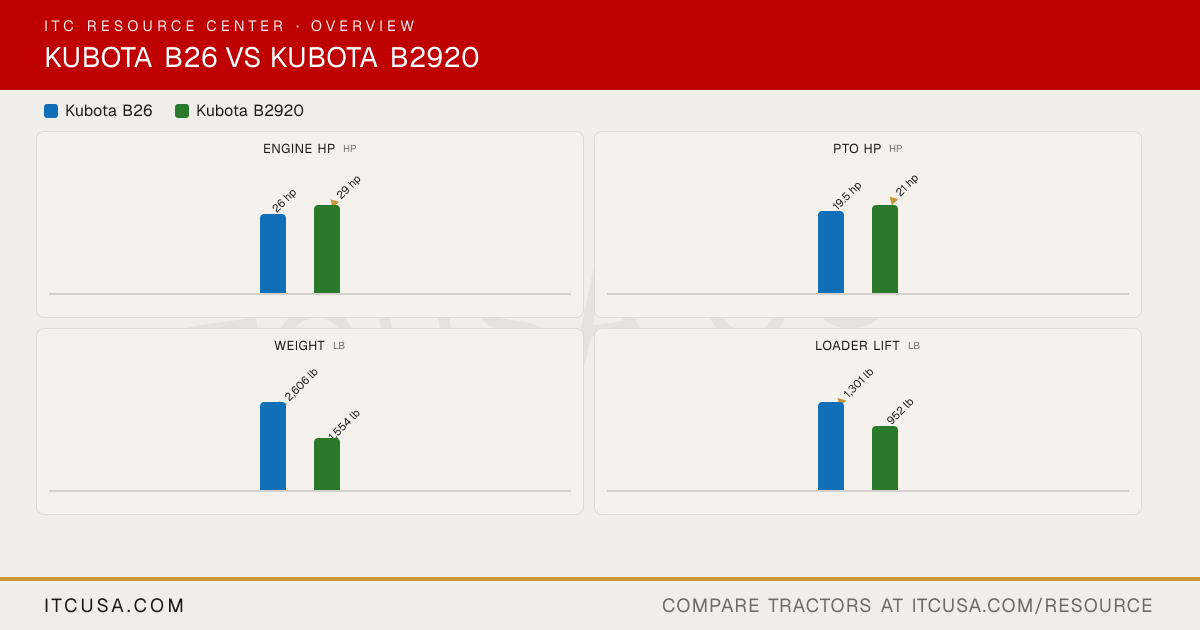

The headline numbers at a glance.

Kubota B26Kubota B2920

Engine HPhp

26 hp

▲29 hp

PTO HPhp

19.5 hp

▲21 hp

Weightlb

▲2,606 lb

1,554 lb

Loader Liftlb

▲1,301 lb

952 lb

3-Pt Lift (24 in)lb

▲1,676 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB26	KubotaB2920


Engine Manufacturer	Kubota	Kubota
Engine Model	D1105-E4-TLB-1	D1305-E3-D22
Engine Type	E-TVCS, 3-cylinder, liquid-cooled diesel	E-TVCS, liquid-cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	68.5 in³	77.0 in³
Rated Engine Speed	2800 rpm	2800 rpm
Engine Power (Gross)	26 hp	29 hp
PTO Power	19.5 hp	21 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled, pressurized radiator
Air Cleaner	Single element	Not Published
Fuel System	Indirect injection (E-TVCS)	Indirect injection (E-TVCS)
Alternator	40 A, 12 V	14.5 A, 12 V

Pump Type	Not Published	Dual pump (3-point + power steering)
Implement Flow	7.0 gpm	4.7 gpm
Steering Flow	4.2 gpm	3.6 gpm
Total Hydraulic Flow	11.1 gpm	8.3 gpm (4.7 + 3.6, computed)
Overall Hydraulic Pump Flow	11.1 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1 or 2
No. of Optional Remote Valves	Up to 3	Not Published

Fuel Tank Capacity	8.1 gal	6.9 gal (6.9 U.S. gal, all models)
Coolant Capacity	4.7 qt	4.1 qt
Crankcase Capacity	3.2 qt	3.7 qt
Transmission / Hydraulic System Capacity	6.9 gal	4.0 gal
Front Axle Fluid Capacity	4.7 qt	Not Published

PTO Type	Independent	Live
PTO Rear	540 rpm	540/960 rpm
Mid-PTO Availability	Not Published	Optional mid-PTO, 2500 rpm (USA No. 5, Kubota 10-tooth)
Category, 3-Point Hitch	Category I (optional)	Category I
Hitch Lift Capacity	2139 lb	1356 lb
Hitch Lift Capacity (at 24”)	1676 lb	1058 lb
Lift Control Type	Position control	Position control valve, quarter inching valve

Transmission Type	HST Plus hydrostatic transmission, 3-range	Main-hydrostatic transmission, 3-range
No. of Speeds	3-range (infinite)	3-range (3 forward, 3 reverse)
Max Travel Speed (Forward)	11.1 mph	12.6 mph
Max Travel Speed (Reverse)	9.8 mph	10.0 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear axle differential lock standard	Rear differential lock standard

Frame Type	Four-post ROPS/FOPS standard	Two-post foldable ROPS (sunshade optional)
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet disc	Wet disk type
Seat Suspension & Adjustability	Reversible seat; tilt steering standard	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	Not Published

Overall Length with 3-Point Hitch	100.7 in (w/o 3P) (without 3-point hitch)	95.1 in (w/o 3P) (without 3-point hitch)
Overall Width	53.7 in	49.0 in
Wheelbase	62.2 in	61.5 in
Ground Clearance	13.8 in	12.8 in
Min. Turn Radius without Brakes	8.2 ft	6.9 ft (w/brake) (with brake applied)
Height to Top of ROPS	89.5 in	85.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2606 lb	1554 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Industrial (R4): 23x8.5-14 R4 front, 12.4-16 R4 rear; turf 24x8.50-14 front, 13.6-16 rear	Standard farm 7-12 front, 11.2-16 rear
R1 Agricultural - Front	Not Published	7-12
R1 Agricultural - Rear	Not Published	11.2-16
R3 Turf - Front	24x8.50-14	Not Published
R3 Turf - Rear	13.6-16	Not Published
R4 Industrial - Front	23x8.50-14 R4	23x8.50-12
R4 Industrial - Rear	12.4-16 R4	12-16.5

Quick Attach Loader System	TL500: 2-lever quick coupler standard	Not Published
Loader Model	TL500	LA364
Loader Lift Height	TL500: 94.5 in	LA364: 78.6 in
Loader Lift Capacity (Full Height)	TL500: 1301 lb	LA364: 952 lb
Loader Breakout Force	TL500: 2343 lbf	LA364: 2144 lbf

Warranty Length & Coverage	Not Published	Not Published

Find a Kubota dealer near you

Kubota B26 vs Kubota B2920: Quick Answers

Which has more horsepower, the Kubota B26 or the Kubota B2920?: The Kubota B2920 leads on engine hp at 29 hp hp, compared to 26 hp hp for the Kubota B26.
Which has more PTO horsepower, the Kubota B26 or the Kubota B2920?: The Kubota B2920 leads on pto hp at 21 hp hp, compared to 19.5 hp hp for the Kubota B26.
Which is heavier, the Kubota B26 or the Kubota B2920?: The Kubota B26 leads on weight at 2,606 lb lb, compared to 1,554 lb lb for the Kubota B2920.
Which has more loader lift capacity, the Kubota B26 or the Kubota B2920?: The Kubota B26 leads on loader lift at 1,301 lb lb, compared to 952 lb lb for the Kubota B2920.
Which has more three-point hitch lift capacity, the Kubota B26 or the Kubota B2920?: The Kubota B26 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,058 lb lb for the Kubota B2920.

More Head-to-Heads

Category Verdict

Spec	Kubota B26	Kubota B2920
Engine HP (hp)	26 hp	▲ 29 hp
PTO HP (hp)	19.5 hp	▲ 21 hp
Weight (lb)	▲ 2,606 lb	1,554 lb
Loader Lift (lb)	▲ 1,301 lb	952 lb
3-Pt Lift (24 in) (lb)	▲ 1,676 lb	1,058 lb
Lift Height (in)	▲ 94.5 in	78.6 in
Breakout Force (lbf)	▲ 2,343 lbf	2,144 lbf
Hydraulic Flow (gpm)	▲ 11.1 gpm	8.3 gpm
Travel Speed (mph)	11.1 mph	▲ 12.6 mph

The headline numbers at a glance.

Kubota B26Kubota B2920

Engine HPhp

26 hp

▲29 hp

PTO HPhp

19.5 hp

▲21 hp

Weightlb

▲2,606 lb

1,554 lb

Loader Liftlb

▲1,301 lb

952 lb

3-Pt Lift (24 in)lb

▲1,676 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB26	KubotaB2920


Engine Manufacturer	Kubota	Kubota
Engine Model	D1105-E4-TLB-1	D1305-E3-D22
Engine Type	E-TVCS, 3-cylinder, liquid-cooled diesel	E-TVCS, liquid-cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	68.5 in³	77.0 in³
Rated Engine Speed	2800 rpm	2800 rpm
Engine Power (Gross)	26 hp	29 hp
PTO Power	19.5 hp	21 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled, pressurized radiator
Air Cleaner	Single element	Not Published
Fuel System	Indirect injection (E-TVCS)	Indirect injection (E-TVCS)
Alternator	40 A, 12 V	14.5 A, 12 V

Pump Type	Not Published	Dual pump (3-point + power steering)
Implement Flow	7.0 gpm	4.7 gpm
Steering Flow	4.2 gpm	3.6 gpm
Total Hydraulic Flow	11.1 gpm	8.3 gpm (4.7 + 3.6, computed)
Overall Hydraulic Pump Flow	11.1 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1 or 2
No. of Optional Remote Valves	Up to 3	Not Published

Fuel Tank Capacity	8.1 gal	6.9 gal (6.9 U.S. gal, all models)
Coolant Capacity	4.7 qt	4.1 qt
Crankcase Capacity	3.2 qt	3.7 qt
Transmission / Hydraulic System Capacity	6.9 gal	4.0 gal
Front Axle Fluid Capacity	4.7 qt	Not Published

PTO Type	Independent	Live
PTO Rear	540 rpm	540/960 rpm
Mid-PTO Availability	Not Published	Optional mid-PTO, 2500 rpm (USA No. 5, Kubota 10-tooth)
Category, 3-Point Hitch	Category I (optional)	Category I
Hitch Lift Capacity	2139 lb	1356 lb
Hitch Lift Capacity (at 24”)	1676 lb	1058 lb
Lift Control Type	Position control	Position control valve, quarter inching valve

Transmission Type	HST Plus hydrostatic transmission, 3-range	Main-hydrostatic transmission, 3-range
No. of Speeds	3-range (infinite)	3-range (3 forward, 3 reverse)
Max Travel Speed (Forward)	11.1 mph	12.6 mph
Max Travel Speed (Reverse)	9.8 mph	10.0 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear axle differential lock standard	Rear differential lock standard

Frame Type	Four-post ROPS/FOPS standard	Two-post foldable ROPS (sunshade optional)
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet disc	Wet disk type
Seat Suspension & Adjustability	Reversible seat; tilt steering standard	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	Not Published

Overall Length with 3-Point Hitch	100.7 in (w/o 3P) (without 3-point hitch)	95.1 in (w/o 3P) (without 3-point hitch)
Overall Width	53.7 in	49.0 in
Wheelbase	62.2 in	61.5 in
Ground Clearance	13.8 in	12.8 in
Min. Turn Radius without Brakes	8.2 ft	6.9 ft (w/brake) (with brake applied)
Height to Top of ROPS	89.5 in	85.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2606 lb	1554 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Industrial (R4): 23x8.5-14 R4 front, 12.4-16 R4 rear; turf 24x8.50-14 front, 13.6-16 rear	Standard farm 7-12 front, 11.2-16 rear
R1 Agricultural - Front	Not Published	7-12
R1 Agricultural - Rear	Not Published	11.2-16
R3 Turf - Front	24x8.50-14	Not Published
R3 Turf - Rear	13.6-16	Not Published
R4 Industrial - Front	23x8.50-14 R4	23x8.50-12
R4 Industrial - Rear	12.4-16 R4	12-16.5

Quick Attach Loader System	TL500: 2-lever quick coupler standard	Not Published
Loader Model	TL500	LA364
Loader Lift Height	TL500: 94.5 in	LA364: 78.6 in
Loader Lift Capacity (Full Height)	TL500: 1301 lb	LA364: 952 lb
Loader Breakout Force	TL500: 2343 lbf	LA364: 2144 lbf

Warranty Length & Coverage	Not Published	Not Published

Find a Kubota dealer near you

Kubota B26 vs Kubota B2920: Quick Answers

Which has more horsepower, the Kubota B26 or the Kubota B2920?

The Kubota B2920 leads on engine hp at 29 hp hp, compared to 26 hp hp for the Kubota B26.

Which has more PTO horsepower, the Kubota B26 or the Kubota B2920?

The Kubota B2920 leads on pto hp at 21 hp hp, compared to 19.5 hp hp for the Kubota B26.

Which is heavier, the Kubota B26 or the Kubota B2920?

The Kubota B26 leads on weight at 2,606 lb lb, compared to 1,554 lb lb for the Kubota B2920.

Which has more loader lift capacity, the Kubota B26 or the Kubota B2920?

The Kubota B26 leads on loader lift at 1,301 lb lb, compared to 952 lb lb for the Kubota B2920.

Which has more three-point hitch lift capacity, the Kubota B26 or the Kubota B2920?

The Kubota B26 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,058 lb lb for the Kubota B2920.
