Kubota B2601HSD vs Kubota LX2610SU

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota LX2610SU leads 7 categories to 0 (1 tied). Machine pages: Kubota B2601HSD and Kubota LX2610SU.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B2601HSD	Kubota LX2610SU
Engine HP (hp)	24.3 hp	▲ 24.8 hp
PTO HP (hp)	19.5 hp	19.5 hp
Loader Lift (lb)	948 lb	▲ 1,067 lb
3-Pt Lift (24 in) (lb)	1,290 lb	▲ 1,676 lb
Lift Height (in)	78.5 in	▲ 84 in
Breakout Force (lbf)	2,146 lbf	▲ 2,245 lbf
Hydraulic Flow (gpm)	8.3 gpm	▲ 8.7 gpm
Travel Speed (mph)	0 mph	▲ 11.2 mph

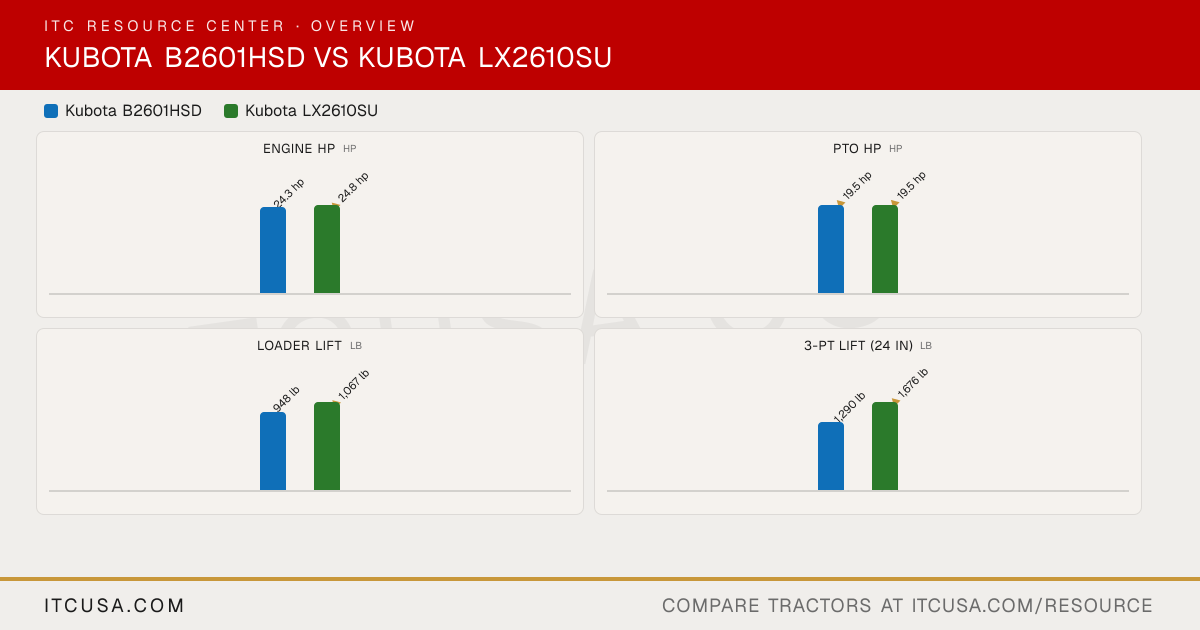

The headline numbers at a glance.

Kubota B2601HSDKubota LX2610SU

Engine HPhp

24.3 hp

▲24.8 hp

PTO HPhp

▲19.5 hp

Weightlb

n/a

Loader Liftlb

948 lb

▲1,067 lb

3-Pt Lift (24 in)lb

1,290 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2601HSD	KubotaLX2610SU


PTO Power	19.5 hp	19.5 hp
Alternator	Not Published	Not Published
Air Cleaner	Dual paper element	4.5 inch Dual paper element
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System	diesel	Not Published
Displacement	61.1 in³	77 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2500 rpm
Cooling System Type	Pressurized radiator	Pressurized radiator
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	24.3 hp	24.8 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Dual pump	Dual pump
Steering Flow	Not Published	Not Published
Implement Flow	8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published	Not Published
Total Hydraulic Flow	8.3 gpm 31.4 lpm	8.7 gpm
Hydraulic System Type	open center	Open center
Rear Remote Hydraulic Flow	8.3 gal/min (total system - individual remote valve flow not separately published)	Not Published
Overall Hydraulic Pump Flow	8.3 gpm	8.7 gpm
No. of Optional Remote Valves	1 (single rear remote is optional)	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540	540 rpm
PTO Type	Independent	Independent
Lift Control Type	position control	Position control valve
Hitch Lift Capacity	1808 lbs.	2139 lb
Mid-PTO Availability	independent, 2500	Not Applicable
Category, 3-Point Hitch	I	Category I
Hitch Lift Capacity (at 24”)	1290 lb	1676 lb

R3 Turf - Rear	22x8.50-12	Not Published
R3 Turf - Front	22x8.50-12	Not Published
Tire Size & Options	Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	12-16.5	12.4-16 / 15-19.5
R4 Industrial - Front	23x8.50-12	23X8.50-14 / 25X8.50-14
R1 Agricultural - Rear	11.2-16	12.4-16
R1 Agricultural - Front	7-12	7.0-12

Coolant Capacity	4.0 qts.	4.5 qt
Crankcase Capacity	3.3 qts.	4.2 qt
Fuel Tank Capacity	6.1 gal	7.1 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	4.0 gal	4.0 gal

Loader Lift Height	78.5 in.	84 in
Loader Breakout Force	2146 lbs.	2245 lb
Quick Attach Loader System	LA435 Swift-Tach Loader (1-lever Quick Coupler)	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)	948 lbs.	1067 lb

Clutch	N/A	N/A
No. of Speeds	3 ranges (HST)	3 ranges
Transmission Type	HST (3 ranges)	Hydrostatic transmission
Max Travel Speed (Forward)	0-12.7 mph (0-12.7 mph)	11.2 mph
Max Travel Speed (Reverse)	0-9.5 mph (0-9.5 mph)	8.4 mph
Differential Lock & Limited Slip Options	Standard	Differential lock standard

Brakes	Wet disc brakes	Multi-plate wet disc
Steering	Power steering	Hydraulic power steering
Frame Type	Not explicitly published in sources found. Tractor uses standard compact utility tractor chassis construction.	Not Published
Front Axle Type	Four-wheel drive	Not Published
Drawbar Capacity	Drawbar included as standard; rated capacity not published in sources found	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	High-back seat with armrests; adjustable tilt-steering wheel; seat is not described as having mechanical suspension	Standard seat

Wheelbase	61.4 inches 61 in	65.6 in
Overall Width	49 in.	53.7 in
Ground Clearance	12.8 in.	14.6 in
Height to Top of ROPS	85.0 in.	88.4 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	85 in - this is the standing/unfolded height; folded height not separately published in sources found	Not Published
Min. Turn Radius without Brakes	6.9 feet (2.1 m)	Not Published
Overall Length with 3-Point Hitch	94.9 in.	Not Published

Kubota B2601HSD vs Kubota LX2610SU: Quick Answers

Which has more horsepower, the Kubota B2601HSD or the Kubota LX2610SU?: The Kubota LX2610SU leads on engine hp at 24.8 hp hp, compared to 24.3 hp hp for the Kubota B2601HSD.
Which has more PTO horsepower, the Kubota B2601HSD or the Kubota LX2610SU?: They are effectively tied: both machines are rated at 19.5 hp hp for pto hp.
Which has more loader lift capacity, the Kubota B2601HSD or the Kubota LX2610SU?: The Kubota LX2610SU leads on loader lift at 1,067 lb lb, compared to 948 lb lb for the Kubota B2601HSD.
Which has more three-point hitch lift capacity, the Kubota B2601HSD or the Kubota LX2610SU?: The Kubota LX2610SU leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,290 lb lb for the Kubota B2601HSD.

More Head-to-Heads

Category Verdict

Spec	Kubota B2601HSD	Kubota LX2610SU
Engine HP (hp)	24.3 hp	▲ 24.8 hp
PTO HP (hp)	19.5 hp	19.5 hp
Loader Lift (lb)	948 lb	▲ 1,067 lb
3-Pt Lift (24 in) (lb)	1,290 lb	▲ 1,676 lb
Lift Height (in)	78.5 in	▲ 84 in
Breakout Force (lbf)	2,146 lbf	▲ 2,245 lbf
Hydraulic Flow (gpm)	8.3 gpm	▲ 8.7 gpm
Travel Speed (mph)	0 mph	▲ 11.2 mph

The headline numbers at a glance.

Kubota B2601HSDKubota LX2610SU

Engine HPhp

24.3 hp

▲24.8 hp

PTO HPhp

▲19.5 hp

Weightlb

n/a

Loader Liftlb

948 lb

▲1,067 lb

3-Pt Lift (24 in)lb

1,290 lb

▲1,676 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2601HSD	KubotaLX2610SU


PTO Power	19.5 hp	19.5 hp
Alternator	Not Published	Not Published
Air Cleaner	Dual paper element	4.5 inch Dual paper element
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System	diesel	Not Published
Displacement	61.1 in³	77 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2500 rpm
Cooling System Type	Pressurized radiator	Pressurized radiator
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	24.3 hp	24.8 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not explicitly published as a combined ROPS+loader figure in sources found. Tractor-only weight is 1,632 lb (740 kg).	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Dual pump	Dual pump
Steering Flow	Not Published	Not Published
Implement Flow	8.3 gal/min total - open center dual pump system shared between steering and implement circuits; individual split not published	Not Published
Total Hydraulic Flow	8.3 gpm 31.4 lpm	8.7 gpm
Hydraulic System Type	open center	Open center
Rear Remote Hydraulic Flow	8.3 gal/min (total system - individual remote valve flow not separately published)	Not Published
Overall Hydraulic Pump Flow	8.3 gpm	8.7 gpm
No. of Optional Remote Valves	1 (single rear remote is optional)	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540	540 rpm
PTO Type	Independent	Independent
Lift Control Type	position control	Position control valve
Hitch Lift Capacity	1808 lbs.	2139 lb
Mid-PTO Availability	independent, 2500	Not Applicable
Category, 3-Point Hitch	I	Category I
Hitch Lift Capacity (at 24”)	1290 lb	1676 lb

R3 Turf - Rear	22x8.50-12	Not Published
R3 Turf - Front	22x8.50-12	Not Published
Tire Size & Options	Ag (R1): 7-12 front / 11.2-16 rear; Turf (R3): 22x8.50-12 front / 22x8.50-12 rear; Industrial (R4): 23x8.50-12 front / 12-16.5 rear; also Goodyear R14 hybrid multi-purpose tire available	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	12-16.5	12.4-16 / 15-19.5
R4 Industrial - Front	23x8.50-12	23X8.50-14 / 25X8.50-14
R1 Agricultural - Rear	11.2-16	12.4-16
R1 Agricultural - Front	7-12	7.0-12

Coolant Capacity	4.0 qts.	4.5 qt
Crankcase Capacity	3.3 qts.	4.2 qt
Fuel Tank Capacity	6.1 gal	7.1 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	4.0 gal	4.0 gal

Loader Lift Height	78.5 in.	84 in
Loader Breakout Force	2146 lbs.	2245 lb
Quick Attach Loader System	LA435 Swift-Tach Loader (1-lever Quick Coupler)	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Lift Capacity (Full Height)	948 lbs.	1067 lb

Clutch	N/A	N/A
No. of Speeds	3 ranges (HST)	3 ranges
Transmission Type	HST (3 ranges)	Hydrostatic transmission
Max Travel Speed (Forward)	0-12.7 mph (0-12.7 mph)	11.2 mph
Max Travel Speed (Reverse)	0-9.5 mph (0-9.5 mph)	8.4 mph
Differential Lock & Limited Slip Options	Standard	Differential lock standard

Brakes	Wet disc brakes	Multi-plate wet disc
Steering	Power steering	Hydraulic power steering
Frame Type	Not explicitly published in sources found. Tractor uses standard compact utility tractor chassis construction.	Not Published
Front Axle Type	Four-wheel drive	Not Published
Drawbar Capacity	Drawbar included as standard; rated capacity not published in sources found	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	High-back seat with armrests; adjustable tilt-steering wheel; seat is not described as having mechanical suspension	Standard seat

Wheelbase	61.4 inches 61 in	65.6 in
Overall Width	49 in.	53.7 in
Ground Clearance	12.8 in.	14.6 in
Height to Top of ROPS	85.0 in.	88.4 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	85 in - this is the standing/unfolded height; folded height not separately published in sources found	Not Published
Min. Turn Radius without Brakes	6.9 feet (2.1 m)	Not Published
Overall Length with 3-Point Hitch	94.9 in.	Not Published

Kubota B2601HSD vs Kubota LX2610SU: Quick Answers

Which has more horsepower, the Kubota B2601HSD or the Kubota LX2610SU?

The Kubota LX2610SU leads on engine hp at 24.8 hp hp, compared to 24.3 hp hp for the Kubota B2601HSD.

Which has more PTO horsepower, the Kubota B2601HSD or the Kubota LX2610SU?

They are effectively tied: both machines are rated at 19.5 hp hp for pto hp.

Which has more loader lift capacity, the Kubota B2601HSD or the Kubota LX2610SU?

The Kubota LX2610SU leads on loader lift at 1,067 lb lb, compared to 948 lb lb for the Kubota B2601HSD.

Which has more three-point hitch lift capacity, the Kubota B2601HSD or the Kubota LX2610SU?

The Kubota LX2610SU leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,290 lb lb for the Kubota B2601HSD.
