Kubota B2601HSD vs LS Tractor XJ2025H

Across 9 measurable specs, the Kubota B2601HSD leads 5 categories to 4. Machine pages: Kubota B2601HSD and LS Tractor XJ2025H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2601HSD	LS TractorXJ2025H

▶Engine
Engine Manufacturer	Kubota	Mitsubishi
Engine Model	D1105	S3L2
Engine Type	E-TVCS, liquid cooled, 3-cylinder diesel	3-cylinder, indirect injection, water-cooled
No. of Cylinders	3	3
Displacement	68.5 in³	80.4 in³
Rated Engine Speed	2800 rpm	2500 rpm
Engine Power (Gross)	24.3 hp	24.4 hp
PTO Power	19.5 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized radiator	Water-cooled
Air Cleaner	Dual paper element	Dry
Fuel System	diesel	Indirect injection
Alternator	Not Published	50 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Transmission driven
Implement Flow	Not Published	5.9 gpm
Steering Flow	Not Published	2.6 gpm
Total Hydraulic Flow	8.3 gpm	8.5 gpm
Overall Hydraulic Pump Flow	8.3 gpm	8.5 gpm
Hydraulic System Type	open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	2	1 pair (2 quick couplers, optional)
▶Fluid Capacity
Fuel Tank Capacity	6.1 gal	6.6 gal
Coolant Capacity	4.0 qt	1.0 gal
Crankcase Capacity	3.3 qt	1.1 gal
Transmission / Hydraulic System Capacity	4.0 gal	5.3 gal
Front Axle Fluid Capacity	3.7 qt	0.8 gal
▶PTO & Hitch
PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	independent, 2500 rpm	Standard (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1808 lb	1,433 lb
Hitch Lift Capacity (at 24”)	1411 lb	1,058 lb
Lift Control Type	position control	Manual position control
▶Transmission & Drivetrain
Transmission Type	HST (3 ranges)	Hydrostatic Drive
No. of Speeds	3 ranges (HST)	2 ranges
Max Travel Speed (Forward)	12.7 mph	11.5 mph
Max Travel Speed (Reverse)	9.5 mph	7.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Standard	Mechanical differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc brakes	Wet, multi-disc
Seat Suspension & Adjustability	High-back suspension seat with standard arm rests; tilt steering (HST models)	Not Published
Front Axle Type	Four-wheel drive	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	660 lb	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	94.9 in (without 3-point hitch)	103 in
Overall Width	49 in	44.9 in
Wheelbase	61.4 in	59 in
Ground Clearance	12.8 in	Not Published
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	85.0 in	92.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1632 lb	1,609 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm (R1): 7-12 front, 11.2-16 rear; Turf (R3): 23x8.50-12 front, 33x12.5-15 rear; Industrial (R4): 23x8.50-12 front, 12-16.5 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-12	23X10.50-12
R1 Agricultural - Rear	11.2-16	255/75-15.3
R3 Turf - Front	23x8.50-12	23x8.50-12
R3 Turf - Rear	33x12.5-15	33x12.5-16.5
R4 Industrial - Front	23x8.50-12	23x8.50-12
R4 Industrial - Rear	12-16.5	33x12-16.5
▶Loader & Attachments
Quick Attach Loader System	LA435 Swift-Tach Loader (1-lever Quick Coupler)	LL2102: Quick-attach front end loader
Loader Model	LA435	LL2102
Loader Lift Height	78.5 in	LL2102: 85.7 in (at pivot pin)
Loader Lift Capacity (Full Height)	948 lb	LL2102: 1,276 lb (at pivot pin, full height)
Loader Breakout Force	2146 lb	LL2102: 1,687 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	6-year limited warranty
▶ITC Company Accessories
Accessories that fit	Kubota B2301/B2401/B2601 Brush Guard Insert Kit $259.00	None tagged yet

Find a Kubota dealer near you→Find a LS Tractor dealer near you→

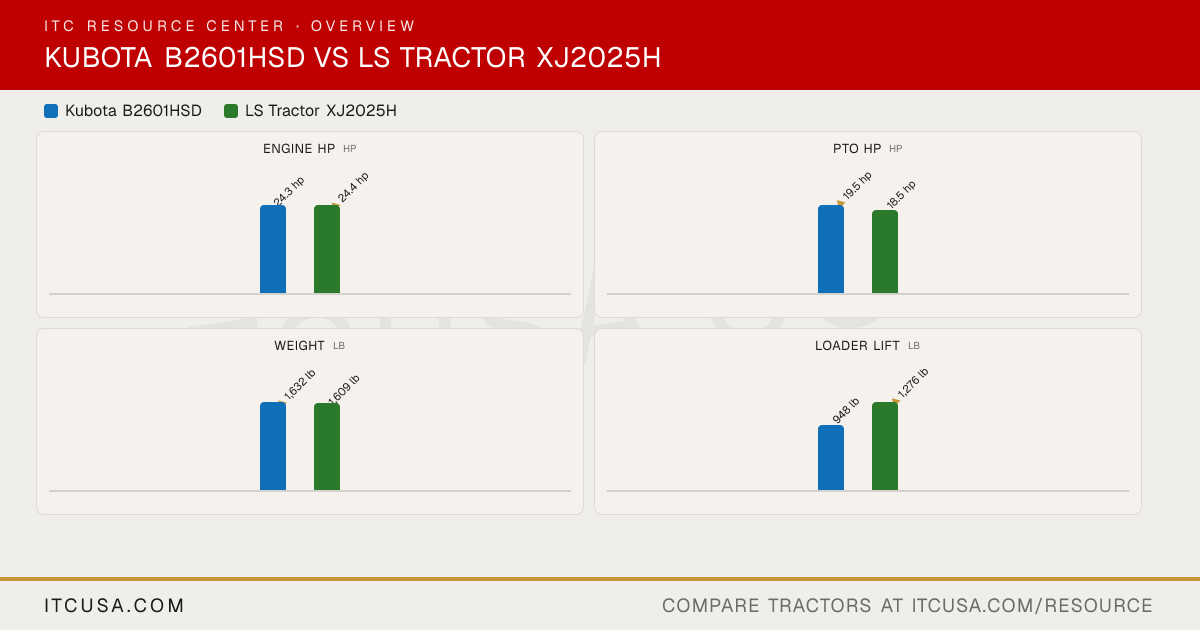

Kubota B2601HSD vs LS Tractor XJ2025H: Quick Answers

Which has more horsepower, the Kubota B2601HSD or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on engine hp at 24.4 hp hp, compared to 24.3 hp hp for the Kubota B2601HSD.

Which has more PTO horsepower, the Kubota B2601HSD or the LS Tractor XJ2025H?

The Kubota B2601HSD leads on pto hp at 19.5 hp hp, compared to 18.5 hp hp for the LS Tractor XJ2025H.

Which is heavier, the Kubota B2601HSD or the LS Tractor XJ2025H?

The Kubota B2601HSD leads on weight at 1,632 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.

Which has more loader lift capacity, the Kubota B2601HSD or the LS Tractor XJ2025H?

The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 948 lb lb for the Kubota B2601HSD.

Which has more three-point hitch lift capacity, the Kubota B2601HSD or the LS Tractor XJ2025H?

The Kubota B2601HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 1,058 lb lb for the LS Tractor XJ2025H.
