Kubota B2650 vs Kubota L2502

Across 8 measurable specs, the Kubota B2650 leads 6 categories to 2. Machine pages: Kubota B2650 and Kubota L2502.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

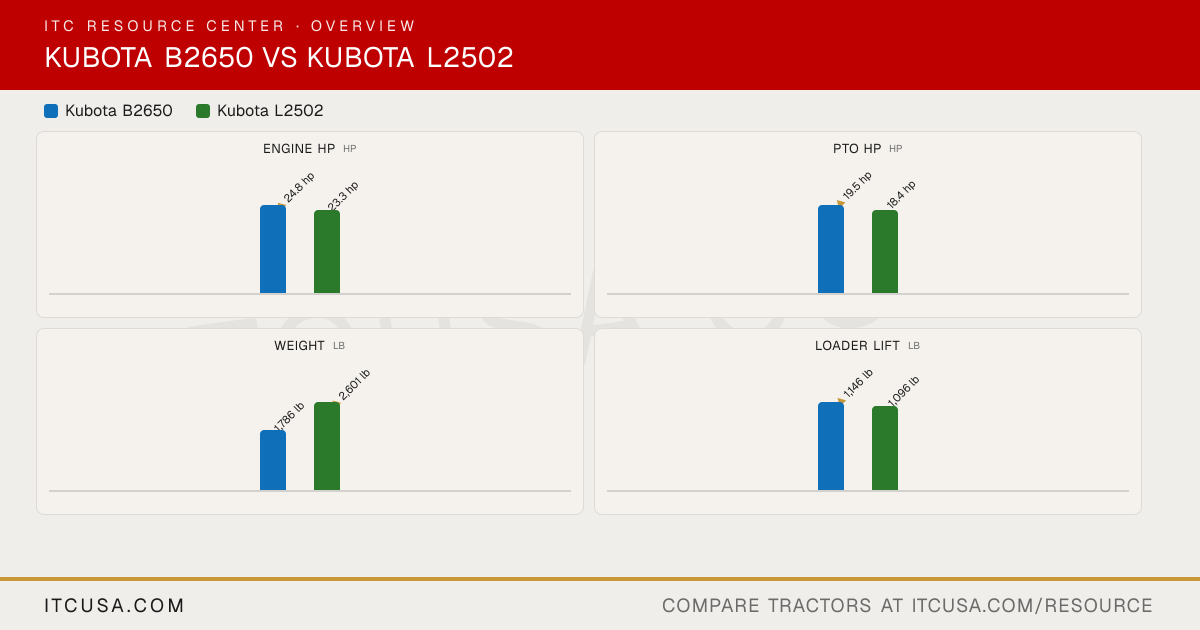

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2650	KubotaL2502

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E4-D26-R	D1703-M-DI-E4 / D1703-M-DI-E4K
Engine Type	E-TVCS, liquid-cooled, 3-cylinder diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	77.0 in³	100.5 in³
Rated Engine Speed	2500 rpm	2200 rpm
Engine Power (Gross)	24.8 hp	23.3 hp
PTO Power	19.5 hp	18.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled, pressurized radiator	Water-cooled
Air Cleaner	4.0 in dual paper element	Dry type, single element
Fuel System	Indirect injection	Direct injection
Alternator	B2650HSD (ROPS): 14.5 A; B2650HSDC (cab): 40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Not Published
Implement Flow	5 gpm	5.2 gpm
Steering Flow	3.7 gpm	3.1 gpm
Total Hydraulic Flow	8.7 gpm	8.28 gpm (5.15 + 3.13, computed)
Overall Hydraulic Pump Flow	8.7 gpm	8.28 gpm (5.15 + 3.13, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 (rear outlet)	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.3 gal	11.1 gal
Coolant Capacity	4.5 qt	6.3 qt
Crankcase Capacity	4.2 qt	6.0 qt
Transmission / Hydraulic System Capacity	4.0 gal	HST (4WD): 6.9 gal; DT (2WD): 7.4 gal; DT (4WD): 7.5 gal
Front Axle Fluid Capacity	Not Published	4.8 qt
▶PTO & Hitch
PTO Type	Independent	DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-independent hydraulic PTO with PTO brake, wet
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard mid-PTO, 2500 rpm	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	2139 lb	1874 lb
Hitch Lift Capacity (at 24”)	1676 lb	1389 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission, 3-range	DT (2WD), DT (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
No. of Speeds	3-range	DT (2WD), DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Max Travel Speed (Forward)	11.9 mph	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph
Max Travel Speed (Reverse)	9.5 mph	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 10.3 mph
Clutch	Not Published	DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS (cab optional)	Not Published
Steering	Hydraulic power steering	Integral type power steering
Brakes	Multi-plate wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Deluxe seat with parallel link and damper seat suspension	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Not Published	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	101.2 in (w/o 3P) (without 3-point hitch)	DT (2WD): 110.6 in; DT (4WD), HST (4WD): 108.5 in (without 3-point hitch)
Overall Width	53.7 in	55.1 in
Wheelbase	65.6 in	DT (2WD): 63.8 in; DT (4WD), HST (4WD): 63.4 in
Ground Clearance	14.6 in	DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in
Min. Turn Radius without Brakes	6.9 ft (w/brake) (with brake applied)	DT (2WD): 7.9 ft; DT (4WD), HST (4WD): 8.2 ft (with brake applied)
Height to Top of ROPS	88.4 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	Not Published
▶Weight
Tractor Weight (Base)	1786 lb	DT (2WD): 2601 lb; DT (4WD): 2811 lb; HST (4WD): 2833 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard farm (R1): 7-12 front, 12.4-16 rear; turf and industrial optional	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-12	DT (2WD): 5.0-15; DT (4WD), HST (4WD): 7.2-16
R1 Agricultural - Rear	12.4-16	11.2-24
R3 Turf - Front	24x8.50-14	DT (2WD): 23X8.50-12; DT (4WD), HST (4WD): 25X8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23x8.50-14	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15
R4 Industrial - Rear	12.4-16	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5
▶Loader & Attachments
Quick Attach Loader System	LA534A: 2-lever quick coupler (optional), quick attach/detach mounting	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA534A	LA526
Loader Lift Height	LA534A: 84.6 in	LA526: 94.8 in
Loader Lift Capacity (Full Height)	LA534A: 1146 lb	LA526: 1,096 lb
Loader Breakout Force	LA534A: 2321 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Not Published	Not Published
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota B2650 vs Kubota L2502: Quick Answers

Which has more horsepower, the Kubota B2650 or the Kubota L2502?

The Kubota B2650 leads on engine hp at 24.8 hp hp, compared to 23.3 hp hp for the Kubota L2502.

Which has more PTO horsepower, the Kubota B2650 or the Kubota L2502?

The Kubota B2650 leads on pto hp at 19.5 hp hp, compared to 18.4 hp hp for the Kubota L2502.

Which is heavier, the Kubota B2650 or the Kubota L2502?

The Kubota L2502 leads on weight at 2,601 lb lb, compared to 1,786 lb lb for the Kubota B2650.

Which has more loader lift capacity, the Kubota B2650 or the Kubota L2502?

The Kubota B2650 leads on loader lift at 1,146 lb lb, compared to 1,096 lb lb for the Kubota L2502.

Which has more three-point hitch lift capacity, the Kubota B2650 or the Kubota L2502?

The Kubota B2650 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,389 lb lb for the Kubota L2502.
