Kubota B2920 vs Kubota L2501

Across 9 measurable specs, the Kubota L2501 leads 5 categories to 4. Machine pages: Kubota B2920 and Kubota L2501.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2920	KubotaL2501

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E3-D22	D1703-M-DI-E4
Engine Type	3-cylinder, liquid-cooled diesel (E-TVCS)	Direct injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	77.0 in³	100.47 in³
Rated Engine Speed	2800 rpm	2200 rpm
Engine Power (Gross)	27.2 hp	24.8 hp
PTO Power	21 hp	19 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled, pressurized radiator	Water-cooled
Air Cleaner	Not Published	Dry paper single element (dual optional)
Fuel System	Indirect injection	Direct injection
Alternator	14.5 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Open center tandem pump, gear type
Implement Flow	4.7 gpm	5.15 gpm
Steering Flow	3.6 gpm	3.11 gpm
Total Hydraulic Flow	8.3 gpm	8.26 gpm
Overall Hydraulic Pump Flow	Not Published	8.26 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 or 2	Not Published
No. of Optional Remote Valves	Not Published	Up to 3: self-canceling detent valve or float detent valve
▶Fluid Capacity
Fuel Tank Capacity	6.9 gal	10.0 gal
Coolant Capacity	4.1 qt	6.3 qt
Crankcase Capacity	3.7 qt	6.0 qt
Transmission / Hydraulic System Capacity	4.0 gal	HST (4WD): 6.2 gal; DT (2WD): 7.1 gal; DT (4WD): 7.3 gal
Front Axle Fluid Capacity	Not Published	6.9 qt
▶PTO & Hitch
PTO Type	Live	F (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running
PTO Rear	540/960 rpm	540 rpm
Mid-PTO Availability	2500 rpm (USA No. 5, Kubota 10-tooth)	No mid-PTO offered
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,356 lb	1,918 lb
Hitch Lift Capacity (at 24”)	1,058 lb	1,389 lb
Lift Control Type	Quarter inching valve	Position control
▶Transmission & Drivetrain
Transmission Type	Main-hydrostatic transmission, 3-range	Hydrostatic transmission (3-range)
No. of Speeds	3-range (3 forward, 3 reverse)	3-range
Max Travel Speed (Forward)	12.6 mph	11.5 mph
Max Travel Speed (Reverse)	10.0 mph	10.3 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS (sunshade optional)	Not Published
Steering	Integral type power steering	Integral type power steering
Brakes	Wet disk type	Wet disc type
Seat Suspension & Adjustability	Not Published	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Not Published	Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	2,865 lb (4WD, at 43.1 in tread)
Drawbar Capacity	Not Published	730 lb
▶Dimensions & Maneuverability
Overall Width	49.0 in	55.1 in
Wheelbase	61.5 in	63.3 in
Ground Clearance	12.8 in	13.4 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	85.0 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	95.1 in (without 3-point hitch)	106.3 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	1,554 lb	2,623 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard farm 7-12 front, 11.2-16 rear	R1 Agricultural; R4 Industrial
R1 Agricultural - Front	7-12	7.2-16
R1 Agricultural - Rear	11.2-16	11.2-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	23x8.50-12	27X8.50-15
R4 Industrial - Rear	12-16.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	Front Loader (LA525 - 2 Lever Quick Coupler)
Loader Model	LA364	LA525
Loader Lift Height	LA364: 78.5 in (at pivot pin)	94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	LA364: 952 lb (at pivot pin)	1,082 lb (at pivot pin)
Loader Breakout Force	LA364: 2,144 lbf (at pivot pin)	2,373 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota Standard L & MX Series Brush Guard Insert Kit $269.00

Find a Kubota dealer near you→

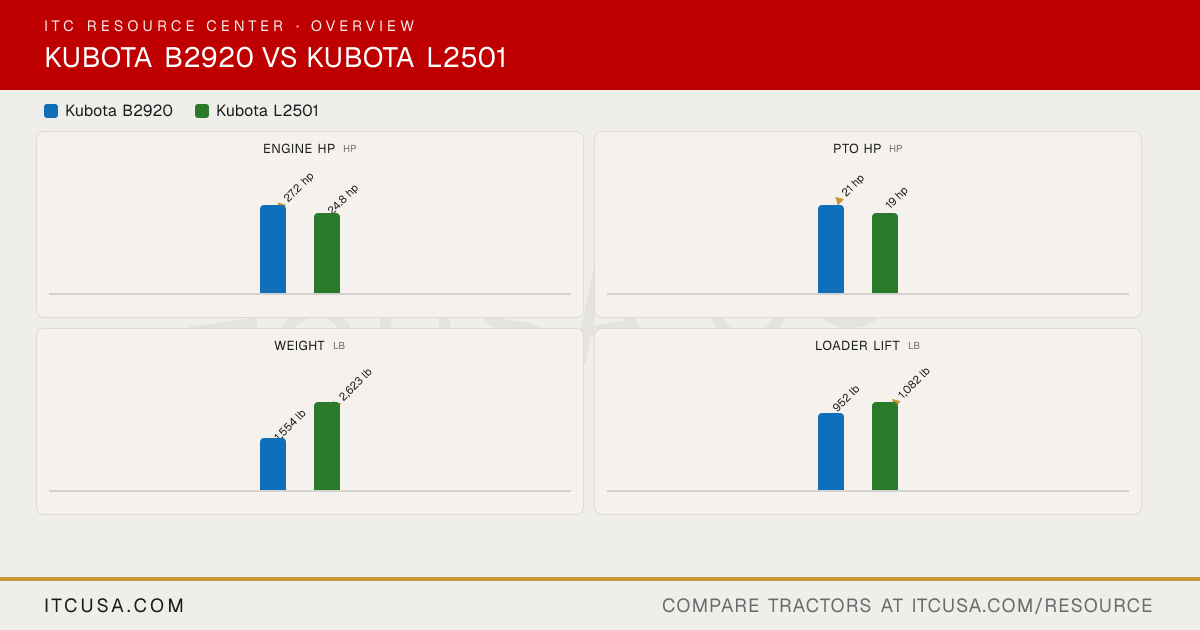

Kubota B2920 vs Kubota L2501: Quick Answers

Which has more horsepower, the Kubota B2920 or the Kubota L2501?

The Kubota B2920 leads on engine hp at 27.2 hp hp, compared to 24.8 hp hp for the Kubota L2501.

Which has more PTO horsepower, the Kubota B2920 or the Kubota L2501?

The Kubota B2920 leads on pto hp at 21 hp hp, compared to 19 hp hp for the Kubota L2501.

Which is heavier, the Kubota B2920 or the Kubota L2501?

The Kubota L2501 leads on weight at 2,623 lb lb, compared to 1,554 lb lb for the Kubota B2920.

Which has more loader lift capacity, the Kubota B2920 or the Kubota L2501?

The Kubota L2501 leads on loader lift at 1,082 lb lb, compared to 952 lb lb for the Kubota B2920.

Which has more three-point hitch lift capacity, the Kubota B2920 or the Kubota L2501?

The Kubota L2501 leads on 3-pt lift (24 in) at 1,389 lb lb, compared to 1,058 lb lb for the Kubota B2920.
