Kubota B2920 vs Kubota L3130

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota L3130 leads 8 categories to 0. Machine pages: Kubota B2920 and Kubota L3130.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B2920	Kubota L3130
Engine HP (hp)	29 hp	▲ 32.1 hp
PTO HP (hp)	21 hp	▲ 25.8 hp
Weight (lb)	1,554 lb	▲ 3,265 lb
Loader Lift (lb)	952 lb	▲ 1,870 lb
3-Pt Lift (24 in) (lb)	1,058 lb	▲ 2,650 lb
Lift Height (in)	78.6 in	▲ 102.4 in
Breakout Force (lbf)	2,144 lbf	▲ 2,605 lbf
Hydraulic Flow (gpm)	8.3 gpm	▲ 13.2 gpm
Travel Speed (mph)	12.6 mph	n/a

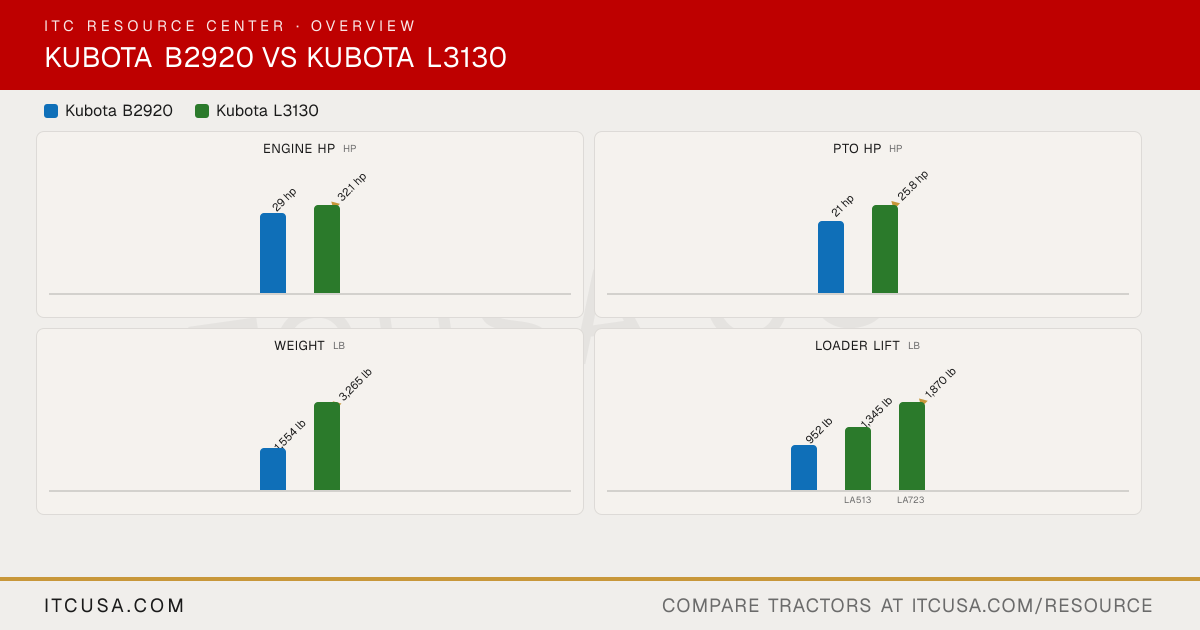

The headline numbers at a glance.

Kubota B2920Kubota L3130

Engine HPhp

29 hp

▲32.1 hp

PTO HPhp

21 hp

▲25.8 hp

Weightlb

1,554 lb

▲3,265 lb

Loader Liftlb

952 lb

1,345 lb

▲1,870 lb

LA513LA723

3-Pt Lift (24 in)lb

1,058 lb

▲2,650 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2920	KubotaL3130


Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E3-D22	Not Published
Engine Type	E-TVCS, liquid-cooled, 3-cylinder diesel	Not Published
No. of Cylinders	3	3
Displacement	77.0 in³	91.5 in³
Rated Engine Speed	2800 rpm	Not Published
Engine Power (Gross)	29 hp	32.1 hp
PTO Power	21 hp	25.8 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled, pressurized radiator	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Indirect injection (E-TVCS)	Indirect injection
Alternator	14.5 A, 12 V	Not Published

Pump Type	Dual pump (3-point + power steering)	Single pump (position-control)
Implement Flow	4.7 gpm	8.3 gpm
Steering Flow	3.6 gpm	4.9 gpm
Total Hydraulic Flow	8.3 gpm (4.7 + 3.6, computed)	13.2 gpm
Overall Hydraulic Pump Flow	Not Published	8.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 or 2	Not Published
No. of Optional Remote Valves	Not Published	3

Fuel Tank Capacity	6.9 gal (6.9 U.S. gal, all models)	10.6 gal
Coolant Capacity	4.1 qt	6.3 qt
Crankcase Capacity	3.7 qt	6.0 qt
Transmission / Hydraulic System Capacity	4.0 gal	11.1 gal
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Live	Independent, hydraulic clutch
PTO Rear	540/960 rpm	540 rpm
Mid-PTO Availability	Optional mid-PTO, 2500 rpm (USA No. 5, Kubota 10-tooth)	Optional mid-PTO, independent, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1356 lb	3750 lb (at lift points)
Hitch Lift Capacity (at 24”)	1058 lb	2650 lb
Lift Control Type	Position control valve, quarter inching valve	Position control (with optional draft control)

Transmission Type	Main-hydrostatic transmission, 3-range	F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option)
No. of Speeds	3-range (3 forward, 3 reverse)	8F/8R (16F/16R with creep option)
Max Travel Speed (Forward)	12.6 mph	Not Published
Max Travel Speed (Reverse)	10.0 mph	Not Published
Clutch	Not Published	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Not Published

Frame Type	Two-post foldable ROPS (sunshade optional)	Not Published
Steering	Integral type power steering	Hydrostatic power steering
Brakes	Wet disk type	Wet disk type
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	95.1 in (w/o 3P) (without 3-point hitch)	119.1 in (without 3P) (without 3-point hitch)
Overall Width	49.0 in	56.3 in (minimum tread)
Wheelbase	61.5 in	71.1 in
Ground Clearance	12.8 in	14.6 in
Min. Turn Radius without Brakes	6.9 ft (w/brake) (with brake applied)	8.9 ft (w/brake) (with brake applied)
Height to Top of ROPS	85.0 in	88.8 in (with ROPS)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1554 lb	3265 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard farm 7-12 front, 11.2-16 rear	Standard Front: 7-16; Rear: 12.4-24
R1 Agricultural - Front	7-12	7-16
R1 Agricultural - Rear	11.2-16	12.4-24
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	23x8.50-12	Not Published
R4 Industrial - Rear	12-16.5	Not Published

Quick Attach Loader System	Not Published	LA513 and LA723 loaders offered
Loader Model	LA364	LA513; LA723
Loader Lift Height	LA364: 78.6 in	LA513: 96.5 in; LA723: 102.4 in
Loader Lift Capacity (Full Height)	LA364: 952 lb	LA513: 1345 lb; LA723: 1870 lb
Loader Breakout Force	LA364: 2144 lbf	LA513: 2160 lbf (at 19.7 in); LA723: 2605 lbf (at 19.7 in) (19.7 in forward of pivot pin)

Warranty Length & Coverage	Not Published	Not Published

Find a Kubota dealer near you

Kubota B2920 vs Kubota L3130: Quick Answers

Which has more horsepower, the Kubota B2920 or the Kubota L3130?: The Kubota L3130 leads on engine hp at 32.1 hp hp, compared to 29 hp hp for the Kubota B2920.
Which has more PTO horsepower, the Kubota B2920 or the Kubota L3130?: The Kubota L3130 leads on pto hp at 25.8 hp hp, compared to 21 hp hp for the Kubota B2920.
Which is heavier, the Kubota B2920 or the Kubota L3130?: The Kubota L3130 leads on weight at 3,265 lb lb, compared to 1,554 lb lb for the Kubota B2920.
Which has more loader lift capacity, the Kubota B2920 or the Kubota L3130?: The Kubota L3130 leads on loader lift at 1,870 lb lb, compared to 952 lb lb for the Kubota B2920.
Which has more three-point hitch lift capacity, the Kubota B2920 or the Kubota L3130?: The Kubota L3130 leads on 3-pt lift (24 in) at 2,650 lb lb, compared to 1,058 lb lb for the Kubota B2920.
