Kubota B2920 vs Kubota LX2610

Across 9 measurable specs, the Kubota LX2610 leads 6 categories to 3. Machine pages: Kubota B2920 and Kubota LX2610.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

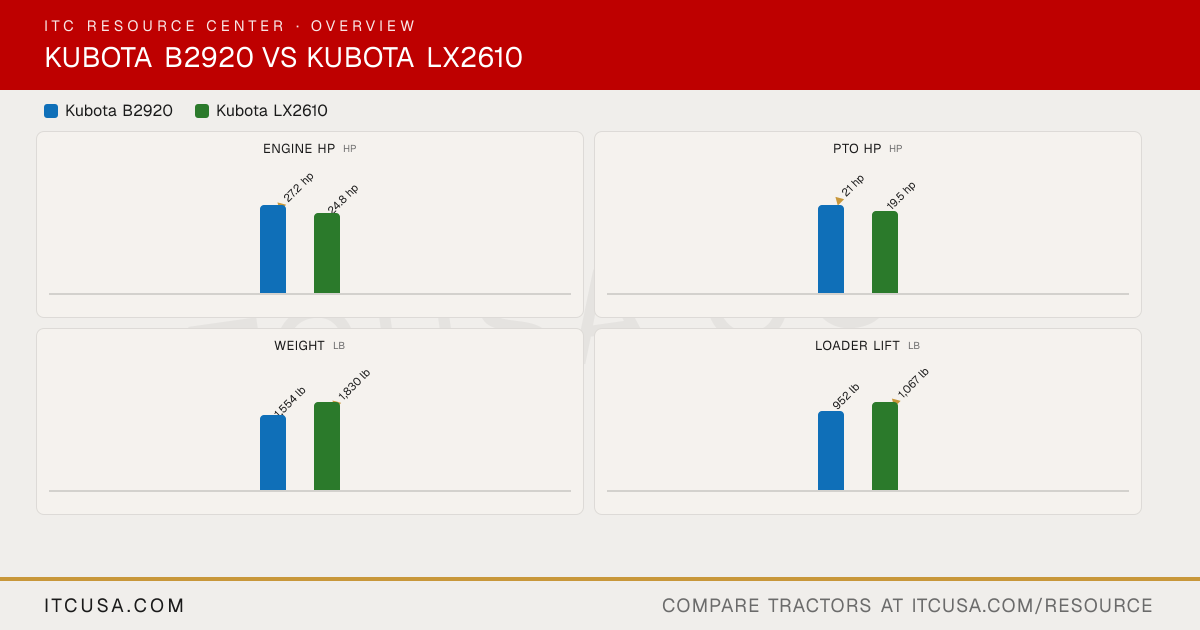

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2920	KubotaLX2610

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E3-D22	D1305-E4-D36-R
Engine Type	3-cylinder, liquid-cooled diesel (E-TVCS)	3-cylinder, indirect injection, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	77.0 in³	77 in³
Rated Engine Speed	2800 rpm	2500 rpm
Engine Power (Gross)	27.2 hp	24.8 hp
PTO Power	21 hp	19.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled, pressurized radiator	Pressurized radiator
Air Cleaner	Not Published	4.5 in Dual paper element
Fuel System	Indirect injection	Indirect injection
Alternator	14.5 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Dual pump
Implement Flow	4.7 gpm	5.0 gpm
Steering Flow	3.6 gpm	3.7 gpm
Total Hydraulic Flow	8.3 gpm	8.7 gpm
Overall Hydraulic Pump Flow	Not Published	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 or 2	None (remote valves optional)
No. of Optional Remote Valves	Not Published	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	6.9 gal	7.1 gal
Coolant Capacity	4.1 qt	4.5 qt
Crankcase Capacity	3.7 qt	4.2 qt
Transmission / Hydraulic System Capacity	4.0 gal	4.0 gal
Front Axle Fluid Capacity	Not Published	5.0 qt
▶PTO & Hitch
PTO Type	Live	Independent
PTO Rear	540/960 rpm	540 rpm
Mid-PTO Availability	2500 rpm (USA No. 5, Kubota 10-tooth)	2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,356 lb	2,139 lb
Hitch Lift Capacity (at 24”)	1,058 lb	1,676 lb
Lift Control Type	Quarter inching valve	Position control valve
▶Transmission & Drivetrain
Transmission Type	Main-hydrostatic transmission, 3-range	Hydrostatic transmission
No. of Speeds	3-range (3 forward, 3 reverse)	3 ranges
Max Travel Speed (Forward)	12.6 mph	11.2 mph
Max Travel Speed (Reverse)	10.0 mph	8.4 mph
Clutch	Not Published	Not Applicable
Differential Lock & Limited Slip Options	Differential lock standard	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS (sunshade optional)	Not Published
Steering	Integral type power steering	Hydraulic power steering
Brakes	Wet disk type	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	Deluxe high-back suspension seat
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,100 lb
▶Dimensions & Maneuverability
Overall Width	49.0 in	53.7 in
Wheelbase	61.5 in	65.6 in
Ground Clearance	12.8 in	14.6 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	6.9 ft (with brake applied)
Height to Top of ROPS	85.0 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
Overall Length	95.1 in (without 3-point hitch)	101.8 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	1,554 lb	1,830 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard farm 7-12 front, 11.2-16 rear	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7-12	7-12
R1 Agricultural - Rear	11.2-16	12.4-16
R3 Turf - Front	Not Published	24x8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	23x8.50-12	23X8.50-14 / 25X8.50-14
R4 Industrial - Rear	12-16.5	12.4-16 / 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	LA535: 2-lever quick coupler, standard; Swift-Tach, optional
Loader Model	LA364	LA535
Loader Lift Height	LA364: 78.5 in (at pivot pin)	84 in (at pivot pin)
Loader Lift Capacity (Full Height)	LA364: 952 lb (at pivot pin)	1,067 lb (at pivot pin)
Loader Breakout Force	LA364: 2,144 lbf (at pivot pin)	2,245 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota LX2610/LX3310 Brush Guard Insert $259.00

Find a Kubota dealer near you→

Kubota B2920 vs Kubota LX2610: Quick Answers

Which has more horsepower, the Kubota B2920 or the Kubota LX2610?

The Kubota B2920 leads on engine hp at 27.2 hp hp, compared to 24.8 hp hp for the Kubota LX2610.

Which has more PTO horsepower, the Kubota B2920 or the Kubota LX2610?

The Kubota B2920 leads on pto hp at 21 hp hp, compared to 19.5 hp hp for the Kubota LX2610.

Which is heavier, the Kubota B2920 or the Kubota LX2610?

The Kubota LX2610 leads on weight at 1,830 lb lb, compared to 1,554 lb lb for the Kubota B2920.

Which has more loader lift capacity, the Kubota B2920 or the Kubota LX2610?

The Kubota LX2610 leads on loader lift at 1,067 lb lb, compared to 952 lb lb for the Kubota B2920.

Which has more three-point hitch lift capacity, the Kubota B2920 or the Kubota LX2610?

The Kubota LX2610 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,058 lb lb for the Kubota B2920.
