Kubota B3300SU vs Kubota L2800

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota L2800 leads 6 categories to 1 (1 tied). Machine pages: Kubota B3300SU and Kubota L2800.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B3300SU	Kubota L2800
Engine HP (hp)	▲ 33 hp	30 hp
PTO HP (hp)	25 hp	25 hp
Weight (lb)	1,764 lb	▲ 2,600 lb
Loader Lift (lb)	1,065 lb	▲ 1,142 lb
3-Pt Lift (24 in) (lb)	1,400 lb	▲ 1,435 lb
Lift Height (in)	82.6 in	▲ 95.3 in
Breakout Force (lbf)	n/a	1,858 lbf
Hydraulic Flow (gpm)	9.9 gpm	▲ 10.5 gpm
Travel Speed (mph)	11.9 mph	▲ 13.7 mph

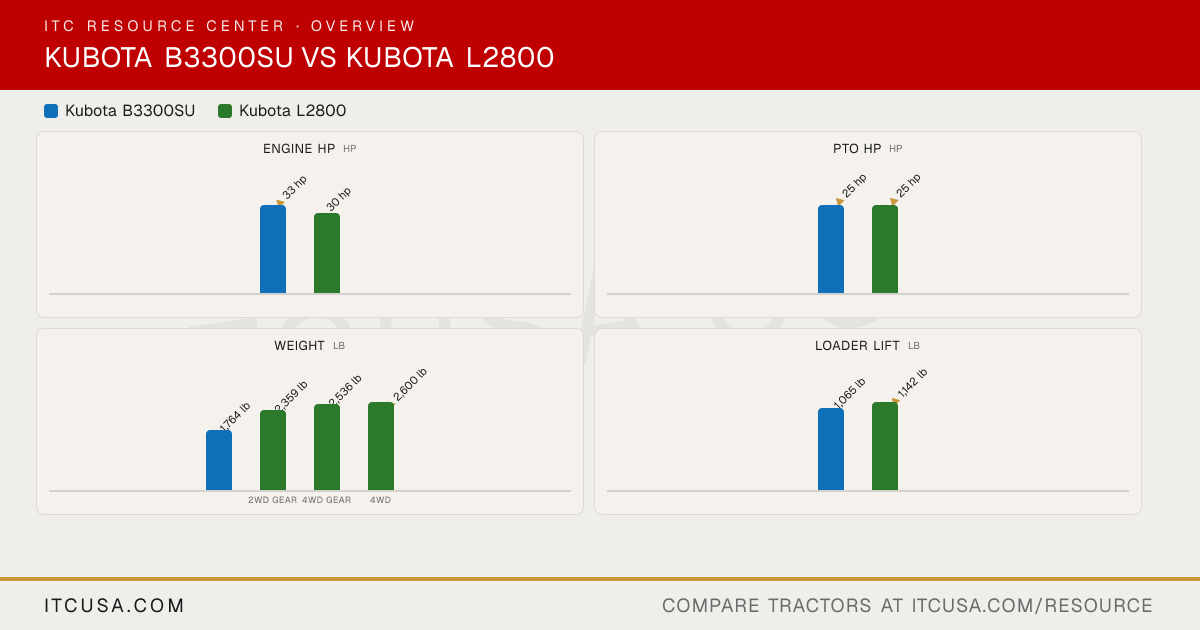

The headline numbers at a glance.

Kubota B3300SUKubota L2800

Engine HPhp

▲33 hp

30 hp

PTO HPhp

▲25 hp

Weightlb

1,764 lb

2,359 lb

2,536 lb

▲2,600 lb

2WD gear4WD gear4WD

Loader Liftlb

1,065 lb

▲1,142 lb

3-Pt Lift (24 in)lb

1,400 lb

▲1,435 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB3300SU	KubotaL2800


Engine Manufacturer	Kubota	Kubota
Engine Model	V1505-E3-D24H	Not Published
Engine Type	Indirect injection, vertical, water-cooled, 4-cycle diesel	Not Published
No. of Cylinders	4	3
Displacement	91.5 in³	91.5 in³
Rated Engine Speed	2700 rpm	2800 rpm
Engine Power (Gross)	33 hp	30 hp
PTO Power	25 hp	F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp
Engine Emissions Constraints	Not Published	Tier 2
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dual paper element	Not Published
Fuel System	Indirect injection	Indirect injection (E-TVCS)
Alternator	14.5 A, 12 V	40 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	6.7 gpm	6.5 gpm
Steering Flow	3.2 gpm	4.0 gpm
Total Hydraulic Flow	9.9 gpm	10.5 gpm (6.5 + 4.0, computed)
Overall Hydraulic Pump Flow	9.9 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1 (optional rear valve)	Up to 3

Fuel Tank Capacity	8.1 gal	9.0 gal
Coolant Capacity	4.7 qt	Not Published
Crankcase Capacity	5.7 qt	Not Published
Transmission / Hydraulic System Capacity	3.83 gal	7.3 gal
Front Axle Fluid Capacity	Not Published	4.8 qt

PTO Type	Live	F (2WD gear), DT (4WD gear): transmission-driven, live-continuous running; HST (4WD): live-continuous with overrunning clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	None (no mid-PTO)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1786 lb	1998 lb
Hitch Lift Capacity (at 24”)	1400 lb	1435 lb
Lift Control Type	Quarter inching valve	Position control

Transmission Type	Hydrostatic transmission, 3-range	Not Published
No. of Speeds	3-range	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range
Max Travel Speed (Forward)	11.9 mph	F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph
Max Travel Speed (Reverse)	9.5 mph	F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph
Clutch	Dry single plate	F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock standard

Frame Type	Two-post ROPS (sunshade optional)	Two-post ROPS (foldable ROPS optional)
Steering	Integral type power steering	Integral type power steering
Brakes	Wet disc type	Wet disc type
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	Not Published

Overall Length with 3-Point Hitch	99.2 in (w/o 3P) (without 3-point hitch)	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (w/o 3P) (without 3-point hitch)
Overall Width	53.7 in	51.4 in
Wheelbase	66.8 in	F (2WD): 63.4 in; DT (4WD), HST (4WD): 63.3 in
Ground Clearance	14.6 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in
Min. Turn Radius without Brakes	7.9 ft (w/brake) (with brake applied)	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (w/brake) (with brake applied)
Height to Top of ROPS	88.4 in	85.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1764 lb (farm tires); 1786 lb (industrial tires)	F (2WD gear): 2359 lb; DT (4WD gear): 2536 lb; HST (4WD): 2600 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear
R1 Agricultural - Front	7-12	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16
R1 Agricultural - Rear	12.4-16	11.2-24
R3 Turf - Front	Not Published	2WD: 23x8.50-12; 4WD: 25x8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	Not Published	27x8.50-15 (4WD)
R4 Industrial - Rear	Not Published	15-19.5 R4 (4WD)

Quick Attach Loader System	Not Published	Not Published
Loader Model	LA504	LA463
Loader Lift Height	LA504: 82.6 in	LA463: 95.3 in
Loader Lift Capacity (Full Height)	LA504: 1065 lb	LA463: 1142 lb
Loader Breakout Force	Not Published	LA463: 1858 lbf (at 19.7 in) (19.7 in forward of pivot pin)

Warranty Length & Coverage	Not Published	Not Published

Find a Kubota dealer near you

Kubota B3300SU vs Kubota L2800: Quick Answers

Which has more horsepower, the Kubota B3300SU or the Kubota L2800?: The Kubota B3300SU leads on engine hp at 33 hp hp, compared to 30 hp hp for the Kubota L2800.
Which has more PTO horsepower, the Kubota B3300SU or the Kubota L2800?: They are effectively tied: both machines are rated at 25 hp hp for pto hp.
Which is heavier, the Kubota B3300SU or the Kubota L2800?: The Kubota L2800 leads on weight at 2,600 lb lb, compared to 1,764 lb lb for the Kubota B3300SU.
Which has more loader lift capacity, the Kubota B3300SU or the Kubota L2800?: The Kubota L2800 leads on loader lift at 1,142 lb lb, compared to 1,065 lb lb for the Kubota B3300SU.
Which has more three-point hitch lift capacity, the Kubota B3300SU or the Kubota L2800?: The Kubota L2800 leads on 3-pt lift (24 in) at 1,435 lb lb, compared to 1,400 lb lb for the Kubota B3300SU.
