Across 7 measurable specs, the Kubota L3130 leads 6 categories to 1. Machine pages: Kubota B3300SU and Kubota L3130.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Kubota B3300SU | Kubota L3130 |
|---|
| Engine HP (hp) | ▲ 33 hp | 32.1 hp |
| PTO HP (hp) | 25 hp | ▲ 25.8 hp |
| Weight (lb) | 1,764 lb | ▲ 3,265 lb |
| Loader Lift (lb) | 1,065 lb | ▲ 1,870 lb |
| 3-Pt Lift (24 in) (lb) | 1,400 lb | ▲ 2,650 lb |
| Lift Height (in) | 82.6 in | ▲ 102.4 in |
| Breakout Force (lbf) | n/a | 2,605 lbf |
| Hydraulic Flow (gpm) | 9.9 gpm | ▲ 13.2 gpm |
| Travel Speed (mph) | 11.9 mph | n/a |

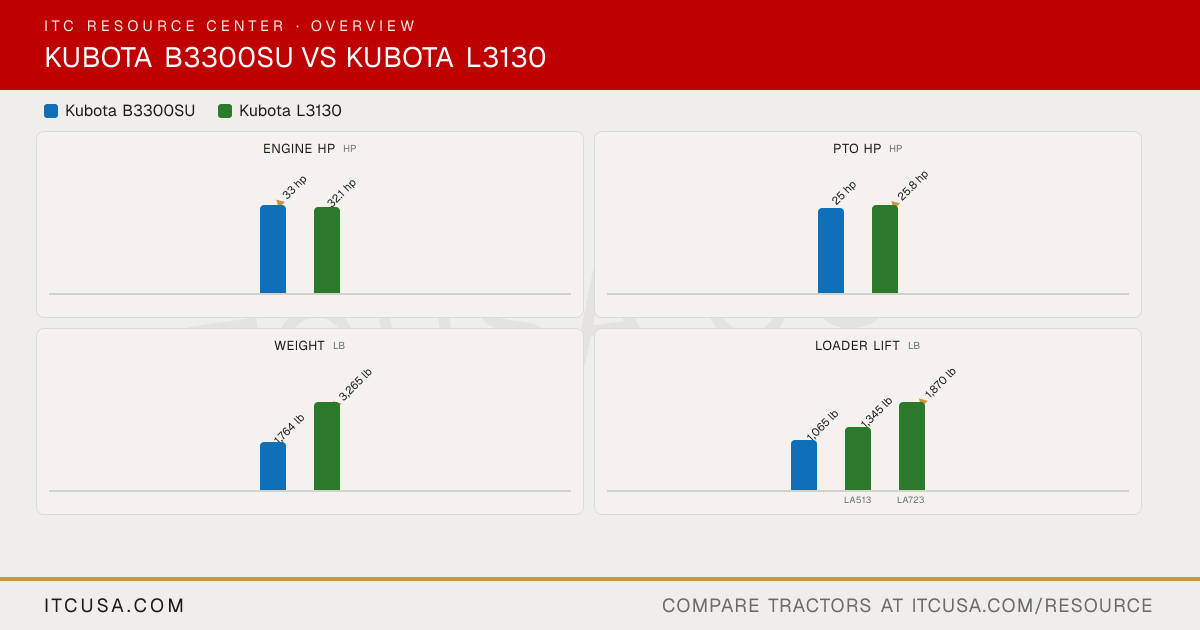

The headline numbers at a glance.
Kubota B3300SUKubota L3130
ITCUSA.COMITCUSA.COMITCUSA.COM
Loader Liftlb
1,065 lb
1,345 lb
▲1,870 lb
LA513LA723
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaB3300SU | KubotaL3130 |
|---|
|
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V1505-E3-D24H | Not Published |
|---|
| Engine Type | Indirect injection, vertical, water-cooled, 4-cycle diesel | Not Published |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 91.5 in³ | 91.5 in³ |
|---|
| Rated Engine Speed | 2700 rpm | Not Published |
|---|
| Engine Power (Gross) | 33 hp | 32.1 hp |
|---|
| PTO Power | 25 hp | 25.8 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Air Cleaner | Dual paper element | Not Published |
|---|
| Fuel System | Indirect injection | Indirect injection |
|---|
| Alternator | 14.5 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Single pump (position-control) |
|---|
| Implement Flow | 6.7 gpm | 8.3 gpm |
|---|
| Steering Flow | 3.2 gpm | 4.9 gpm |
|---|
| Total Hydraulic Flow | 9.9 gpm | 13.2 gpm |
|---|
| Overall Hydraulic Pump Flow | 9.9 gpm | 8.3 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | 1 (optional rear valve) | 3 |
|---|
|
|---|
| Fuel Tank Capacity | 8.1 gal | 10.6 gal |
|---|
| Coolant Capacity | 4.7 qt | 6.3 qt |
|---|
| Crankcase Capacity | 5.7 qt | 6.0 qt |
|---|
| Transmission / Hydraulic System Capacity | 3.83 gal | 11.1 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Live | Independent, hydraulic clutch |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | None (no mid-PTO) | Optional mid-PTO, independent, 2000 rpm |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 1786 lb | 3750 lb (at lift points) |
|---|
| Hitch Lift Capacity (at 24”) | 1400 lb | 2650 lb |
|---|
| Lift Control Type | Quarter inching valve | Position control (with optional draft control) |
|---|
|
|---|
| Transmission Type | Hydrostatic transmission, 3-range | F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option) |
|---|
| No. of Speeds | 3-range | 8F/8R (16F/16R with creep option) |
|---|
| Max Travel Speed (Forward) | 11.9 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 9.5 mph | Not Published |
|---|
| Clutch | Dry single plate | Dry type single stage |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock standard | Not Published |
|---|
|
|---|
| Frame Type | Two-post ROPS (sunshade optional) | Not Published |
|---|
| Steering | Integral type power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disc type | Wet disk type |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | 1100 lb | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 99.2 in (w/o 3P) (without 3-point hitch) | 119.1 in (without 3P) (without 3-point hitch) |
|---|
| Overall Width | 53.7 in | 56.3 in (minimum tread) |
|---|
| Wheelbase | 66.8 in | 71.1 in |
|---|
| Ground Clearance | 14.6 in | 14.6 in |
|---|
| Min. Turn Radius without Brakes | 7.9 ft (w/brake) (with brake applied) | 8.9 ft (w/brake) (with brake applied) |
|---|
| Height to Top of ROPS | 88.4 in | 88.8 in (with ROPS) |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 1764 lb (farm tires); 1786 lb (industrial tires) | 3265 lb (with ROPS) |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | Standard Front: 7-16; Rear: 12.4-24 |
|---|
| R1 Agricultural - Front | 7-12 | 7-16 |
|---|
| R1 Agricultural - Rear | 12.4-16 | 12.4-24 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | 13.6-16 | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | LA513 and LA723 loaders offered |
|---|
| Loader Model | LA504 | LA513; LA723 |
|---|
| Loader Lift Height | LA504: 82.6 in | LA513: 96.5 in; LA723: 102.4 in |
|---|
| Loader Lift Capacity (Full Height) | LA504: 1065 lb | LA513: 1345 lb; LA723: 1870 lb |
|---|
| Loader Breakout Force | Not Published | LA513: 2160 lbf (at 19.7 in); LA723: 2605 lbf (at 19.7 in) (19.7 in forward of pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
Kubota B3300SU vs Kubota L3130: Quick Answers
- Which has more horsepower, the Kubota B3300SU or the Kubota L3130?
- The Kubota B3300SU leads on engine hp at 33 hp hp, compared to 32.1 hp hp for the Kubota L3130.
- Which has more PTO horsepower, the Kubota B3300SU or the Kubota L3130?
- The Kubota L3130 leads on pto hp at 25.8 hp hp, compared to 25 hp hp for the Kubota B3300SU.
- Which is heavier, the Kubota B3300SU or the Kubota L3130?
- The Kubota L3130 leads on weight at 3,265 lb lb, compared to 1,764 lb lb for the Kubota B3300SU.
- Which has more loader lift capacity, the Kubota B3300SU or the Kubota L3130?
- The Kubota L3130 leads on loader lift at 1,870 lb lb, compared to 1,065 lb lb for the Kubota B3300SU.
- Which has more three-point hitch lift capacity, the Kubota B3300SU or the Kubota L3130?
- The Kubota L3130 leads on 3-pt lift (24 in) at 2,650 lb lb, compared to 1,400 lb lb for the Kubota B3300SU.
