Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders
4
4
Displacement
91.5 in³
91.4 in³
Rated Engine Speed
2700 rpm
2700 rpm

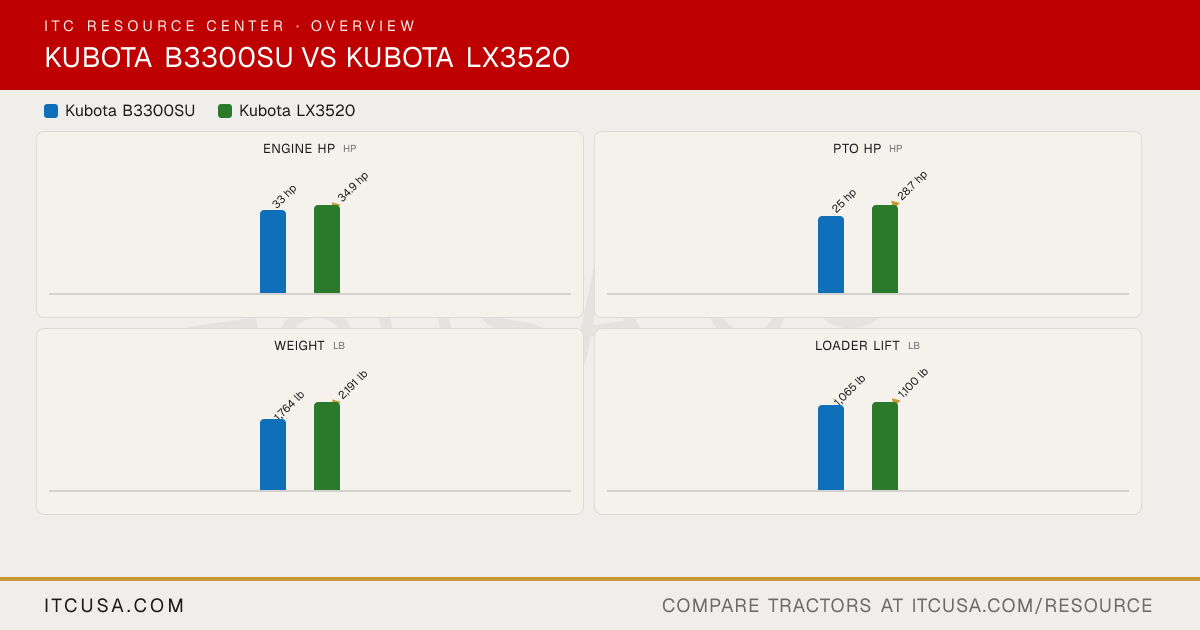

Engine Power (Gross)
33 hp
34.9 hp
PTO Power
25 hp
28.7 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Water-cooled
Pressurized radiator
Air Cleaner
Dual paper element
6 in paper filter (with dual element)
Fuel System
Indirect injection
Direct injection
Alternator
14.5 A, 12 V
Not Published
Pump Type
Not Published
Dual pump
Implement Flow
6.7 gpm
5.4 gpm
Steering Flow
3.2 gpm
4.1 gpm
Total Hydraulic Flow
9.9 gpm
9.5 gpm
Overall Hydraulic Pump Flow
9.9 gpm
9.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
1 (optional rear valve)
Optional, up to 2
Fuel Tank Capacity
8.1 gal
8.5 gal
Coolant Capacity
4.7 qt
4.5 qt
Crankcase Capacity
5.7 qt
5.0 qt
Transmission / Hydraulic System Capacity
3.83 gal
5.5 gal
Front Axle Fluid Capacity
Not Published
4.8 qt
PTO Type
Live
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
None (no mid-PTO)
2460 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
1786 lb
2535 lb
Hitch Lift Capacity (at 24”)
1400 lb
1962 lb
Lift Control Type
Quarter inching valve
Position control valve
Transmission Type
Hydrostatic transmission, 3-range
HST (3 ranges)
No. of Speeds
3-range
HST (3 range)
Max Travel Speed (Forward)
11.9 mph
17.0 mph
Max Travel Speed (Reverse)
9.5 mph
13.0 mph
Clutch
Dry single plate
Not Published
Differential Lock & Limited Slip Options
Rear differential lock standard
Standard
Frame Type
Two-post ROPS (sunshade optional)
Not Published
Steering
Integral type power steering
Hydrostatic power steering
Brakes
Wet disc type
Multi-plate wet disk
Seat Suspension & Adjustability
Not Published
Deluxe suspension seat (high back, designed to absorb shock)
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
1100 lb
Overall Length with 3-Point Hitch
99.2 in (w/o 3P) (without 3-point hitch)
116.1 in
Overall Width
53.7 in
53.7 in
Wheelbase
66.8 in
66.7 in
Ground Clearance
14.6 in
8.9 in
Min. Turn Radius without Brakes
7.9 ft (w/brake) (with brake applied)
7.5 ft (with brake applied)
Height to Top of ROPS
88.4 in
88.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
85.6 in
Tractor Weight (Base)
1764 lb (farm tires); 1786 lb (industrial tires)
2191 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
7-12
180/85D12
R1 Agricultural - Rear
12.4-16
320/85D16
R3 Turf - Front
Not Published
24x8.5-14
R3 Turf - Rear
13.6-16
13.6-16
R4 Industrial - Front
Not Published
23x8.5-12 or 25x8.5-14
R4 Industrial - Rear
Not Published
14-17.5 or 15-19.5
Quick Attach Loader System
Not Published
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
LA504
LA545
Loader Lift Height
LA504: 82.6 in
87.6 in
Loader Lift Capacity (Full Height)
LA504: 1065 lb
1100 lb
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
