Kubota B3350HSDC vs Kubota L2501

Across 9 measurable specs, the Kubota B3350HSDC leads 6 categories to 3. Machine pages: Kubota B3350HSDC and Kubota L2501.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB3350HSDC	KubotaL2501

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V1505-T-E4-D26-Q	D1703-M-DI-E4
Engine Type	E-TVCS, liquid cooled, 4-cylinder diesel	Direct injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	4	3
Displacement	91.5 in³	100.47 in³
Rated Engine Speed	2500 rpm	2200 rpm
Engine Power (Gross)	30.8 hp	24.8 hp
PTO Power	27 hp	19 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized radiator	Water-cooled
Air Cleaner	4.5 in dual paper element	Dry paper single element (dual optional)
Fuel System	Indirect injection	Direct injection
Alternator	60 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Open center tandem pump, gear type
Implement Flow	5 gpm	5.15 gpm
Steering Flow	3.7 gpm	3.13 gpm
Total Hydraulic Flow	8.7 gpm	8.26 gpm
Overall Hydraulic Pump Flow	8.7 gpm	8.26 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	5.0 gpm	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	Not Published	Up to 3 (self canceling detent valve or float detent valve options)
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	10.0 gal
Coolant Capacity	4.5 qt	6.3 qt
Crankcase Capacity	5.1 qt	6.0 qt
Transmission / Hydraulic System Capacity	4.0 gal	6.2 gal
Front Axle Fluid Capacity	5.0 qt	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Live-continuous running
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	No mid-PTO offered
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2139 lb	1918 lb
Hitch Lift Capacity (at 24”)	1676 lb	1389 lb
Lift Control Type	Position control valve	Position control
▶Transmission & Drivetrain
Transmission Type	HST (3 ranges)	Hydrostatic transmission (3-range)
No. of Speeds	3 ranges (HST)	3-range
Max Travel Speed (Forward)	13.6 mph	11.5 mph
Max Travel Speed (Reverse)	10.3 mph	10.3 mph
Clutch	N/A (hydrostatic transmission)	Not Applicable
Differential Lock & Limited Slip Options	Differential lock standard	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	4-pillar integrated cab	Not Published
Steering	Hydraulic power steering	Integral type power steering
Brakes	Multi-plate wet disc	Wet disc type
Seat Suspension & Adjustability	Parallel link with damper seat suspension	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	4WD, selectable (front wheel drive lever)	Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	2865 lb (at 43.1 in tread)
Drawbar Capacity	Max. drawbar load: 1100 lb	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	103.9 in (without 3-point hitch)	106.3 in (without 3-point hitch)
Overall Width	53.7 in	55.1 in
Wheelbase	65.6 in	63.3 in
Ground Clearance	14.6 in	13.4 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	Not Published	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2447 lb	2623 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R4 Industrial
R1 Agricultural - Front	7-12	7.2-16
R1 Agricultural - Rear	12.4-16	11.2-24
R3 Turf - Front	24x8.50-14	Not Published
R3 Turf - Rear	13.6-16	Not Published
R4 Industrial - Front	23x8.50-14 or 25x8.50-14	27X8.50-15
R4 Industrial - Rear	12.4-16 or 15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	LA534A loader; 2-lever quick coupler optional	Front Loader (LA525 - 2 Lever Quick Coupler)
Loader Model	LA534A	LA525
Loader Lift Height	84.6 in	94.3 in
Loader Lift Capacity (Full Height)	1146 lb	1131 lb
Loader Breakout Force	2321 lbf	2373 lbf
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota B2650/B3350 Brush Guard Insert $259.00	Kubota Standard L & MX Series Brush Guard Insert Kit $269.00

Find a Kubota dealer near you→

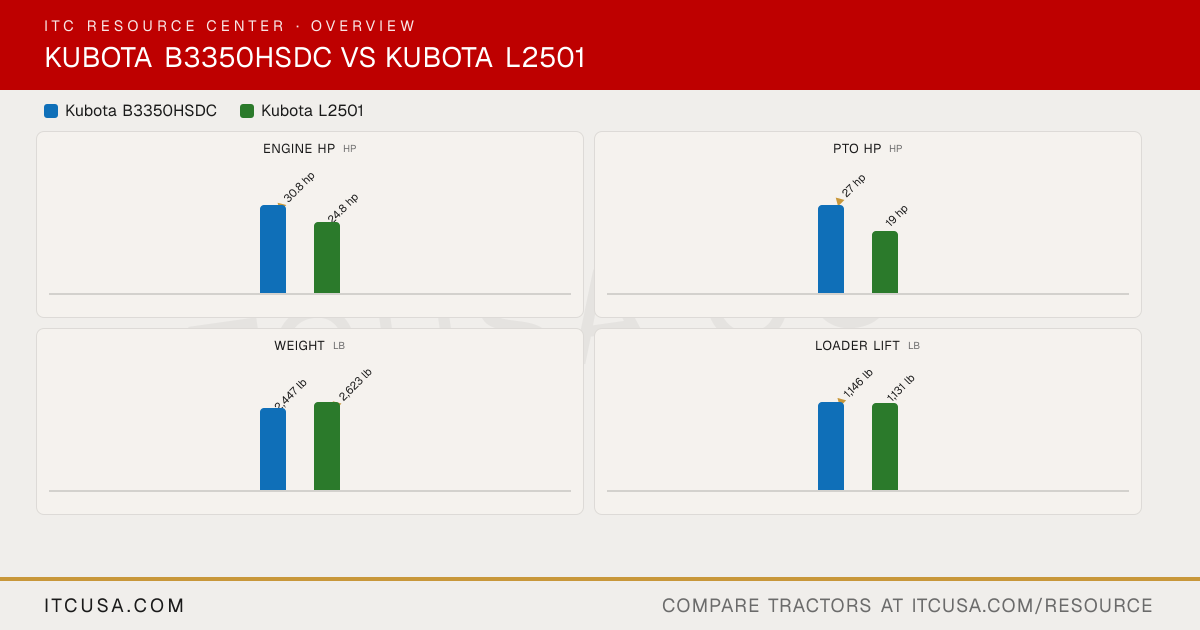

Kubota B3350HSDC vs Kubota L2501: Quick Answers

Which has more horsepower, the Kubota B3350HSDC or the Kubota L2501?

The Kubota B3350HSDC leads on engine hp at 30.8 hp hp, compared to 24.8 hp hp for the Kubota L2501.

Which has more PTO horsepower, the Kubota B3350HSDC or the Kubota L2501?

The Kubota B3350HSDC leads on pto hp at 27 hp hp, compared to 19 hp hp for the Kubota L2501.

Which is heavier, the Kubota B3350HSDC or the Kubota L2501?

The Kubota L2501 leads on weight at 2,623 lb lb, compared to 2,447 lb lb for the Kubota B3350HSDC.

Which has more loader lift capacity, the Kubota B3350HSDC or the Kubota L2501?

The Kubota B3350HSDC leads on loader lift at 1,146 lb lb, compared to 1,131 lb lb for the Kubota L2501.

Which has more three-point hitch lift capacity, the Kubota B3350HSDC or the Kubota L2501?

The Kubota B3350HSDC leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,389 lb lb for the Kubota L2501.
