Kubota B3350HSDC vs Kubota L3130

Across 8 measurable specs, the Kubota L3130 leads 7 categories to 1. Machine pages: Kubota B3350HSDC and Kubota L3130.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB3350HSDC	KubotaL3130

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V1505-T-E4-D26-Q	Not Published
Engine Type	4-cylinder, indirect injection, liquid-cooled diesel	Not Published
No. of Cylinders	4	3
Displacement	91.5 in³	91.5 in³
Rated Engine Speed	2500 rpm	Not Published
Engine Power (Gross)	30.8 hp	32.1 hp
PTO Power	27 hp	25.8 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Pressurized radiator	Not Published
Air Cleaner	4.5 in dual paper element	Not Published
Fuel System	Indirect injection	Indirect injection
Alternator	60 A, 12 V	Not Published
▶Hydraulics
Pump Type	Dual pump	Single pump (position-control)
Implement Flow	5 gpm	8.3 gpm
Steering Flow	3.7 gpm	4.9 gpm
Total Hydraulic Flow	8.7 gpm	13.2 gpm
Overall Hydraulic Pump Flow	8.7 gpm	13.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	5.0 gpm	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	Not Published	3
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	10.6 gal
Coolant Capacity	4.5 qt	6.3 qt
Crankcase Capacity	5.1 qt	6.0 qt
Transmission / Hydraulic System Capacity	4.0 gal	11.1 gal
Front Axle Fluid Capacity	5.0 qt	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent, hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	Optional mid-PTO, independent, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,139 lb	3,750 lb (at lift points)
Hitch Lift Capacity (at 24”)	1,676 lb	2,650 lb
Lift Control Type	Position control valve	Position control (with optional draft control)
▶Transmission & Drivetrain
Transmission Type	HST (3 ranges)	F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option)
No. of Speeds	3 ranges (HST)	8F/8R (16F/16R with creep option)
Max Travel Speed (Forward)	13.6 mph	Not Published
Max Travel Speed (Reverse)	10.3 mph	Not Published
Clutch	N/A (hydrostatic transmission)	Dry type single stage
Differential Lock & Limited Slip Options	Differential lock standard	Not Published
▶Chassis, Steering & Controls
Frame Type	4-pillar integrated cab	Not Published
Steering	Hydraulic power steering	Hydrostatic power steering
Brakes	Multi-plate wet disc	Wet disk type
Seat Suspension & Adjustability	Parallel link with damper seat suspension	Not Published
Front Axle Type	4WD (front wheel drive lever)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Max. drawbar load: 1,100 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	53.7 in	56.3 in (minimum tread)
Wheelbase	65.6 in	71.1 in
Ground Clearance	14.6 in	14.6 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	8.9 ft (with brake applied)
Height to Top of ROPS	Not Published	88.8 in (with ROPS)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	Not Published	119.1 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	2,447 lb	3,265 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm, Turf, Industrial	Standard Front: 7-16; Rear: 12.4-24
R1 Agricultural - Front	7-12	7-16
R1 Agricultural - Rear	12.4-16	12.4-24
R3 Turf - Front	24x8.50-14	Not Published
R3 Turf - Rear	13.6-16	Not Published
R4 Industrial - Front	23x8.50-14 or 25x8.50-14	Not Published
R4 Industrial - Rear	12.4-16 or 15-19.5	Not Published
▶Loader & Attachments
Quick Attach Loader System	LA534A loader; 2-lever quick coupler optional	LA513 and LA723 loaders offered
Loader Model	LA534A	LA513; LA723
Loader Lift Height	84.6 in (at pivot pin)	LA513: 96.5 in; LA723: 102.4 in
Loader Lift Capacity (Full Height)	1,146 lb (at pivot pin)	LA513: 1,345 lb; LA723: 1,870 lb
Loader Breakout Force	2,321 lbf (at pivot pin)	LA513: 2,160 lbf (at 19.7 in); LA723: 2,605 lbf (at 19.7 in) (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota B2650/B3350 Brush Guard Insert $259.00	None tagged yet

Find a Kubota dealer near you→

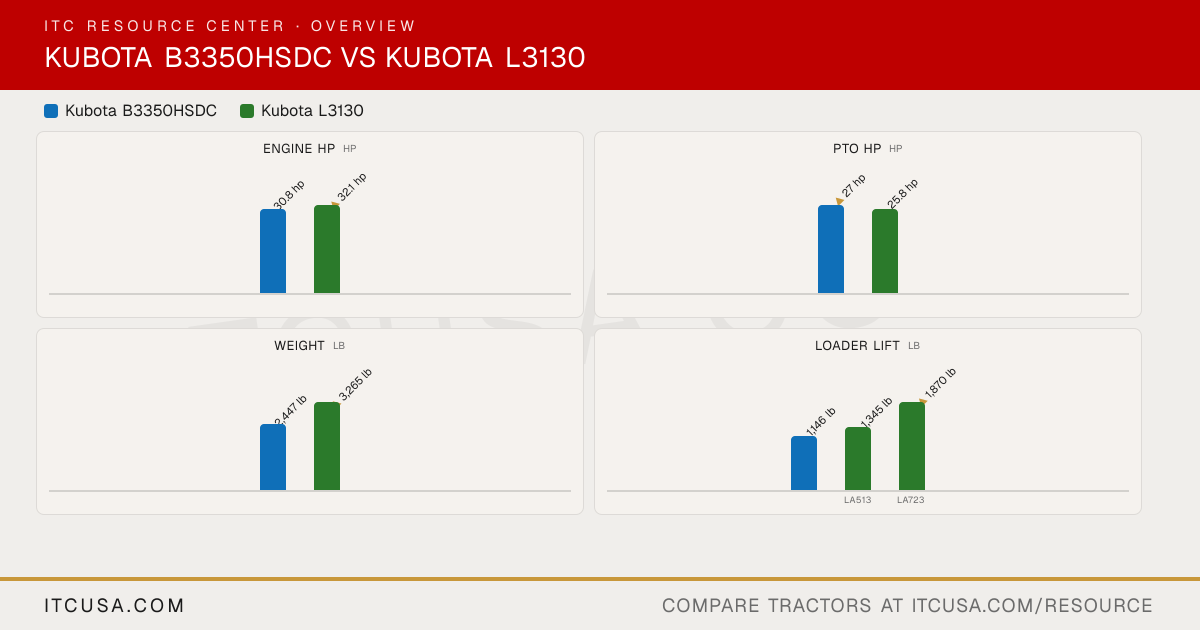

Kubota B3350HSDC vs Kubota L3130: Quick Answers

Which has more horsepower, the Kubota B3350HSDC or the Kubota L3130?

The Kubota L3130 leads on engine hp at 32.1 hp hp, compared to 30.8 hp hp for the Kubota B3350HSDC.

Which has more PTO horsepower, the Kubota B3350HSDC or the Kubota L3130?

The Kubota B3350HSDC leads on pto hp at 27 hp hp, compared to 25.8 hp hp for the Kubota L3130.

Which is heavier, the Kubota B3350HSDC or the Kubota L3130?

The Kubota L3130 leads on weight at 3,265 lb lb, compared to 2,447 lb lb for the Kubota B3350HSDC.

Which has more loader lift capacity, the Kubota B3350HSDC or the Kubota L3130?

The Kubota L3130 leads on loader lift at 1,870 lb lb, compared to 1,146 lb lb for the Kubota B3350HSDC.

Which has more three-point hitch lift capacity, the Kubota B3350HSDC or the Kubota L3130?

The Kubota L3130 leads on 3-pt lift (24 in) at 2,650 lb lb, compared to 1,676 lb lb for the Kubota B3350HSDC.
