Kubota B3350HSDC vs Kubota L3301

Across 9 measurable specs, the Kubota L3301 leads 6 categories to 3. Machine pages: Kubota B3350HSDC and Kubota L3301.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB3350HSDC	KubotaL3301

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V1505-T-E4-D26-Q	F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2
Engine Type	4-cylinder, indirect injection, liquid-cooled diesel	3-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel
No. of Cylinders	4	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	2500 rpm	2700 rpm
Engine Power (Gross)	30.8 hp	33 hp
PTO Power	27 hp	F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Pressurized radiator	Liquid-cooled, water with pressurized radiator
Air Cleaner	4.5 in dual paper element	Dry paper single element
Fuel System	Indirect injection	Common-rail, direct injection, electronic control
Alternator	60 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Open center tandem pump, gear type
Implement Flow	5 gpm	6.3 gpm
Steering Flow	3.7 gpm	3.8 gpm
Total Hydraulic Flow	8.7 gpm	10.1 gpm
Overall Hydraulic Pump Flow	8.7 gpm	10.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	5.0 gpm	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	Not Published	Up to 3: self-canceling detent valve or float detent valve
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	11.1 gal
Coolant Capacity	4.5 qt	6.3 qt
Crankcase Capacity	5.1 qt	7.1 qt
Transmission / Hydraulic System Capacity	4.0 gal	F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal
Front Axle Fluid Capacity	5.0 qt	4.8 qt
▶PTO & Hitch
PTO Type	Independent	F (2WD gear), DT (4WD gear): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	No mid-PTO offered
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,139 lb	1,874 lb (at lift points)
Hitch Lift Capacity (at 24”)	1,676 lb	1,433 lb
Lift Control Type	Position control valve	Position control
▶Transmission & Drivetrain
Transmission Type	HST (3 ranges)	F (2WD gear), DT (4WD gear): manual transmission with synchronized shuttle; HST (4WD): hydrostatic transmission
No. of Speeds	3 ranges (HST)	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range
Max Travel Speed (Forward)	13.6 mph	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	10.3 mph	F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph
Clutch	N/A (hydrostatic transmission)	Dry type single stage
Differential Lock & Limited Slip Options	Differential lock standard	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	4-pillar integrated cab	Two-post foldable ROPS (factory certified) with retractable seat belt
Steering	Hydraulic power steering	Integral power steering
Brakes	Multi-plate wet disc	Mechanical wet disc type, pedals can be locked together
Seat Suspension & Adjustability	Parallel link with damper seat suspension	Not Published
Front Axle Type	4WD (front wheel drive lever)	F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	2,865 lb (at 41.3 in tread, 2WD and 4WD models)
Drawbar Capacity	Max. drawbar load: 1,100 lb	730 lb
▶Dimensions & Maneuverability
Overall Width	53.7 in	55.1 in
Wheelbase	65.6 in	63.3 in
Ground Clearance	14.6 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft
Height to Top of ROPS	Not Published	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	Not Published	F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,447 lb	F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Farm, Turf, Industrial	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)
R1 Agricultural - Front	7-12	F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16
R1 Agricultural - Rear	12.4-16	11.2-24
R3 Turf - Front	24x8.50-14	F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23x8.50-14 or 25x8.50-14	27x8.5-15 (4WD)
R4 Industrial - Rear	12.4-16 or 15-19.5	15-19.5 (4WD)
▶Loader & Attachments
Quick Attach Loader System	LA534A loader; 2-lever quick coupler optional	LA525: 2-lever quick coupler, tool-free attach and detach
Loader Model	LA534A	LA525
Loader Lift Height	84.6 in (at pivot pin)	LA525: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,146 lb (at pivot pin)	LA525: 1,131 lb (at pivot pin, maximum height)
Loader Breakout Force	2,321 lbf (at pivot pin)	LA525: 2,462 lbf (at bucket pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	24 months or 1500 hours (general)
▶ITC Company Accessories
Accessories that fit	Kubota B2650/B3350 Brush Guard Insert $259.00	None tagged yet

Find a Kubota dealer near you→

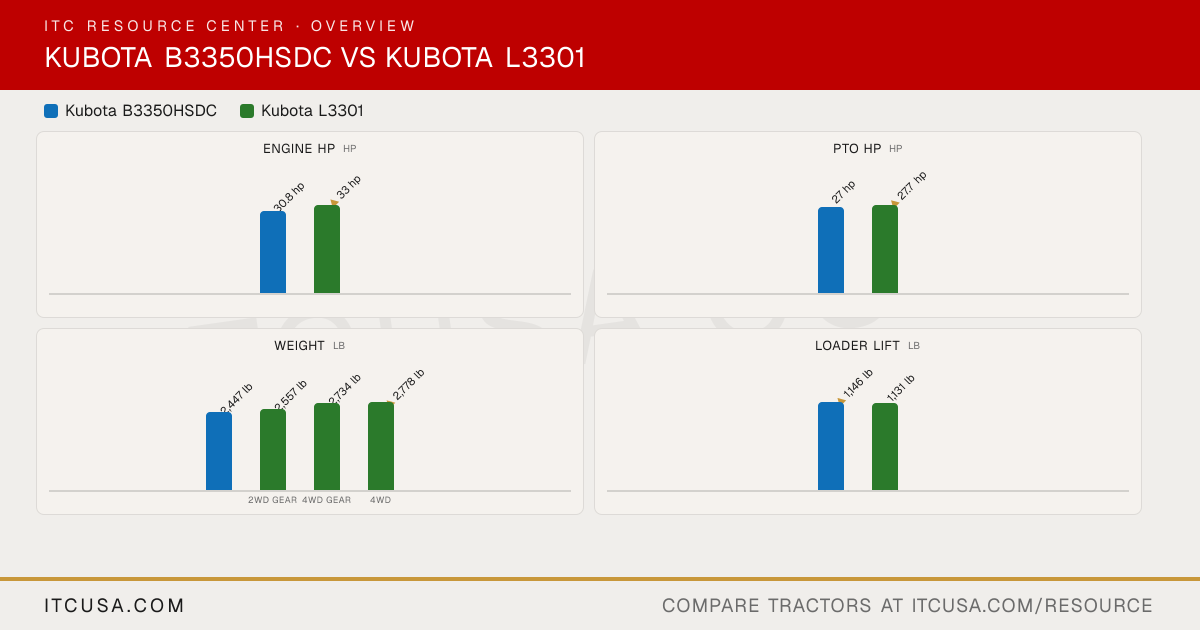

Kubota B3350HSDC vs Kubota L3301: Quick Answers

Which has more horsepower, the Kubota B3350HSDC or the Kubota L3301?

The Kubota L3301 leads on engine hp at 33 hp hp, compared to 30.8 hp hp for the Kubota B3350HSDC.

Which has more PTO horsepower, the Kubota B3350HSDC or the Kubota L3301?

The Kubota L3301 leads on pto hp at 27.7 hp hp, compared to 27 hp hp for the Kubota B3350HSDC.

Which is heavier, the Kubota B3350HSDC or the Kubota L3301?

The Kubota L3301 leads on weight at 2,778 lb lb, compared to 2,447 lb lb for the Kubota B3350HSDC.

Which has more loader lift capacity, the Kubota B3350HSDC or the Kubota L3301?

The Kubota B3350HSDC leads on loader lift at 1,146 lb lb, compared to 1,131 lb lb for the Kubota L3301.

Which has more three-point hitch lift capacity, the Kubota B3350HSDC or the Kubota L3301?

The Kubota B3350HSDC leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,433 lb lb for the Kubota L3301.
