Kubota B3350HSDC vs Kubota L3302

Across 8 measurable specs, the Kubota L3302 leads 5 categories to 3. Machine pages: Kubota B3350HSDC and Kubota L3302.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

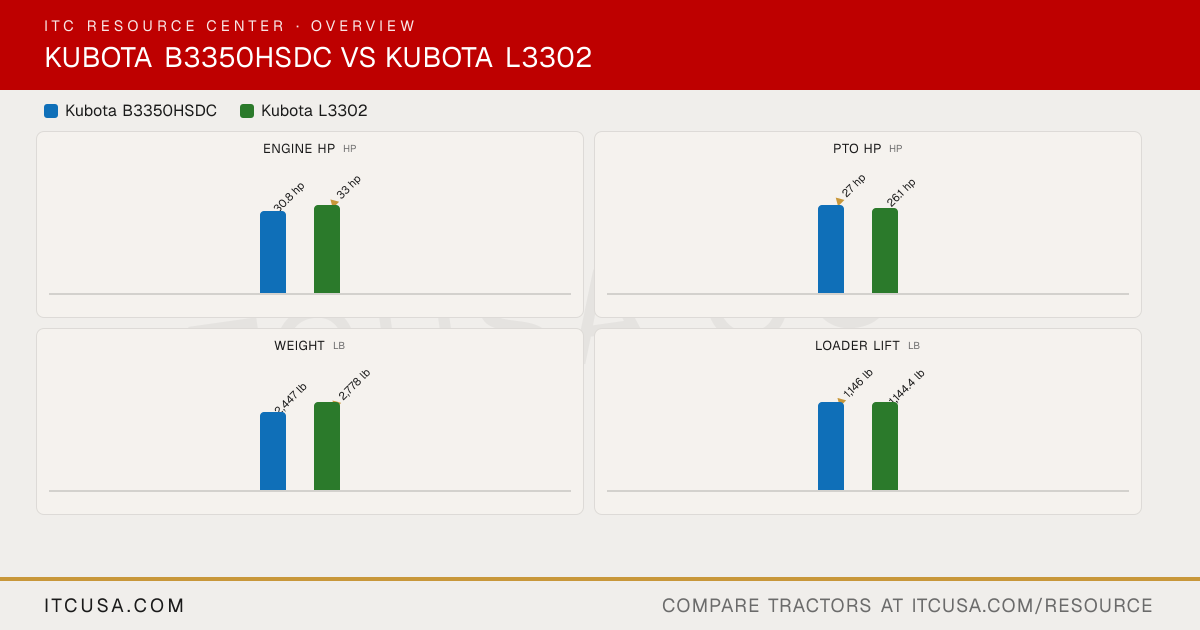

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB3350HSDC	KubotaL3302

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V1505-T-E4-D26-Q	D1803-CR-E5
Engine Type	E-TVCS, liquid cooled, 4-cylinder diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	4	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	2500 rpm	2700 rpm
Engine Power (Gross)	30.8 hp	33 hp
PTO Power	27 hp	26.1 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Pressurized radiator	Water-cooled
Air Cleaner	4.5 in dual paper element	Dry type, single element
Fuel System	Indirect injection	Direct injection
Alternator	60 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Dual pump	Not Published
Implement Flow	5 gpm	6.3 gpm
Steering Flow	3.7 gpm	3.8 gpm
Total Hydraulic Flow	8.7 gpm	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	8.7 gpm	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	5.0 gpm	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.1 gal	11.1 gal
Coolant Capacity	4.5 qt	6.3 qt
Crankcase Capacity	5.1 qt	7.1 qt
Transmission / Hydraulic System Capacity	4.0 gal	6.9 gal
Front Axle Fluid Capacity	5.0 qt	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	2139 lb	1998 lb
Hitch Lift Capacity (at 24”)	1676 lb	1435 lb
Lift Control Type	Position control valve	Position control
▶Transmission & Drivetrain
Transmission Type	HST (3 ranges)	Hydrostatic transmission (3-range)
No. of Speeds	3 ranges (HST)	3-range
Max Travel Speed (Forward)	13.6 mph	14.1 mph
Max Travel Speed (Reverse)	10.3 mph	12.7 mph
Clutch	N/A (hydrostatic transmission)	Not Applicable
Differential Lock & Limited Slip Options	Differential lock standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	4-pillar integrated cab	Not Published
Steering	Hydraulic power steering	Integral type power steering
Brakes	Multi-plate wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Parallel link with damper seat suspension	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	4WD, selectable (front wheel drive lever)	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Max. drawbar load: 1100 lb	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	103.9 in (without 3-point hitch)	108.5 in (without 3-point hitch)
Overall Width	53.7 in	55.1 in
Wheelbase	65.6 in	63.4 in
Ground Clearance	14.6 in	13.4 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	Not Published	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2447 lb	2778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-12	7.2-16
R1 Agricultural - Rear	12.4-16	11.2-24
R3 Turf - Front	24x8.50-14	25X8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23x8.50-14 or 25x8.50-14	27X8.50-15
R4 Industrial - Rear	12.4-16 or 15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	LA534A loader; 2-lever quick coupler optional	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA534A	LA526
Loader Lift Height	84.6 in	94.8 in
Loader Lift Capacity (Full Height)	1146 lb	1144.4 lb
Loader Breakout Force	2321 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota B2650/B3350 Brush Guard Insert $259.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota B3350HSDC vs Kubota L3302: Quick Answers

Which has more horsepower, the Kubota B3350HSDC or the Kubota L3302?

The Kubota L3302 leads on engine hp at 33 hp hp, compared to 30.8 hp hp for the Kubota B3350HSDC.

Which has more PTO horsepower, the Kubota B3350HSDC or the Kubota L3302?

The Kubota B3350HSDC leads on pto hp at 27 hp hp, compared to 26.1 hp hp for the Kubota L3302.

Which is heavier, the Kubota B3350HSDC or the Kubota L3302?

The Kubota L3302 leads on weight at 2,778 lb lb, compared to 2,447 lb lb for the Kubota B3350HSDC.

Which has more loader lift capacity, the Kubota B3350HSDC or the Kubota L3302?

The Kubota B3350HSDC leads on loader lift at 1,146 lb lb, compared to 1,144.4 lb lb for the Kubota L3302.

Which has more three-point hitch lift capacity, the Kubota B3350HSDC or the Kubota L3302?

The Kubota B3350HSDC leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,435 lb lb for the Kubota L3302.
