Kubota B7500 vs Kubota BX2360

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kubota B7500, 4 to the Kubota BX2360. Machine pages: Kubota B7500 and Kubota BX2360.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota B7500	Kubota BX2360
Engine HP (hp)	21 hp	▲ 23 hp
PTO HP (hp)	17 hp	▲ 17.7 hp
Weight (lb)	▲ 1,367 lb	1,322 lb
Loader Lift (lb)	▲ 770 lb	750 lb
3-Pt Lift (24 in) (lb)	▲ 1,058 lb	670 lb
Lift Height (in)	69.7 in	▲ 71.3 in
Breakout Force (lbf)	1,120 lbf	▲ 1,415 lbf
Hydraulic Flow (gpm)	▲ 7 gpm	6.3 gpm
Travel Speed (mph)	n/a	8.4 mph

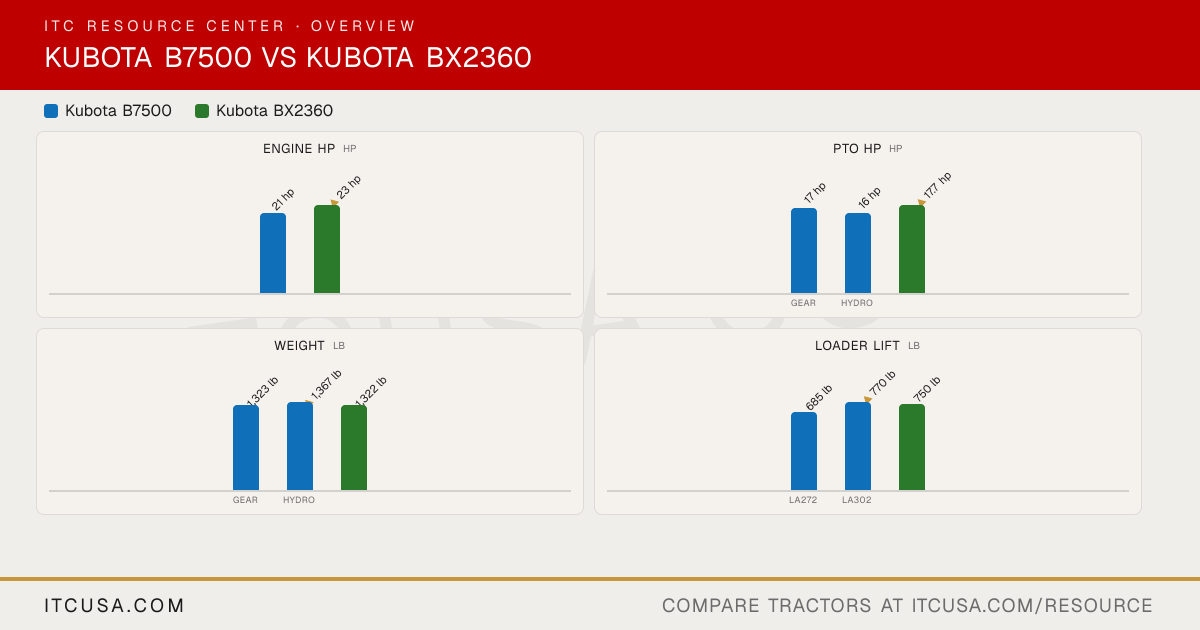

The headline numbers at a glance.

Kubota B7500Kubota BX2360

Engine HPhp

21 hp

▲23 hp

PTO HPhp

17 hp

16 hp

▲17.7 hp

GearHydro

Weightlb

1,323 lb

▲1,367 lb

1,322 lb

GearHydro

Loader Liftlb

685 lb

▲770 lb

750 lb

LA272LA302

3-Pt Lift (24 in)lb

▲1,058 lb

670 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB7500	KubotaBX2360


Engine Manufacturer	Kubota	Kubota
Engine Model	D1005-E-D16	D902
Engine Type	Diesel, 3-cylinder, liquid-cooled	Liquid-cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	61.1 in³	54.8 in³
Rated Engine Speed	2600 rpm	3200 rpm
Engine Power (Gross)	21 hp	23 hp
PTO Power	Gear: 17 hp; Hydro: 16 hp	17.7 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dual paper element	Not Published
Fuel System	Not Published	Indirect injection
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	Not Published	Not Published
Steering Flow	Not Published	Not Published
Total Hydraulic Flow	7 gpm	6.3 gpm
Overall Hydraulic Pump Flow	Not Published	6.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	5 gal	6.6 gal
Coolant Capacity	4 qt	2.8 qt
Crankcase Capacity	3.2 qt	3.3 qt
Transmission / Hydraulic System Capacity	Not Published	3.06 gal
Front Axle Fluid Capacity	3.4 qt	Not Published

PTO Type	Gear: transmission-driven; Hydro: independent	Live independent, wet hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Mid-PTO, 2500 rpm	Standard mid-PTO, 2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1356 lb	1210 lb
Hitch Lift Capacity (at 24”)	1058 lb	670 lb
Lift Control Type	Directional control	Directional control with auto-return lever

Transmission Type	6-speed gear; hydrostatic	Hydrostatic transmission with High-Low gear shift, 2-range
No. of Speeds	Gear: 6 forward, 2 reverse; Hydro: infinite (2-range)	2-range
Max Travel Speed (Forward)	Not Published	8.4 mph
Max Travel Speed (Reverse)	Not Published	6.2 mph
Clutch	Dry disc (gear)	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock standard

Frame Type	Two-post ROPS	Two-post ROPS (foldable ROPS on BX25 only)
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Spur gear final drives	Selectable 2WD and 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	90.4 in	95.5 in
Overall Width	42.4 in	44.5 in
Wheelbase	59 in	55.1 in
Ground Clearance	12 in	8.7 in
Min. Turn Radius without Brakes	Not Published	7.5 ft
Height to Top of ROPS	76.4 in	70.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 1323 lb; Hydro: 1367 lb	1322 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard farm 6-12 front, 9.5-16 rear	Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear
R1 Agricultural - Front	6-12	18x8.5-10
R1 Agricultural - Rear	9.5-16	26x12-12
R3 Turf - Front	Not Published	18x8.5-10
R3 Turf - Rear	Not Published	26x12-12
R4 Industrial - Front	Not Published	18x8.5-10
R4 Industrial - Rear	Not Published	26x12-12

Quick Attach Loader System	LA272 and LA302 loaders offered	Not Published
Loader Model	LA272; LA302	LA243
Loader Lift Height	LA272: 69.7 in; LA302: 69.5 in	LA243: 71.3 in
Loader Lift Capacity (Full Height)	LA272: 685 lb; LA302: 770 lb	LA243: 750 lb
Loader Breakout Force	LA272: 1003 lbf; LA302: 1120 lbf	LA243: 1415 lbf

Warranty Length & Coverage	Not Published	Not Published

Find a Kubota dealer near you

Kubota B7500 vs Kubota BX2360: Quick Answers

Which has more horsepower, the Kubota B7500 or the Kubota BX2360?: The Kubota BX2360 leads on engine hp at 23 hp hp, compared to 21 hp hp for the Kubota B7500.
Which has more PTO horsepower, the Kubota B7500 or the Kubota BX2360?: The Kubota BX2360 leads on pto hp at 17.7 hp hp, compared to 17 hp hp for the Kubota B7500.
Which is heavier, the Kubota B7500 or the Kubota BX2360?: The Kubota B7500 leads on weight at 1,367 lb lb, compared to 1,322 lb lb for the Kubota BX2360.
Which has more loader lift capacity, the Kubota B7500 or the Kubota BX2360?: The Kubota B7500 leads on loader lift at 770 lb lb, compared to 750 lb lb for the Kubota BX2360.
Which has more three-point hitch lift capacity, the Kubota B7500 or the Kubota BX2360?: The Kubota B7500 leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 670 lb lb for the Kubota BX2360.
