Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kubota B7500, 4 to the Kubota BX25D. Machine pages: Kubota B7500 and Kubota BX25D .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Kubota B7500 Kubota BX25D Engine HP (hp) 21 hp ▲ 23 hpPTO HP (hp) 17 hp ▲ 17.5 hpWeight (lb) 1,367 lb ▲ 1,587 lbLoader Lift (lb) ▲ 770 lb745 lb 3-Pt Lift (24 in) (lb) ▲ 1,058 lb670 lb Lift Height (in) 69.7 in ▲ 71.3 inBreakout Force (lbf) ▲ 1,120 lbf992 lbf Hydraulic Flow (gpm) ▲ 7 gpm6.2 gpm

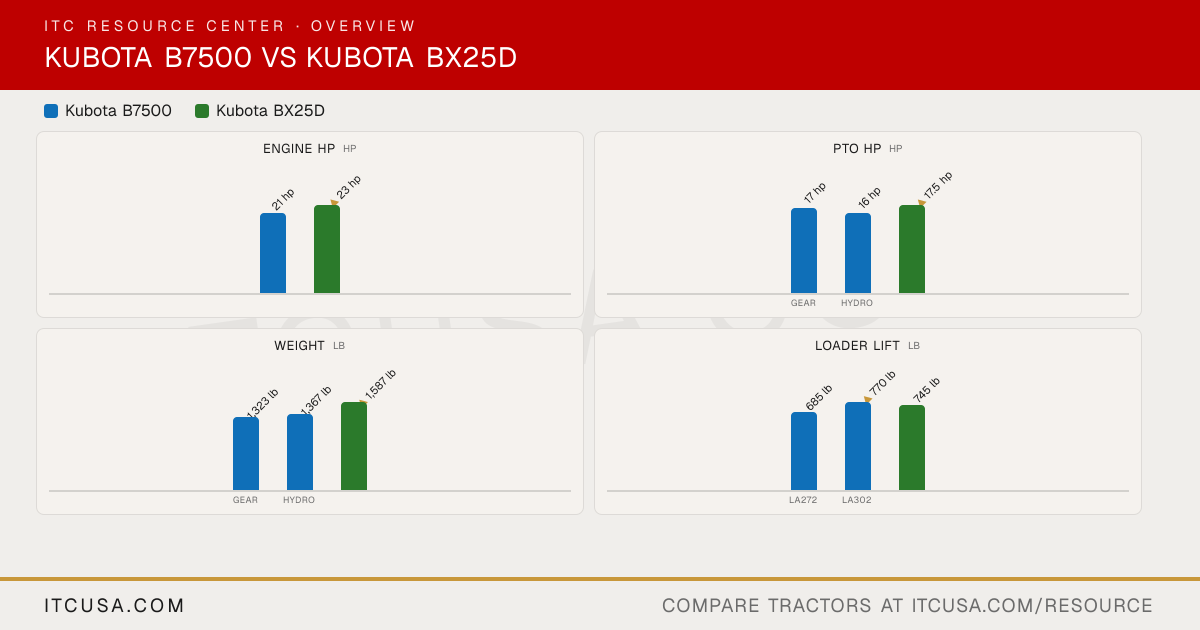

Overview Loader Work PTO Work
The headline numbers at a glance.
Kubota B7500 Kubota BX25D
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
1,323 lb
1,367 lb
▲ 1,587 lb
Gear Hydro
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Kubota B7500 Kubota BX25D
▶ EngineEngine Manufacturer Kubota Kubota Engine Model D1005-E-D16 D902 Engine Type Diesel, 3-cylinder, liquid-cooled Diesel, 3-cylinder, liquid-cooled inline No. of Cylinders 3 3 Displacement 61.1 in³ 54.8 in³ Rated Engine Speed 2600 rpm 3200 rpm Engine Power (Gross) 21 hp 23 hp PTO Power Gear: 17 hp; Hydro: 16 hp 17.5 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual paper element Not Published Fuel System Not Published Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow Not Published 6.2 gpm Steering Flow Not Published Not Published Total Hydraulic Flow 7 gpm Not Published Overall Hydraulic Pump Flow Not Published 6.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 5 gal 6.6 gal Coolant Capacity 4 qt 2.8 qt Crankcase Capacity 3.2 qt 3.3 qt Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity 3.4 qt Not Published ▶ PTO & HitchPTO Type Gear: transmission-driven; Hydro: independent Independent (rear); independent (mid) PTO Rear 540 rpm 540 rpm Mid-PTO Availability Mid-PTO, 2500 rpm Mid-PTO, 2500 rpm Category, 3-Point Hitch Category I Category I (optional) Hitch Lift Capacity 1356 lb 992 lb Hitch Lift Capacity (at 24”) 1058 lb 670 lb Lift Control Type Directional control Position control ▶ Transmission & DrivetrainTransmission Type 6-speed gear; hydrostatic Not Published No. of Speeds Gear: 6 forward, 2 reverse; Hydro: infinite (2-range) Not Published Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry disc (gear) Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS Two-post folding ROPS (canopy optional) Steering Power steering Hydrostatic type power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Spur gear final drives Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 551 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 90.4 in 95.5 in (tractor alone) Overall Width 42.4 in 44.5 in Wheelbase 59 in 55.1 in Ground Clearance 12 in 8.7 in (front axle) Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 76.4 in 87.2 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Gear: 1323 lb; Hydro: 1367 lb 1587 lb (tractor only) Weight with ROPS and Loader Not Published 2475 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard farm 6-12 front, 9.5-16 rear 18x8.5-10 front, 26x12-12 rear (Turf/Bar/Industrial) R1 Agricultural - Front 6-12 Not Published R1 Agricultural - Rear 9.5-16 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 18x8.5-10 R4 Industrial - Rear Not Published 26x12-12 ▶ Loader & AttachmentsQuick Attach Loader System LA272 and LA302 loaders offered LA240A quick attach loader Loader Model LA272; LA302 LA240A; LA240A AU-SG (spill guard) Loader Lift Height LA272: 69.7 in; LA302: 69.5 in LA240A: 71.3 in (at pin) Loader Lift Capacity (Full Height) LA272: 685 lb; LA302: 770 lb LA240A: 745 lb (at pin) Loader Breakout Force LA272: 1003 lbf; LA302: 1120 lbf LA240A: 992 lb (at 19.7 in) (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
Kubota B7500 vs Kubota BX25D: Quick Answers
Which has more horsepower, the Kubota B7500 or the Kubota BX25D? The Kubota BX25D leads on engine hp at 23 hp hp, compared to 21 hp hp for the Kubota B7500.
Which has more PTO horsepower, the Kubota B7500 or the Kubota BX25D? The Kubota BX25D leads on pto hp at 17.5 hp hp, compared to 17 hp hp for the Kubota B7500.
Which is heavier, the Kubota B7500 or the Kubota BX25D? The Kubota BX25D leads on weight at 1,587 lb lb, compared to 1,367 lb lb for the Kubota B7500.
Which has more loader lift capacity, the Kubota B7500 or the Kubota BX25D? The Kubota B7500 leads on loader lift at 770 lb lb, compared to 745 lb lb for the Kubota BX25D.
Which has more three-point hitch lift capacity, the Kubota B7500 or the Kubota BX25D? The Kubota B7500 leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 670 lb lb for the Kubota BX25D. More Head-to-Heads
