Kubota BX1880 vs Mahindra 1120 HST Cab

Across 8 measurable specs, the Mahindra 1120 HST Cab leads 6 categories to 2. Machine pages: Kubota BX1880 and Mahindra 1120 HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

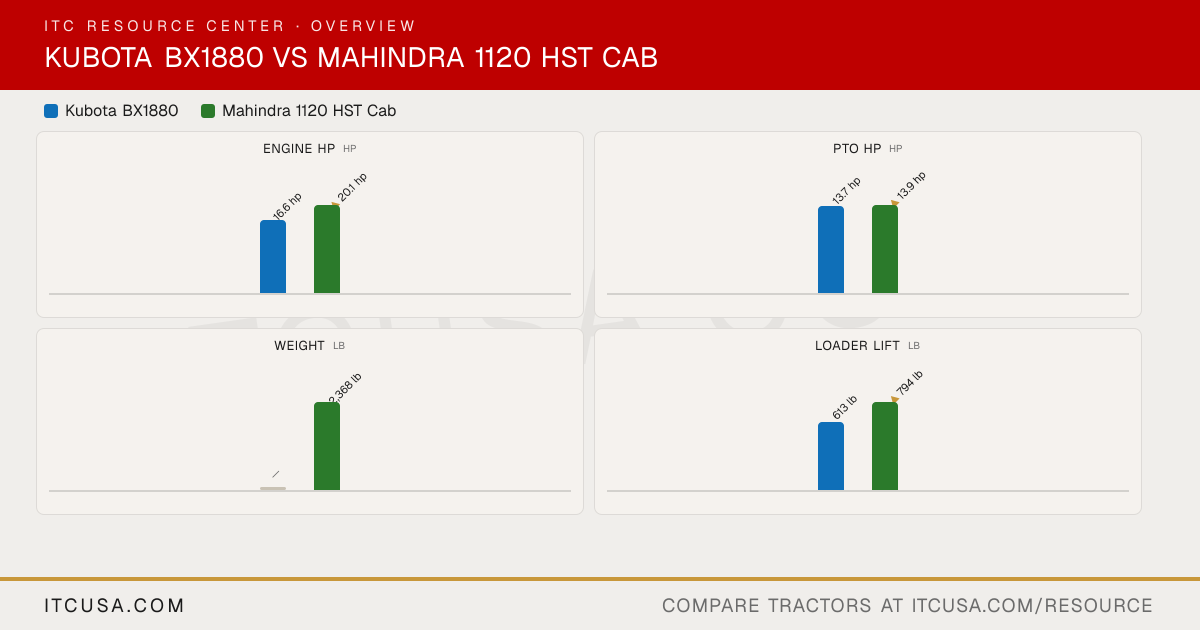

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX1880	Mahindra1120 HST Cab

▶Engine
PTO Power	13.7 hp	13.9 hp
Alternator	40 A, 12 V	55 A, 12 V
Air Cleaner	Sheet net and replaceable treated paper element, spin on oil filter	Not Published
Engine Type	Liquid cooled, 4-cycle, diesel	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Fuel System	Direct injection	Indirect Injection
Displacement	43.9 in³	67.2 in³
No. of Cylinders	3	3
Rated Engine Speed	3200 rpm	2900 rpm
Cooling System Type	Water with pressurized radiator, reverse air-flow design	Water-Cooled
Engine Manufacturer	Kubota	Mitsubishi
Engine Power (Gross)	16.6 hp	20.1 hp @ 900 rpm
Engine Emissions Constraints	Not Published	No DPF
▶Weight
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	2368 lb
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	7-Year Limited Powertrain Warranty
▶Hydraulics
Pump Type	Open center tandem pump gear type	Not Published
Steering Flow	1.0 gpm	3.8 gpm
Implement Flow	5.2 gpm	7.6 gpm
Total Hydraulic Flow	6.2 gpm	11.4 gpm
Hydraulic System Type	Open center	Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.2 gpm	11.4 gpm
No. of Optional Remote Valves	2 (optional; ISO 7241-1 series A or B)	Single or dual
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	STD (540 rpm)	540 rpm @ 2837 rpm
PTO Type	Live independent PTO (with hydraulic clutch)	Independent Wet Clutch
Lift Control Type	Not Published	Position Control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	STD (2500 rpm)	Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch	SAE Category I Optional	CAT I with check chains
Hitch Lift Capacity (at 24”)	680 lb	771 lb
▶Tire Options
R3 Turf - Rear	24X12-12	26X12-12
R3 Turf - Front	16X7.5-8	18X8.5-10
Tire Size & Options	R1 Agricultural, R3 Turf	R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Applicable	26X12-12
R4 Industrial - Front	Not Applicable	18X8.5-10
R1 Agricultural - Rear	24X12-12	Not Published
R1 Agricultural - Front	16X7.5-8	Not Published
▶Fluid Capacity
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
▶Loader & Attachments
Loader Lift Height	70.7 in	68 in
Loader Breakout Force	1,286 lbf (bucket pivot pin)	1433 lb
Quick Attach Loader System	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)	613 lb	794 lb
▶Transmission & Drivetrain
Clutch	Dry type single plate - Main clutch 9.45 in.	Not Applicable
No. of Speeds	2 Range (Low-High)	Infinite / 2 ranges
Transmission Type	Hydrostatic transmission	HST
Max Travel Speed (Forward)	7.5 mph	7.3 mph
Max Travel Speed (Reverse)	5.6 mph	Not Published
Differential Lock & Limited Slip Options	Rear differential lock standard	Not Published
▶Chassis, Steering & Controls
Brakes	Mechanical, wet disc type	Single Pedal
Steering	Integral power steering	Hydrostatic Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Not Published
Drawbar Capacity	Max. drawbar load @ hitch: 550 lb.	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	55.1 in	55.1 in
Overall Width	44.1 in	46.3 in
Ground Clearance	5.8 in	6.7 in
Height to Top of ROPS	81.9 in	Not Applicable
Height to Top of Cab Model	Not Applicable	80.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	7.5 ft (2.3 m)	Not Published
Overall Length with 3-Point Hitch	95.5 in	100.4 in
▶ITC Company Accessories
Accessories that fit	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630	None tagged yet

Kubota BX1880 vs Mahindra 1120 HST Cab: Quick Answers

Which has more horsepower, the Kubota BX1880 or the Mahindra 1120 HST Cab?

The Mahindra 1120 HST Cab leads on engine hp at 20.1 hp hp, compared to 16.6 hp hp for the Kubota BX1880.

Which has more PTO horsepower, the Kubota BX1880 or the Mahindra 1120 HST Cab?

The Mahindra 1120 HST Cab leads on pto hp at 13.9 hp hp, compared to 13.7 hp hp for the Kubota BX1880.

Which has more loader lift capacity, the Kubota BX1880 or the Mahindra 1120 HST Cab?

The Mahindra 1120 HST Cab leads on loader lift at 794 lb lb, compared to 613 lb lb for the Kubota BX1880.

Which has more three-point hitch lift capacity, the Kubota BX1880 or the Mahindra 1120 HST Cab?

The Mahindra 1120 HST Cab leads on 3-pt lift (24 in) at 771 lb lb, compared to 680 lb lb for the Kubota BX1880.
