Kubota BX2360 vs Kubota BX2380

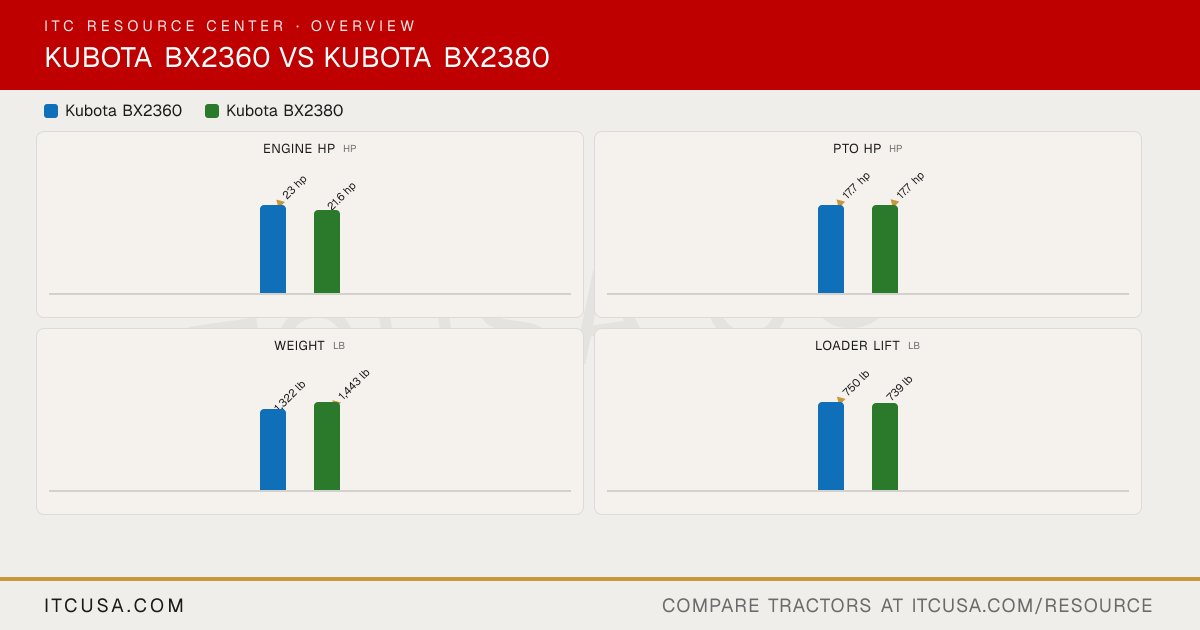

Across 9 measurable specs, the Kubota BX2360 leads 5 categories to 2 (2 tied). Machine pages: Kubota BX2360 and Kubota BX2380.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX2360	KubotaBX2380

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D902	D902
Engine Type	Liquid-cooled, 3-cylinder diesel	Liquid cooled, 4-cycle, diesel
No. of Cylinders	3	3
Displacement	54.8 in³	54.8 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	23 hp	21.6 hp
PTO Power	17.7 hp	17.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Water with pressurized radiator, reverse air-flow design
Air Cleaner	Not Published	Dry element
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Open center tandem pump gear type
Implement Flow	Not Published	5.2 gpm
Steering Flow	Not Published	1.0 gpm
Total Hydraulic Flow	6.3 gpm	6.2 gpm
Overall Hydraulic Pump Flow	6.3 gpm	6.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0 standard (2-valve rear remote coupler optional)
No. of Optional Remote Valves	Not Published	2 (optional; ISO 7241-1 series A or B)
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	2.8 qt	3.3 qt
Crankcase Capacity	3.3 qt	3.5 qt
Transmission / Hydraulic System Capacity	3.06 gal	3.0 gal
Front Axle Fluid Capacity	Not Published	3.8 qt
▶PTO & Hitch
PTO Type	Live independent, wet hydraulic clutch	Live independent PTO (with hydraulic clutch)
PTO Rear	540 rpm	STD (540 rpm)
Mid-PTO Availability	Standard mid-PTO, 2500 rpm	STD (2500 rpm)
Category, 3-Point Hitch	Category I	SAE Category I Optional
Hitch Lift Capacity	1210 lb	1,213 lb
Hitch Lift Capacity (at 24”)	670 lb	680 lb
Lift Control Type	Directional control with auto-return lever	Quarter-inching valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission with High-Low gear shift, 2-range	Hydrostatic transmission
No. of Speeds	2-range	2 Range (Low-High)
Max Travel Speed (Forward)	8.4 mph	8.4 mph
Max Travel Speed (Reverse)	6.2 mph	6.5 mph
Clutch	Not Published	Dry type single plate - Main clutch 9.45 in.
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Two-post ROPS (foldable ROPS on BX25 only)	Two-post foldable ROPS
Steering	Hydrostatic power steering	Integral power steering
Brakes	Wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	High-back deluxe seat with armrests; fore/aft slide and backrest tilt adjustment
Front Axle Type	Selectable 2WD and 4WD	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Max. drawbar load @ hitch: 550 lb.
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	95.5 in	95.5 in
Overall Width	44.5 in	45.1 in
Wheelbase	55.1 in	55.1 in
Ground Clearance	8.7 in	6.5 in (minimum; 8.4 in at front axle)
Min. Turn Radius without Brakes	7.5 ft	7.5 ft
Height to Top of ROPS	70.4 in	83.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1322 lb	1443 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	18x8.5-10	18X8.5-10
R1 Agricultural - Rear	26x12-12	26X12-12
R3 Turf - Front	18x8.5-10	18X8.5-10
R3 Turf - Rear	26x12-12	26X12-12
R4 Industrial - Front	18x8.5-10	18X8.5-10
R4 Industrial - Rear	26x12-12	26X12-12
▶Loader & Attachments
Quick Attach Loader System	Not Published	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Model	LA243	LA344S (standard, quick attach); LA344 (pin-on option)
Loader Lift Height	LA243: 71.3 in	71.0 in
Loader Lift Capacity (Full Height)	LA243: 750 lb	739 lb (LA344 pin-on); 613 lb (LA344S quick attach)
Loader Breakout Force	LA243: 1415 lbf	1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach)
▶Warranty
Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630

Find a Kubota dealer near you→

Kubota BX2360 vs Kubota BX2380: Quick Answers

Which has more horsepower, the Kubota BX2360 or the Kubota BX2380?

The Kubota BX2360 leads on engine hp at 23 hp hp, compared to 21.6 hp hp for the Kubota BX2380.

Which has more PTO horsepower, the Kubota BX2360 or the Kubota BX2380?

They are effectively tied: both machines are rated at 17.7 hp hp for pto hp.

Which is heavier, the Kubota BX2360 or the Kubota BX2380?

The Kubota BX2380 leads on weight at 1,443 lb lb, compared to 1,322 lb lb for the Kubota BX2360.

Which has more loader lift capacity, the Kubota BX2360 or the Kubota BX2380?

The Kubota BX2360 leads on loader lift at 750 lb lb, compared to 739 lb lb for the Kubota BX2380.

Which has more three-point hitch lift capacity, the Kubota BX2360 or the Kubota BX2380?

The Kubota BX2380 leads on 3-pt lift (24 in) at 680 lb lb, compared to 670 lb lb for the Kubota BX2360.
