Kubota BX2360 vs Kubota L2502

Across 8 measurable specs, the Kubota L2502 leads 8 categories to 0. Machine pages: Kubota BX2360 and Kubota L2502.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX2360	KubotaL2502

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D902	D1703-M-DI-E4 / D1703-M-DI-E4K
Engine Type	Liquid-cooled, 3-cylinder diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	54.8 in³	100.5 in³
Rated Engine Speed	3200 rpm	2200 rpm
Engine Power (Gross)	23 hp	23.3 hp
PTO Power	17.7 hp	18.4 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Dry type, single element
Fuel System	Indirect injection	Direct injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	Not Published	5.2 gpm
Steering Flow	Not Published	3.1 gpm
Total Hydraulic Flow	6.3 gpm	8.28 gpm (5.15 + 3.13, computed)
Overall Hydraulic Pump Flow	6.3 gpm	8.28 gpm (5.15 + 3.13, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	11.1 gal
Coolant Capacity	2.8 qt	6.3 qt
Crankcase Capacity	3.3 qt	6.0 qt
Transmission / Hydraulic System Capacity	3.06 gal	HST (4WD): 6.9 gal; DT (2WD): 7.4 gal; DT (4WD): 7.5 gal
Front Axle Fluid Capacity	Not Published	4.8 qt
▶PTO & Hitch
PTO Type	Live independent, wet hydraulic clutch	DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-independent hydraulic PTO with PTO brake, wet
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard mid-PTO, 2500 rpm	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	1210 lb	1874 lb
Hitch Lift Capacity (at 24”)	670 lb	1389 lb
Lift Control Type	Directional control with auto-return lever	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission with High-Low gear shift, 2-range	DT (2WD), DT (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
No. of Speeds	2-range	DT (2WD), DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Max Travel Speed (Forward)	8.4 mph	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph
Max Travel Speed (Reverse)	6.2 mph	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 10.3 mph
Clutch	Not Published	DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Two-post ROPS (foldable ROPS on BX25 only)	Not Published
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Selectable 2WD and 4WD	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	95.5 in	DT (2WD): 110.6 in; DT (4WD), HST (4WD): 108.5 in (without 3-point hitch)
Overall Width	44.5 in	55.1 in
Wheelbase	55.1 in	DT (2WD): 63.8 in; DT (4WD), HST (4WD): 63.4 in
Ground Clearance	8.7 in	DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in
Min. Turn Radius without Brakes	7.5 ft	DT (2WD): 7.9 ft; DT (4WD), HST (4WD): 8.2 ft (with brake applied)
Height to Top of ROPS	70.4 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1322 lb	DT (2WD): 2601 lb; DT (4WD): 2811 lb; HST (4WD): 2833 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	18x8.5-10	DT (2WD): 5.0-15; DT (4WD), HST (4WD): 7.2-16
R1 Agricultural - Rear	26x12-12	11.2-24
R3 Turf - Front	18x8.5-10	DT (2WD): 23X8.50-12; DT (4WD), HST (4WD): 25X8.50-14
R3 Turf - Rear	26x12-12	13.6-16
R4 Industrial - Front	18x8.5-10	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15
R4 Industrial - Rear	26x12-12	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Not Published	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA243	LA526
Loader Lift Height	LA243: 71.3 in	LA526: 94.8 in
Loader Lift Capacity (Full Height)	LA243: 750 lb	LA526: 1,096 lb
Loader Breakout Force	LA243: 1415 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Not Published	Not Published
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

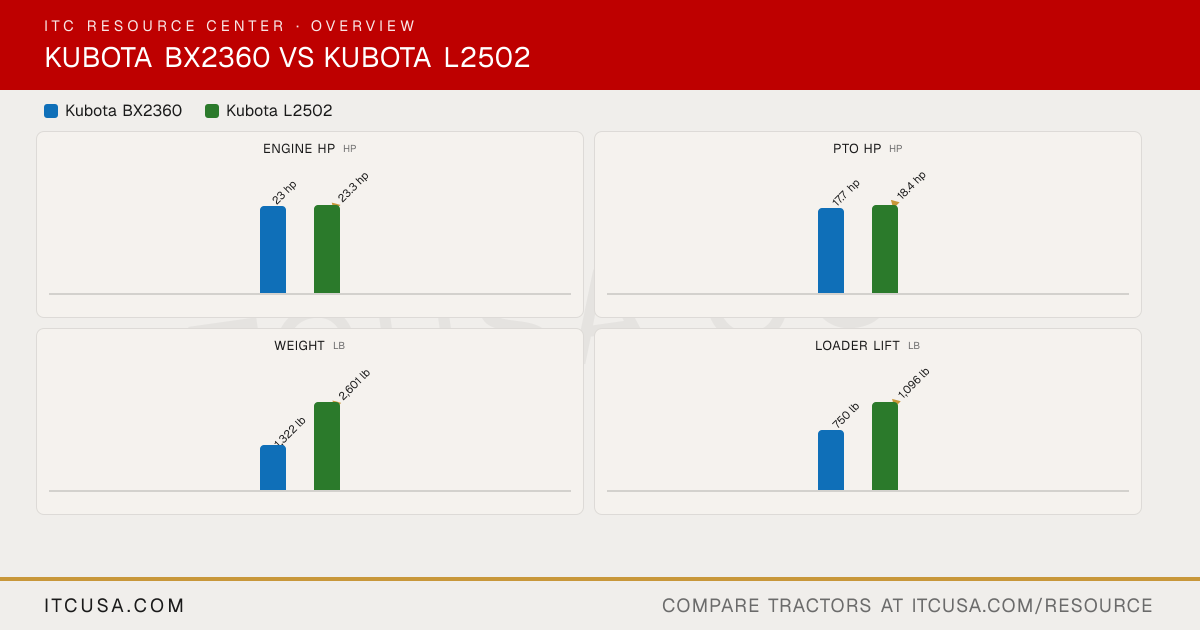

Kubota BX2360 vs Kubota L2502: Quick Answers

Which has more horsepower, the Kubota BX2360 or the Kubota L2502?

The Kubota L2502 leads on engine hp at 23.3 hp hp, compared to 23 hp hp for the Kubota BX2360.

Which has more PTO horsepower, the Kubota BX2360 or the Kubota L2502?

The Kubota L2502 leads on pto hp at 18.4 hp hp, compared to 17.7 hp hp for the Kubota BX2360.

Which is heavier, the Kubota BX2360 or the Kubota L2502?

The Kubota L2502 leads on weight at 2,601 lb lb, compared to 1,322 lb lb for the Kubota BX2360.

Which has more loader lift capacity, the Kubota BX2360 or the Kubota L2502?

The Kubota L2502 leads on loader lift at 1,096 lb lb, compared to 750 lb lb for the Kubota BX2360.

Which has more three-point hitch lift capacity, the Kubota BX2360 or the Kubota L2502?

The Kubota L2502 leads on 3-pt lift (24 in) at 1,389 lb lb, compared to 670 lb lb for the Kubota BX2360.
