Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 0 measurable specs, this matchup is a dead heat: 0 categories to the Kubota BX2380, 0 to the Kubota L2502. Machine pages: Kubota BX2380 and Kubota L2502.

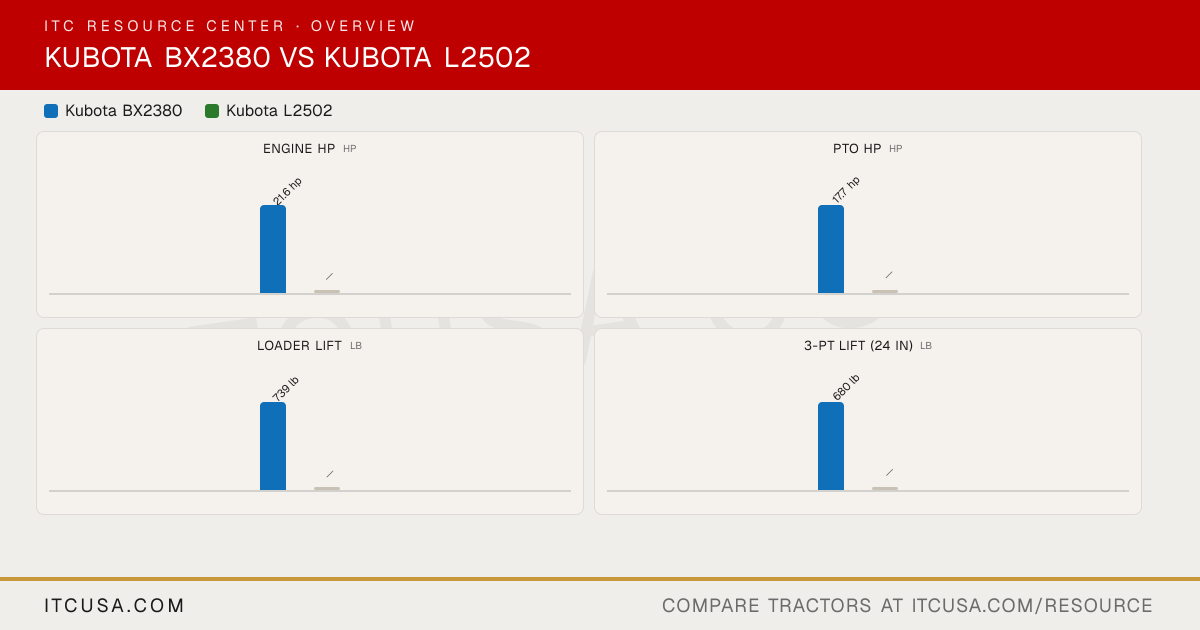

Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaBX2380
KubotaL2502
PTO Power
17.7 hp
—
Alternator
40 A, 12 V
—
Air Cleaner
Sheet net and replaceable treated paper element, spin on oil filter
—
Engine Type
Liquid cooled, 4-cycle, diesel
—
Fuel System
Direct injection
—
Displacement
54.8 in³
—
No. of Cylinders
3
—
Rated Engine Speed
3200 rpm
—
Cooling System Type
Water with pressurized radiator, reverse air-flow design
—
Engine Manufacturer
Kubota
—
Engine Power (Gross)
21.6 hp
—
Engine Emissions Constraints
Not Published
—
Weight with ROPS and Loader
Not Published
—
Weight with Cab and Loader
Not Applicable
—
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
—
Pump Type
Open center tandem pump gear type
—
Steering Flow
1.0 gpm
—
Implement Flow
5.2 gpm
—
Total Hydraulic Flow
6.2 gpm
—
Hydraulic System Type
Open center
—
Rear Remote Hydraulic Flow
Not Published
—
Overall Hydraulic Pump Flow
6.2 gpm
—
No. of Optional Remote Valves
2 (optional; ISO 7241-1 series A or B)
—
No. of Standard Remote Valves
Not Published
—
PTO Rear
STD (540 rpm)
—
PTO Type
Live independent PTO (with hydraulic clutch)
—
Lift Control Type
Not Published
—
Hitch Lift Capacity
Not Published
—
Mid-PTO Availability
STD (2500 rpm)
—
Category, 3-Point Hitch
SAE Category I Optional
—
Hitch Lift Capacity (at 24”)
680 lb
—
R3 Turf - Rear
26X12-12
—
R3 Turf - Front
18X8.5-10
—
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
—
R4 Industrial - Rear
26X12-12
—
R4 Industrial - Front
18X8.5-10
—
R1 Agricultural - Rear
26X12-12
—
R1 Agricultural - Front
18X8.5-10
—
Coolant Capacity
Not Published
—
Crankcase Capacity
Not Published
—
Fuel Tank Capacity
6.6 gal
—
Front Axle Fluid Capacity
Not Published
—
Transmission / Hydraulic System Capacity
Not Published
—
Loader Lift Height
71.0 in
—
Loader Breakout Force
1,286 lbf (bucket pivot pin)
—
Quick Attach Loader System
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
—
Loader Lift Capacity (Full Height)
739 lb
—
Clutch
Dry type single plate - Main clutch 9.45 in.
—
No. of Speeds
2 Range (Low-High)
—
Transmission Type
Hydrostatic transmission
—
Max Travel Speed (Forward)
8.1 mph
—
Max Travel Speed (Reverse)
6.2 mph
—
Differential Lock & Limited Slip Options
Rear differential lock standard
—
Brakes
Mechanical, wet disc type
—
Steering
Integral power steering
—
Frame Type
Not Published
—
Front Axle Type
4WD: Bevel gear front axle, non-adjustable tread spacing
