Kubota L2501 vs Kubota L2502DT

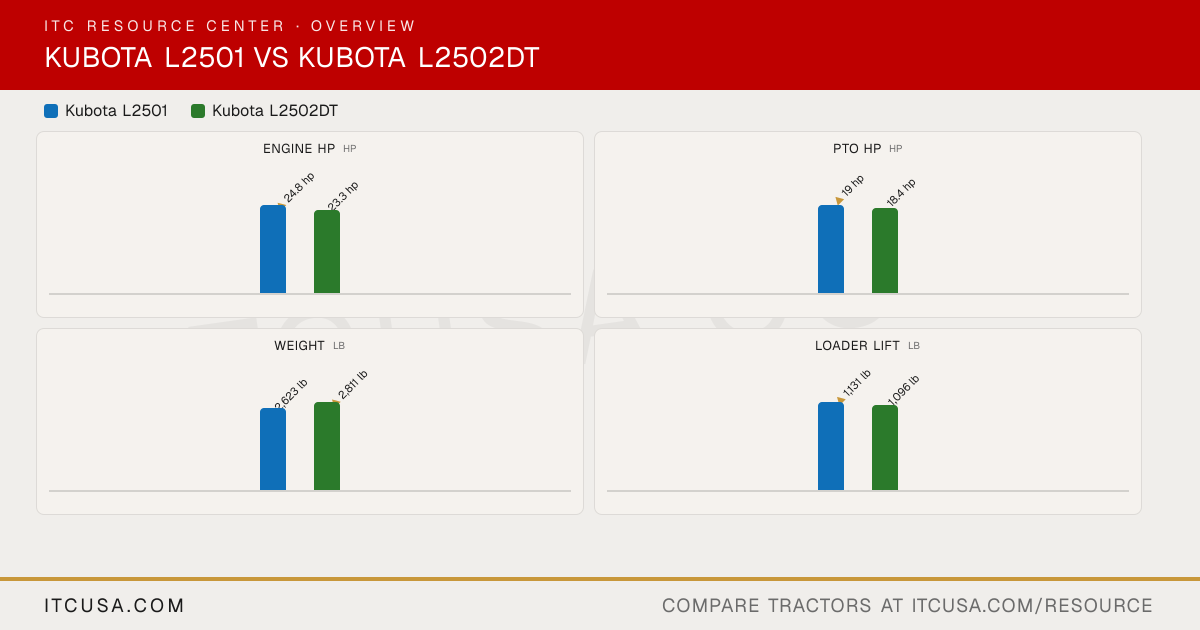

Across 8 measurable specs, the Kubota L2501 leads 4 categories to 3 (1 tied). Machine pages: Kubota L2501 and Kubota L2502DT.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2501	KubotaL2502DT

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1703-M-DI-E4	D1703-M-DI-E4 / D1703-M-DI-E4K
Engine Type	Direct injection, vertical, water-cooled, 4-cycle diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	100.47 in³	100.5 in³
Rated Engine Speed	2200 rpm	2200 rpm
Engine Power (Gross)	24.8 hp	23.3 hp
PTO Power	19 hp	18.4 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry paper single element (dual optional)	Dry type, single element
Fuel System	Direct injection	Direct injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Open center tandem pump, gear type	Not Published
Implement Flow	5.15 gpm	5.2 gpm
Steering Flow	3.13 gpm	3.1 gpm
Total Hydraulic Flow	8.26 gpm	8.28 gpm (5.15 + 3.13, computed)
Overall Hydraulic Pump Flow	8.26 gpm	8.28 gpm (5.15 + 3.13, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3 (self canceling detent valve or float detent valve options)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	10.0 gal	11.1 gal
Coolant Capacity	6.3 qt	6.3 qt
Crankcase Capacity	6.0 qt	6.0 qt
Transmission / Hydraulic System Capacity	6.2 gal	7.5 gal
Front Axle Fluid Capacity	4.8 qt	4.8 qt
▶PTO & Hitch
PTO Type	Live-continuous running	Transmission driven with overrunning clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	1918 lb	1874 lb
Hitch Lift Capacity (at 24”)	1389 lb	1389 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission (3-range)	Constant mesh with synchronized shuttle
No. of Speeds	3-range	8 forward, 8 reverse
Max Travel Speed (Forward)	11.5 mph	10.7 mph
Max Travel Speed (Reverse)	10.3 mph	10.7 mph
Clutch	Not Applicable	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Integral type power steering
Brakes	Wet disc type	Mechanical, wet disc type
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Bevel gear front axle, non-adjustable tread spacing	Cast-iron front axle
Front Axle Rating	2865 lb (at 43.1 in tread)	Not Published
Drawbar Capacity	730 lb	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	106.3 in (without 3-point hitch)	108.5 in (without 3-point hitch)
Overall Width	55.1 in	55.1 in
Wheelbase	63.3 in	63.4 in
Ground Clearance	13.4 in	13.4 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	91.7 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2623 lb	2811 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7.2-16	7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	Not Published	25X8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	27X8.50-15	27X8.50-15
R4 Industrial - Rear	15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA525 - 2 Lever Quick Coupler)	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA525	LA526
Loader Lift Height	94.3 in	94.8 in
Loader Lift Capacity (Full Height)	1131 lb	1096 lb
Loader Breakout Force	2373 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota Standard L & MX Series Brush Guard Insert Kit $269.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota L2501 vs Kubota L2502DT: Quick Answers

Which has more horsepower, the Kubota L2501 or the Kubota L2502DT?

The Kubota L2501 leads on engine hp at 24.8 hp hp, compared to 23.3 hp hp for the Kubota L2502DT.

Which has more PTO horsepower, the Kubota L2501 or the Kubota L2502DT?

The Kubota L2501 leads on pto hp at 19 hp hp, compared to 18.4 hp hp for the Kubota L2502DT.

Which is heavier, the Kubota L2501 or the Kubota L2502DT?

The Kubota L2502DT leads on weight at 2,811 lb lb, compared to 2,623 lb lb for the Kubota L2501.

Which has more loader lift capacity, the Kubota L2501 or the Kubota L2502DT?

The Kubota L2501 leads on loader lift at 1,131 lb lb, compared to 1,096 lb lb for the Kubota L2502DT.

Which has more three-point hitch lift capacity, the Kubota L2501 or the Kubota L2502DT?

They are effectively tied: both machines are rated at 1,389 lb lb for 3-pt lift (24 in).
