Kubota L3130 vs Kubota L3301

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota L3130 leads 6 categories to 2. Machine pages: Kubota L3130 and Kubota L3301.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L3130	Kubota L3301
Engine HP (hp)	32.1 hp	▲ 33 hp
PTO HP (hp)	25.8 hp	▲ 27.7 hp
Weight (lb)	▲ 3,265 lb	2,778 lb
Loader Lift (lb)	▲ 1,870 lb	1,131 lb
3-Pt Lift (24 in) (lb)	▲ 2,650 lb	1,433 lb
Lift Height (in)	▲ 102.4 in	94.3 in
Breakout Force (lbf)	▲ 2,605 lbf	2,462 lbf
Hydraulic Flow (gpm)	▲ 13.2 gpm	10.1 gpm
Travel Speed (mph)	n/a	13.2 mph

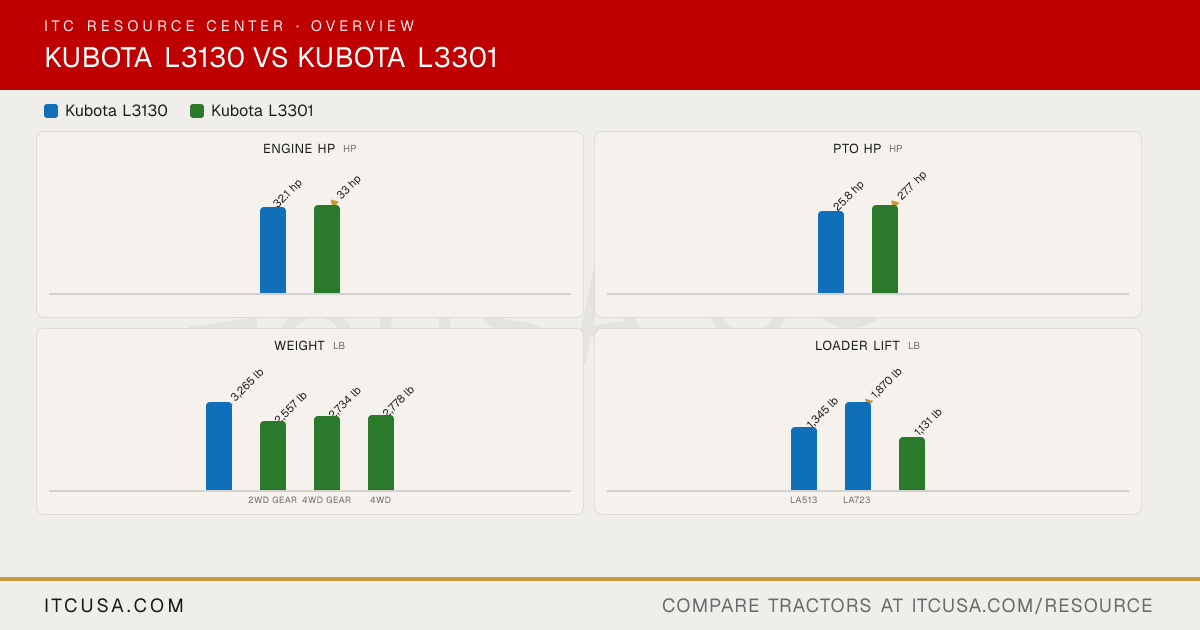

The headline numbers at a glance.

Kubota L3130Kubota L3301

Engine HPhp

32.1 hp

▲33 hp

PTO HPhp

25.8 hp

▲27.7 hp

Weightlb

▲3,265 lb

2,557 lb

2,734 lb

2,778 lb

2WD gear4WD gear4WD

Loader Liftlb

1,345 lb

▲1,870 lb

1,131 lb

LA513LA723

3-Pt Lift (24 in)lb

▲2,650 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3130	KubotaL3301


Engine Manufacturer	Kubota	Kubota
Engine Model	Not Published	F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2
Engine Type	Not Published	3-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	Not Published	2700 rpm
Engine Power (Gross)	32.1 hp	33 hp
PTO Power	25.8 hp	F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Not Published	Liquid-cooled, water with pressurized radiator
Air Cleaner	Not Published	Dry paper single element
Fuel System	Indirect injection	Common-rail, direct injection, electronic control
Alternator	Not Published	40 A, 12 V

Pump Type	Single pump (position-control)	Open center tandem pump, gear type
Implement Flow	8.3 gpm	6.3 gpm
Steering Flow	4.9 gpm	3.8 gpm
Total Hydraulic Flow	13.2 gpm	10.1 gpm
Overall Hydraulic Pump Flow	13.2 gpm	10.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	3	Up to 3: self-canceling detent valve or float detent valve

Fuel Tank Capacity	10.6 gal	11.1 gal
Coolant Capacity	6.3 qt	6.3 qt
Crankcase Capacity	6.0 qt	7.1 qt
Transmission / Hydraulic System Capacity	11.1 gal	F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal
Front Axle Fluid Capacity	Not Published	4.8 qt

PTO Type	Independent, hydraulic clutch	F (2WD gear), DT (4WD gear): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional mid-PTO, independent, 2000 rpm	No mid-PTO offered
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,750 lb (at lift points)	1,874 lb (at lift points)
Hitch Lift Capacity (at 24”)	2,650 lb	1,433 lb
Lift Control Type	Position control (with optional draft control)	Position control

Transmission Type	F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option)	F (2WD gear), DT (4WD gear): manual transmission with synchronized shuttle; HST (4WD): hydrostatic transmission
No. of Speeds	8F/8R (16F/16R with creep option)	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range
Max Travel Speed (Forward)	Not Published	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	Not Published	F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph
Clutch	Dry type single stage	Dry type single stage
Differential Lock & Limited Slip Options	Not Published	Rear differential lock standard

Frame Type	Not Published	Two-post foldable ROPS (factory certified) with retractable seat belt
Steering	Hydrostatic power steering	Integral power steering
Brakes	Wet disk type	Mechanical wet disc type, pedals can be locked together
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	2,865 lb (at 41.3 in tread, 2WD and 4WD models)
Drawbar Capacity	Not Published	730 lb

Overall Width	56.3 in (minimum tread)	55.1 in
Wheelbase	71.1 in	63.3 in
Ground Clearance	14.6 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft
Height to Top of ROPS	88.8 in (with ROPS)	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	119.1 in (without 3-point hitch)	F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in (with 3-point hitch)

Tractor Weight (Base)	3,265 lb (with ROPS)	F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard Front: 7-16; Rear: 12.4-24	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)
R1 Agricultural - Front	7-16	F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	Not Published	27x8.5-15 (4WD)
R4 Industrial - Rear	Not Published	15-19.5 (4WD)

Quick Attach Loader System	LA513 and LA723 loaders offered	LA525: 2-lever quick coupler, tool-free attach and detach
Loader Model	LA513; LA723	LA525
Loader Lift Height	LA513: 96.5 in; LA723: 102.4 in	LA525: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	LA513: 1,345 lb; LA723: 1,870 lb	LA525: 1,131 lb (at pivot pin, maximum height)
Loader Breakout Force	LA513: 2,160 lbf (at 19.7 in); LA723: 2,605 lbf (at 19.7 in) (19.7 in forward of pivot pin)	LA525: 2,462 lbf (at bucket pivot pin)

Warranty Length & Coverage	Not Published	24 months or 1500 hours (general)

Find a Kubota dealer near you

Kubota L3130 vs Kubota L3301: Quick Answers

Which has more horsepower, the Kubota L3130 or the Kubota L3301?: The Kubota L3301 leads on engine hp at 33 hp hp, compared to 32.1 hp hp for the Kubota L3130.
Which has more PTO horsepower, the Kubota L3130 or the Kubota L3301?: The Kubota L3301 leads on pto hp at 27.7 hp hp, compared to 25.8 hp hp for the Kubota L3130.
Which is heavier, the Kubota L3130 or the Kubota L3301?: The Kubota L3130 leads on weight at 3,265 lb lb, compared to 2,778 lb lb for the Kubota L3301.
Which has more loader lift capacity, the Kubota L3130 or the Kubota L3301?: The Kubota L3130 leads on loader lift at 1,870 lb lb, compared to 1,131 lb lb for the Kubota L3301.
Which has more three-point hitch lift capacity, the Kubota L3130 or the Kubota L3301?: The Kubota L3130 leads on 3-pt lift (24 in) at 2,650 lb lb, compared to 1,433 lb lb for the Kubota L3301.
