Kubota L3400 vs Kubota L3560LE
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota L3560LE leads 7 categories to 1. Machine pages: Kubota L3400 and Kubota L3560LE.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Kubota L3400 | Kubota L3560LE |
|---|---|---|
| Engine HP (hp) | 35.7 hp | ▲ 37 hp |
| PTO HP (hp) | ▲ 30 hp | 28 hp |
| Weight (lb) | 2,600 lb | ▲ 3,649 lb |
| Loader Lift (lb) | 1,142 lb | ▲ 1,715 lb |
| 3-Pt Lift (24 in) (lb) | 1,435 lb | ▲ 2,646 lb |
| Lift Height (in) | 95.3 in | ▲ 104.7 in |
| Breakout Force (lbf) | n/a | 2,549 lbf |
| Hydraulic Flow (gpm) | 10.1 gpm | ▲ 12.8 gpm |
| Travel Speed (mph) | 13.2 mph | ▲ 16.5 mph |

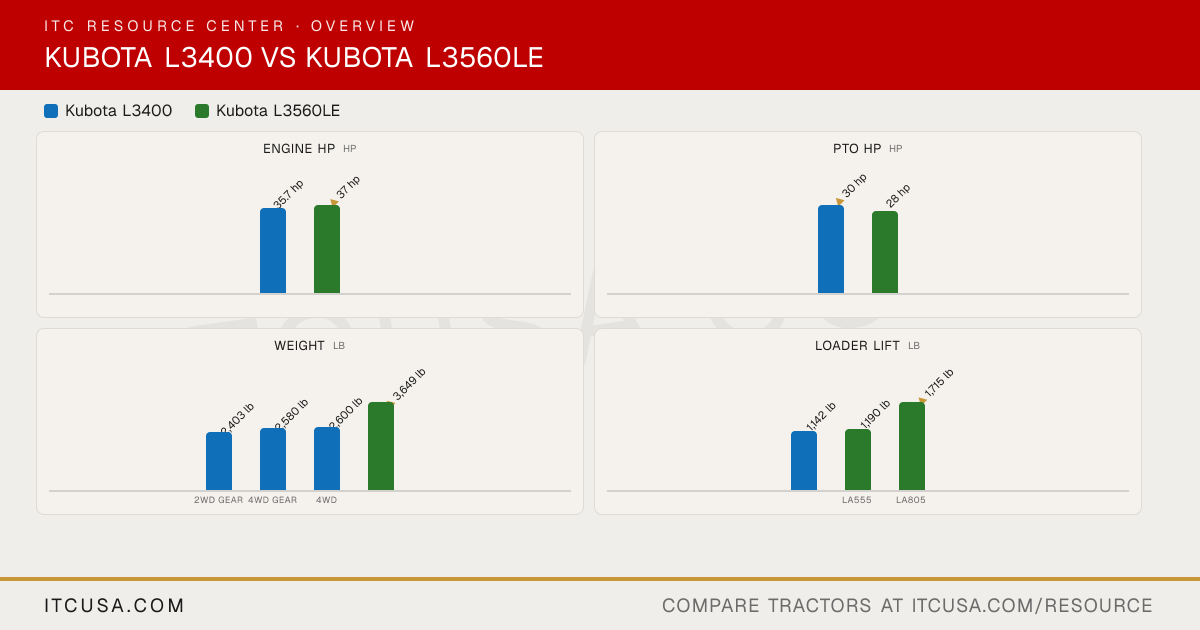

Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL3400 | KubotaL3560LE |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | Not Published | D1803-CR-E4-GL2 |
| Engine Type | Indirect injection, liquid-cooled diesel | Naturally aspirated, multi-valve, liquid-cooled diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 111.4 in³ | 111.4 in³ |
| Rated Engine Speed | 2700 rpm | 2600 rpm |
| Engine Power (Gross) | 35.7 hp | 37 hp |
| PTO Power | F (2WD gear), DT (4WD gear): 30 hp; HST (4WD): 28.5 hp | 28 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Not Published | Dry paper, dual element |
| Fuel System | Indirect injection | Electronic CRS (Common Rail System) |
| Alternator | 40 A, 12 V | ROPS: 40 A, 12 V; Cab: 60 A, 12 V |
Kubota L3400 vs Kubota L3560LE: Quick Answers
- Which has more horsepower, the Kubota L3400 or the Kubota L3560LE?
- The Kubota L3560LE leads on engine hp at 37 hp hp, compared to 35.7 hp hp for the Kubota L3400.
- Which has more PTO horsepower, the Kubota L3400 or the Kubota L3560LE?
- The Kubota L3400 leads on pto hp at 30 hp hp, compared to 28 hp hp for the Kubota L3560LE.
- Which is heavier, the Kubota L3400 or the Kubota L3560LE?
- The Kubota L3560LE leads on weight at 3,649 lb lb, compared to 2,600 lb lb for the Kubota L3400.
- Which has more loader lift capacity, the Kubota L3400 or the Kubota L3560LE?
- The Kubota L3560LE leads on loader lift at 1,715 lb lb, compared to 1,142 lb lb for the Kubota L3400.
- Which has more three-point hitch lift capacity, the Kubota L3400 or the Kubota L3560LE?
- The Kubota L3560LE leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,435 lb lb for the Kubota L3400.
