Kubota L3400 vs Kubota LX3520
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota L3400 leads 6 categories to 2. Machine pages: Kubota L3400 and Kubota LX3520.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

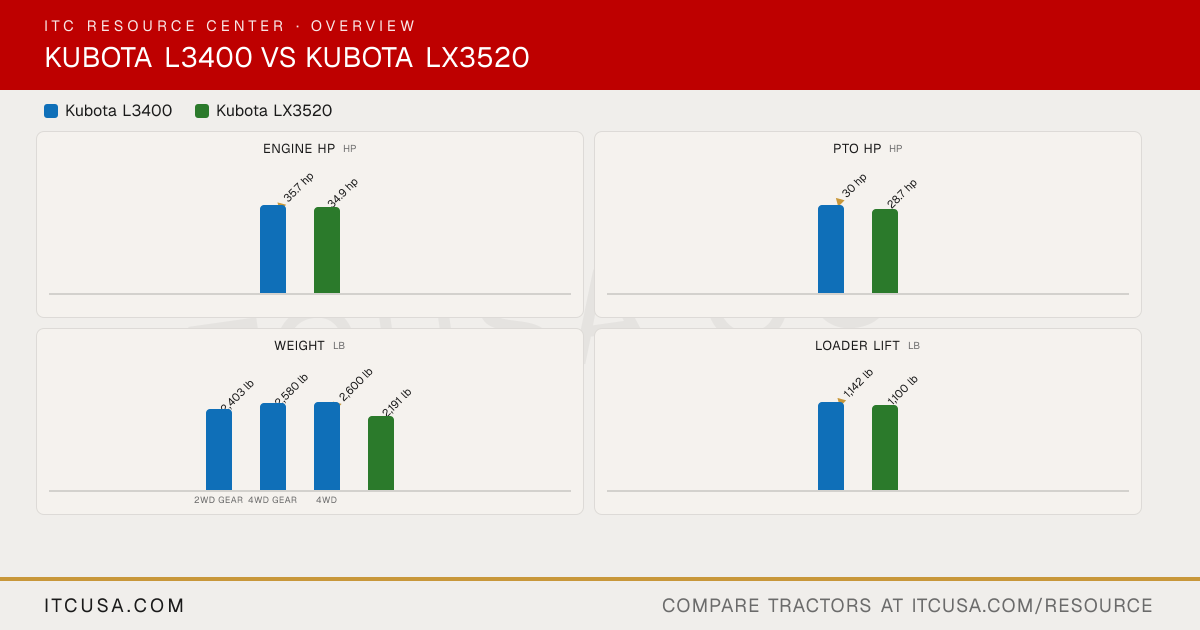

Category Verdict
| Spec | Kubota L3400 | Kubota LX3520 |
|---|---|---|
| Engine HP (hp) | ▲ 35.7 hp | 34.9 hp |
| PTO HP (hp) | ▲ 30 hp | 28.7 hp |
| Weight (lb) | ▲ 2,600 lb | 2,191 lb |
| Loader Lift (lb) | ▲ 1,142 lb | 1,100 lb |
| 3-Pt Lift (24 in) (lb) | 1,435 lb | ▲ 1,962 lb |
| Lift Height (in) | ▲ 95.3 in | 87.6 in |
| Hydraulic Flow (gpm) | ▲ 10.1 gpm | 9.5 gpm |
| Travel Speed (mph) | 13.2 mph | ▲ 17 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL3400 | KubotaLX3520 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | Not Published | V1505-CR-TE5-D40R5 |
| Engine Type | Vertical, liquid-cooled, 4-cycle diesel, indirect injection (E-TVCS) | Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 91.4 in³ |
| Rated Engine Speed | 2700 rpm | 2700 rpm |
| Engine Power (Gross) | 35.7 hp | 34.9 hp |
| PTO Power | F (2WD gear), DT (4WD gear): 30 hp; HST (4WD): 28.5 hp | 28.7 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid-cooled | Pressurized radiator |
| Air Cleaner | Not Published | 6 in paper filter (with dual element) |
| Fuel System | Indirect injection (E-TVCS) | Direct injection |
| Alternator | 40 A, 12 V | Not Published |
Kubota L3400 vs Kubota LX3520: Quick Answers
- Which has more horsepower, the Kubota L3400 or the Kubota LX3520?
- The Kubota L3400 leads on engine hp at 35.7 hp hp, compared to 34.9 hp hp for the Kubota LX3520.
- Which has more PTO horsepower, the Kubota L3400 or the Kubota LX3520?
- The Kubota L3400 leads on pto hp at 30 hp hp, compared to 28.7 hp hp for the Kubota LX3520.
- Which is heavier, the Kubota L3400 or the Kubota LX3520?
- The Kubota L3400 leads on weight at 2,600 lb lb, compared to 2,191 lb lb for the Kubota LX3520.
- Which has more loader lift capacity, the Kubota L3400 or the Kubota LX3520?
- The Kubota L3400 leads on loader lift at 1,142 lb lb, compared to 1,100 lb lb for the Kubota LX3520.
- Which has more three-point hitch lift capacity, the Kubota L3400 or the Kubota LX3520?
- The Kubota LX3520 leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,435 lb lb for the Kubota L3400.
