Kubota L3560LE vs TYM T394

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kubota L3560LE, 4 to the TYM T394. Machine pages: Kubota L3560LE and TYM T394.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

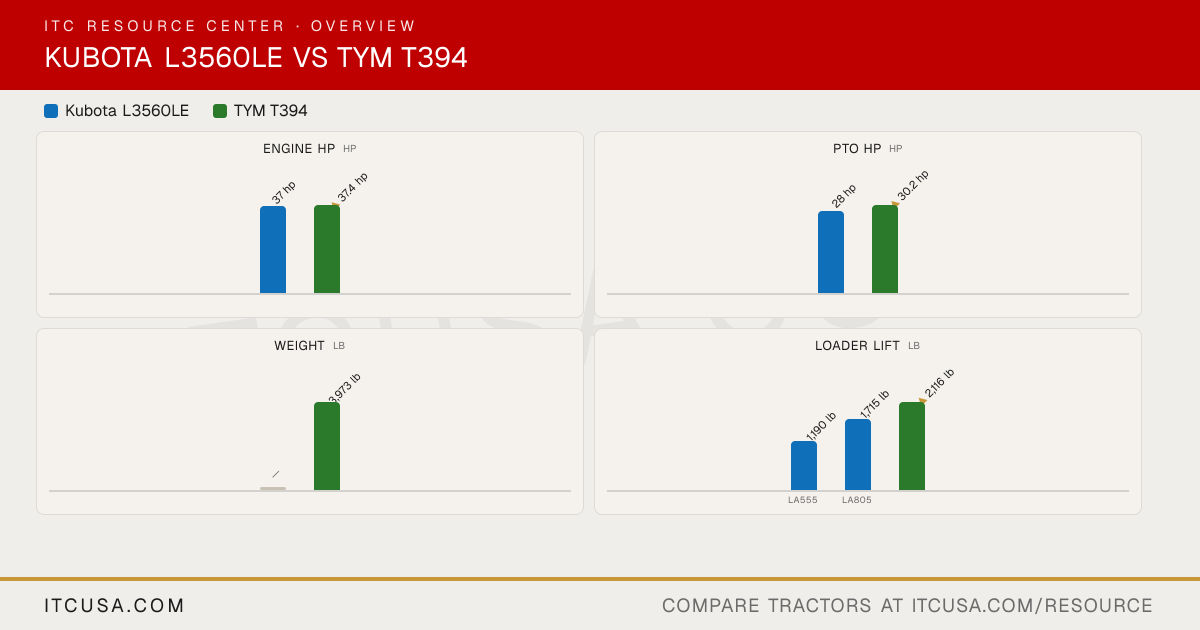

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3560LE	TYMT394

▶Engine
PTO Power	28 hp	30.2 hp
Alternator	40 A, 12 V	50 A, 12 V
Air Cleaner	Dry paper, dual element	Dual dry
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	3-cylinder, naturally aspirated diesel
Fuel System	Electronic CRS (Common Rail System)	CRDI
Displacement	111.4 in³	100.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	3000 rpm
Cooling System Type	Liquid-cooled	Water-cooled
Engine Manufacturer	Kubota	Yanmar 3TNV88-CR
Engine Power (Gross)	37 hp	37.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	3,973 lb
Weight with Cab and Loader	Not Published	Not Applicable
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Steering Flow	4.7 gpm	4.4 gpm
Implement Flow	8.1 gpm	6.1 gpm
Total Hydraulic Flow	12.8 gpm	10.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.8 gpm	10.5 gpm
No. of Optional Remote Valves	Optional, up to 3	1 or 2
No. of Standard Remote Valves	Not Published	0
▶PTO & Hitch
PTO Rear	1 speed: 540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	2,639 lb
Mid-PTO Availability	Optional	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,646 lb	1,558 lb
▶Tire Options
R3 Turf - Rear	Not Published	12.5-20; Multi-Trac CS 41x14.00-20 NHS TL 4PR
R3 Turf - Front	Not Published	27x10.5-15; Multi-Trac CS 27x8.50-15 NHS TL 4PR
Tire Size & Options	Agricultural, Turf or Industrial tires (options)	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	12.5x20; Xtra Grip 43x16.00-20 NHS TL 6PR
R4 Industrial - Front	Not Published	27x10.5-15; Trac Chief 10-16.50 NHS TL 6PR
R1 Agricultural - Rear	12.4-24	Farm Specialist 12.4-24 NHS TL 6PR; Farm Specialist 11.2-24 NHS TL 6PR
R1 Agricultural - Front	7.0-16	Farm Specialist 8.0-16 NHS TL 6PR; Farm Specialist 7-16 NHS TL 6PR
▶Fluid Capacity
Coolant Capacity	Not Published	7.4 qt
Crankcase Capacity	Not Published	6 qt
Fuel Tank Capacity	13.5 gal	9.0 gal
Front Axle Fluid Capacity	Not Published	8.7 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
▶Loader & Attachments
Loader Lift Height	LA555: 96.4 in; LA805: 104.7 in	101.5 in
Loader Breakout Force	LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)	3,435 lb
Quick Attach Loader System	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	TX39H: Quick attachment assembly
Loader Lift Capacity (Full Height)	LA555: 1190 lb; LA805: 1715 lb	2,116 lb
▶Transmission & Drivetrain
Clutch	N/A	Dry single plate
No. of Speeds	3 ranges	F12 x R12
Transmission Type	Hydrostatic (HST Plus)	Mechanical
Max Travel Speed (Forward)	16.5 mph	15.0 mph
Max Travel Speed (Reverse)	14.9 mph	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published
▶Chassis, Steering & Controls
Brakes	Wet disc type	Wet disc
Steering	Hydrostatic power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	71.1 in	64.5 in
Overall Width	59.8 in	53.5 in
Ground Clearance	13.5 in	12.8 in
Height to Top of ROPS	HST-LE (4WD, ROPS): 97.2 in; HSTC-LE (4WD, CAB): Not Applicable	94.5 in
Height to Top of Cab Model	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published	Not Applicable
Height to Top of ROPS (folded)	HST-LE (4WD, ROPS): 90.6 in; HSTC-LE (4WD, CAB): Not Applicable	Not Published
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	116 in
Overall Length with 3-Point Hitch	Not Published	126 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T394 Rural King RK37 Brush Screen Insert $249.99

Kubota L3560LE vs TYM T394: Quick Answers

Which has more horsepower, the Kubota L3560LE or the TYM T394?

The TYM T394 leads on engine hp at 37.4 hp hp, compared to 37 hp hp for the Kubota L3560LE.

Which has more PTO horsepower, the Kubota L3560LE or the TYM T394?

The TYM T394 leads on pto hp at 30.2 hp hp, compared to 28 hp hp for the Kubota L3560LE.

Which has more loader lift capacity, the Kubota L3560LE or the TYM T394?

The TYM T394 leads on loader lift at 2,116 lb lb, compared to 1,715 lb lb for the Kubota L3560LE.

Which has more three-point hitch lift capacity, the Kubota L3560LE or the TYM T394?

The Kubota L3560LE leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,558 lb lb for the TYM T394.
