Which has more horsepower, the Kubota L3902 or the TYM T394C?

The Kubota L3902 leads on engine hp at 37.5 hp hp, compared to 37.4 hp hp for the TYM T394C.

Which has more PTO horsepower, the Kubota L3902 or the TYM T394C?

The Kubota L3902 leads on pto hp at 32.1 hp hp, compared to 30 hp hp for the TYM T394C.

Which has more loader lift capacity, the Kubota L3902 or the TYM T394C?

The TYM T394C leads on loader lift at 2,116 lb lb, compared to 1,144.4 lb lb for the Kubota L3902.

Which has more three-point hitch lift capacity, the Kubota L3902 or the TYM T394C?

The TYM T394C leads on 3-pt lift (24 in) at 1,558 lb lb, compared to 1,435 lb lb for the Kubota L3902.

Kubota L3902 vs TYM T394C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the TYM T394C leads 5 categories to 2. Machine pages: Kubota L3902 and TYM T394C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L3902	TYM T394C
Engine HP (hp)	▲ 37.5 hp	37.4 hp
PTO HP (hp)	▲ 32.1 hp	30 hp
Weight (lb)	—	4,370 lb
Loader Lift (lb)	1,144.4 lb	▲ 2,116 lb
3-Pt Lift (24 in) (lb)	1,435 lb	▲ 1,558 lb
Lift Height (in)	94.3 in	▲ 101.5 in
Breakout Force (lbf)	—	3,435 lbf
Hydraulic Flow (gpm)	10.1 gpm	▲ 10.5 gpm
Travel Speed (mph)	13.2 mph	▲ 15 mph

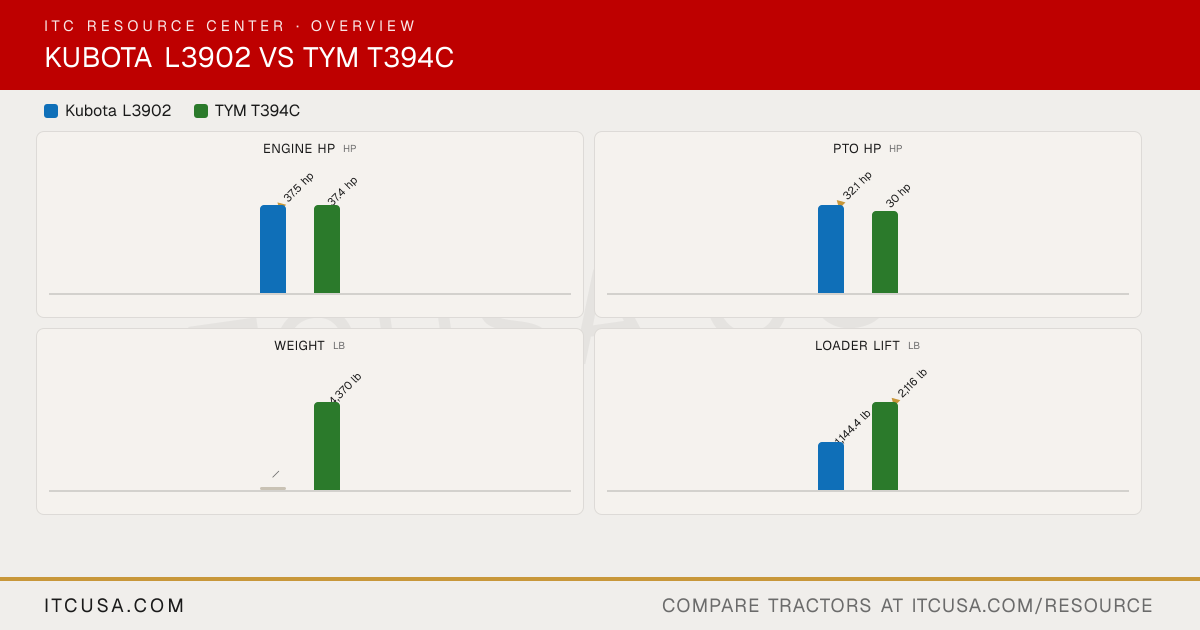

The headline numbers at a glance.

Kubota L3902TYM T394C

Engine HPhp

▲37.5 hp

37.4 hp

PTO HPhp

▲32.1 hp

30 hp

Weightlb

—

4,370 lb

Loader Liftlb

1,144.4 lb

▲2,116 lb

3-Pt Lift (24 in)lb

1,435 lb

▲1,558 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3902	TYMT394C


PTO Power	32.1 hp	30 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Dual dry
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	3-cylinder, naturally aspirated diesel
Fuel System	Direct injection	CRDI
Displacement	111.4 in³	100.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2700 rpm	3000 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Kubota	Yanmar 3TNV88-CR
Engine Power (Gross)	37.5 hp	37.4 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Applicable	4,370 lb

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	3.8 gpm	4.4 gpm
Implement Flow	6.3 gpm	6.1 gpm
Total Hydraulic Flow	10.1 gpm	10.5 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.1 gpm	10.5 gpm
No. of Optional Remote Valves	Not Published	1 or 2
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	DT (4WD): Live-continuous running; HST (4WD): Live independent PTO with hydraulic clutch	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1998 lb	2,639 lb
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity (at 24”)	1435 lb	1,558 lb

R3 Turf - Rear	13.6-16	Multi-Trac CS 41x14.00-20 NHS TL 4PR
R3 Turf - Front	25X8.50-14	Multi-Trac CS 27x8.50-15 NHS TL 4PR
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	Xtra Grip 43x16.00-20 NHS TL 6PR
R4 Industrial - Front	27X8.50-15	Trac Chief 10-16.50 NHS TL 6PR
R1 Agricultural - Rear	11.2-24	Farm Specialist 11.2-24 NHS TL 6PR
R1 Agricultural - Front	7.2-16	Farm Specialist 7-16 NHS TL 6PR

Coolant Capacity	Not Published	7.4 qt
Crankcase Capacity	Not Published	6 qt
Fuel Tank Capacity	13.5 gal	9.0 gal
Front Axle Fluid Capacity	Not Published	8.7 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal

Loader Lift Height	94.3 in	101.5 in
Loader Breakout Force	Not Published	3,435 lb
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	TX39H: Quick attachment assembly
Loader Lift Capacity (Full Height)	1144.4 lb	2,116 lb

Clutch	DT (4WD): Dry type dual stage; HST (4WD): Not Applicable	Dry single plate
No. of Speeds	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	F12 x R12
Transmission Type	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	Mechanical
Max Travel Speed (Forward)	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph	15.0 mph
Max Travel Speed (Reverse)	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Mechanical, wet disc type	Wet disc
Steering	Integral type power steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	63.4 in	66.9 in
Overall Width	55.1 in	53.5 in
Ground Clearance	13.4 in	12.8 in
Height to Top of ROPS	91.7 in	Not Applicable
Height to Top of Cab Model	Not Applicable	92.5 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	116 in
Overall Length with 3-Point Hitch	108.5 in	126 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T394 Rural King RK37 Brush Screen Insert $249.99
