Kubota L3902DT vs TYM T394C

Across 8 measurable specs, the TYM T394C leads 6 categories to 2. Machine pages: Kubota L3902DT and TYM T394C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

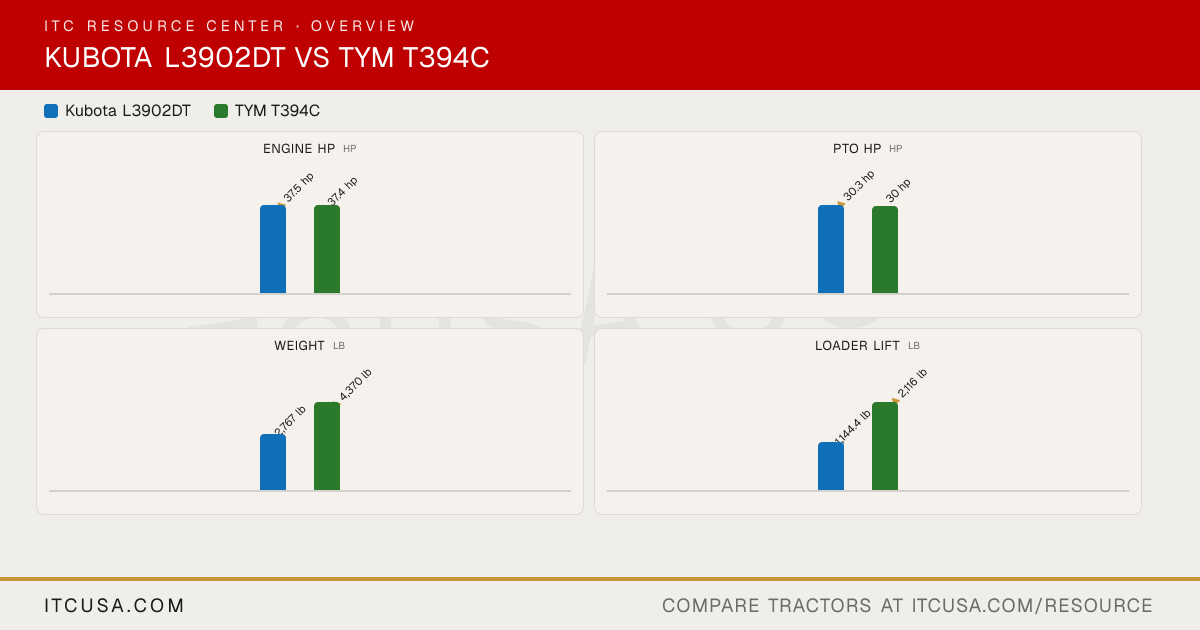

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3902DT	TYMT394C

▶Engine
Engine Manufacturer	Kubota	Yanmar 3TNV88-CR
Engine Model	D1803-CR-E5	n/a
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	111.4 in³	100.2 in³
Rated Engine Speed	2700 rpm	3000 rpm
Engine Power (Gross)	37.5 hp	37.4 hp
PTO Power	30.3 hp	30 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry type, single element	Dual dry
Fuel System	Direct injection	CRDI
Alternator	45 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	6.3 gpm	6.1 gpm
Steering Flow	3.8 gpm	4.4 gpm
Total Hydraulic Flow	10.1 gpm (6.3 + 3.8, computed)	10.5 gpm
Overall Hydraulic Pump Flow	10.1 gpm (6.3 + 3.8, computed)	10.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Not Published	1 or 2
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	9.0 gal
Coolant Capacity	6.3 qt	7.4 qt
Crankcase Capacity	7.1 qt	6 qt
Transmission / Hydraulic System Capacity	7.5 gal	8.5 gal
Front Axle Fluid Capacity	4.8 qt	8.7 qt
▶PTO & Hitch
PTO Type	Live-continuous running	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Available (Mid-PTO kit)
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity	1998 lb	2,639 lb
Hitch Lift Capacity (at 24”)	1435 lb	1,558 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Gear shift with synchronized shuttle	Mechanical
No. of Speeds	8 forward, 8 reverse	F12 x R12
Max Travel Speed (Forward)	13.2 mph	15.0 mph
Max Travel Speed (Reverse)	13.2 mph	Not Published
Clutch	Dry type dual stage	Dry single plate
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Hydrostatic
Brakes	Mechanical, wet disc type	Wet disc
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Not Published
Front Axle Type	Cast-iron front axle	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	730 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	108.5 in (without 3-point hitch)	126 in
Overall Width	55.1 in	53.5 in
Wheelbase	63.4 in	66.9 in
Ground Clearance	13.4 in	12.8 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	116 in
Height to Top of ROPS	91.7 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Applicable
Height to Top of Cab Model	Not Published	92.5 in
▶Weight
Tractor Weight (Base)	2767 lb	n/a
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	4,370 lb
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7.2-16	Farm Specialist 7-16 NHS TL 6PR
R1 Agricultural - Rear	11.2-24	Farm Specialist 11.2-24 NHS TL 6PR
R3 Turf - Front	25X8.50-14	Multi-Trac CS 27x8.50-15 NHS TL 4PR
R3 Turf - Rear	13.6-16	Multi-Trac CS 41x14.00-20 NHS TL 4PR
R4 Industrial - Front	27X8.50-15	Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear	15-19.5	Xtra Grip 43x16.00-20 NHS TL 6PR
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	TX39H: Quick attachment assembly
Loader Model	LA526	n/a
Loader Lift Height	94.8 in	101.5 in
Loader Lift Capacity (Full Height)	1144.4 lb	2,116 lb
Loader Breakout Force	Not Published	3,435 lb
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T394 Rural King RK37 Brush Screen Insert $249.99

Find a Kubota dealer near you→Find a TYM dealer near you→

Kubota L3902DT vs TYM T394C: Quick Answers

Which has more horsepower, the Kubota L3902DT or the TYM T394C?

The Kubota L3902DT leads on engine hp at 37.5 hp hp, compared to 37.4 hp hp for the TYM T394C.

Which has more PTO horsepower, the Kubota L3902DT or the TYM T394C?

The Kubota L3902DT leads on pto hp at 30.3 hp hp, compared to 30 hp hp for the TYM T394C.

Which is heavier, the Kubota L3902DT or the TYM T394C?

The TYM T394C leads on weight at 4,370 lb lb, compared to 2,767 lb lb for the Kubota L3902DT.

Which has more loader lift capacity, the Kubota L3902DT or the TYM T394C?

The TYM T394C leads on loader lift at 2,116 lb lb, compared to 1,144.4 lb lb for the Kubota L3902DT.

Which has more three-point hitch lift capacity, the Kubota L3902DT or the TYM T394C?

The TYM T394C leads on 3-pt lift (24 in) at 1,558 lb lb, compared to 1,435 lb lb for the Kubota L3902DT.
