Kubota L4060GST vs Kubota L4760

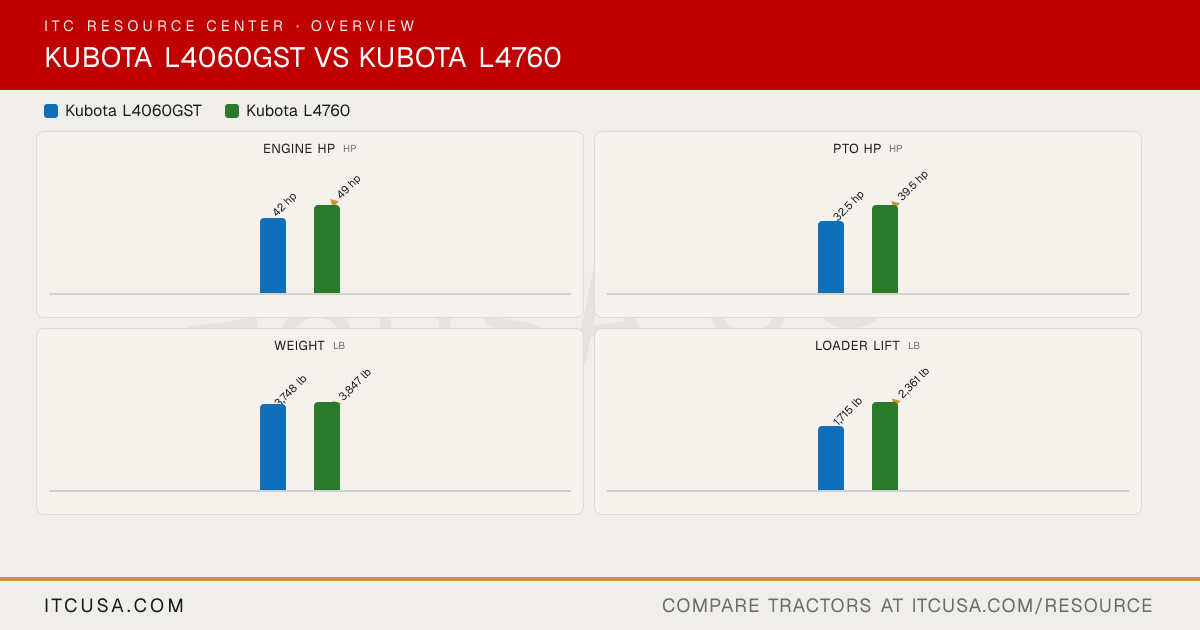

Across 9 measurable specs, the Kubota L4760 leads 6 categories to 0 (3 tied). Machine pages: Kubota L4060GST and Kubota L4760.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4060GST	KubotaL4760

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E4-GL1	V2403-CR-E4-GL5
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	42 hp	49 hp
PTO Power	32.5 hp	39.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry paper, dual element	Dry paper, dual element
Fuel System	Electronic CRS (Common Rail System)	Electronic CRS (Common Rail System)
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Tandem pump - gear type	Tandem pump - gear type
Implement Flow	9.4 gpm	9.4 gpm
Steering Flow	4.7 gpm	4.7 gpm
Total Hydraulic Flow	14.1 gpm	14.1 gpm
Overall Hydraulic Pump Flow	14.1 gpm	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (up to 3 optional)	None standard (up to 3 optional)
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	13.5 gal
Coolant Capacity	7.9 qt	8.7 qt
Crankcase Capacity	8.7 qt	8.7 qt
Transmission / Hydraulic System Capacity	11.4 gal	11.4 gal
Front Axle Fluid Capacity	6.9 qt	8.9 qt
▶PTO & Hitch
PTO Type	Live independent (hydraulic clutch)	Live independent (hydraulic clutch)
PTO Rear	540 rpm @ 2476 engine rpm	540 rpm @ 2475 engine rpm
Mid-PTO Availability	Optional	Optional
Category, 3-Point Hitch	SAE Category 1	SAE Category 1
Hitch Lift Capacity	3,858 lb	3,858 lb
Hitch Lift Capacity (at 24”)	2,756 lb	2,756 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic	Hydrostatic
No. of Speeds	3-Range, 6 speeds (H-DS), infinitely variable in each	3-range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	16.8 mph	16.8 mph
Max Travel Speed (Reverse)	15.1 mph	15.1 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc type, mechanically activated	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	129.5 in	129.5 in
Overall Width	66.5 in	66.5 in
Wheelbase	74.6 in	74.6 in
Ground Clearance	14.2 in	14.4 in
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	8.9 ft (with brake applied)
Height to Top of ROPS	97.6 in	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
▶Weight
Tractor Weight (Base)	3748 lb	3847 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial
R1 Agricultural - Front	8.3-16	8.3-16
R1 Agricultural - Rear	14.9-24	14.9-24
R3 Turf - Front	27X10.50LL-15	29x12.50-15
R3 Turf - Rear	41X18LL-16.1	44x18-20
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	LA805	LA1055
Loader Lift Height	104.7 in	112.7 in
Loader Lift Capacity (Full Height)	1715 lb	2361 lb
Loader Breakout Force	2549 lb (19.7 in forward of pivot pin)	3171 lb (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Kubota dealer near you→

Kubota L4060GST vs Kubota L4760: Quick Answers

Which has more horsepower, the Kubota L4060GST or the Kubota L4760?

The Kubota L4760 leads on engine hp at 49 hp hp, compared to 42 hp hp for the Kubota L4060GST.

Which has more PTO horsepower, the Kubota L4060GST or the Kubota L4760?

The Kubota L4760 leads on pto hp at 39.5 hp hp, compared to 32.5 hp hp for the Kubota L4060GST.

Which is heavier, the Kubota L4060GST or the Kubota L4760?

The Kubota L4760 leads on weight at 3,847 lb lb, compared to 3,748 lb lb for the Kubota L4060GST.

Which has more loader lift capacity, the Kubota L4060GST or the Kubota L4760?

The Kubota L4760 leads on loader lift at 2,361 lb lb, compared to 1,715 lb lb for the Kubota L4060GST.

Which has more three-point hitch lift capacity, the Kubota L4060GST or the Kubota L4760?

They are effectively tied: both machines are rated at 2,756 lb lb for 3-pt lift (24 in).
