| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | V2403-CR-E4-LB1 | V2403-CR-E4-GL4 |
|---|
| Engine Type | 4-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel | Naturally aspirated, multi-valve, liquid-cooled diesel |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 148.5 in³ | 148.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2700 rpm |
|---|

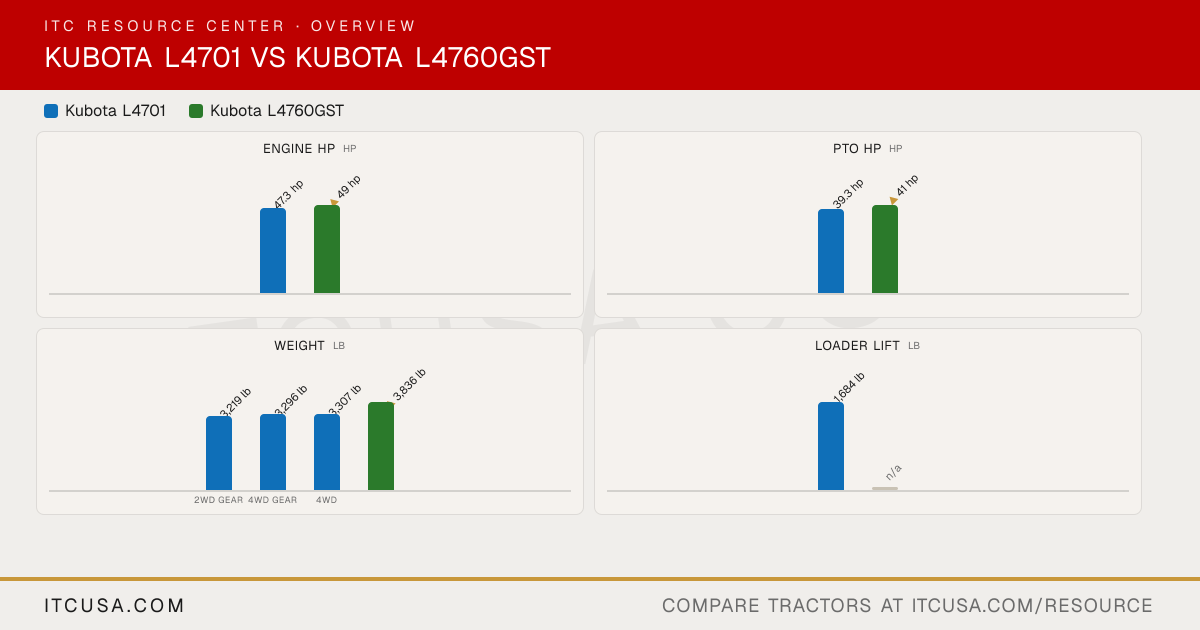

| Engine Power (Gross) | 47.3 hp | 49 hp |
|---|
| PTO Power | F (2WD gear), DT (4WD gear): 39.3 hp; HST (4WD): 37.8 hp | 41 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled, water with pressurized radiator | Liquid-cooled |
|---|
| Air Cleaner | Dry paper dual element | Dry paper, dual element |
|---|
| Fuel System | Common-rail, direct injection, electronic control | Electronic CRS (Common Rail System) |
|---|
| Alternator | 40 A, 12 V | 40 A, 12 V |
|---|
|
|---|
| Pump Type | Open center tandem pump, gear type | Tandem pump - gear type |
|---|
| Implement Flow | 7.8 gpm | 9.8 gpm |
|---|
| Steering Flow | 4.7 gpm | 4.9 gpm |
|---|
| Total Hydraulic Flow | 12.5 gpm | 14.7 gpm |
|---|
| Overall Hydraulic Pump Flow | 12.5 gpm | 14.7 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | None standard (up to 3 optional) |
|---|
| No. of Optional Remote Valves | Up to 3: self-canceling detent valve or float detent valve | Optional, up to 3: double-acting valve or float detent valve, any position |
|---|
|
|---|
| Fuel Tank Capacity | 13.5 gal | 13.5 gal |
|---|
| Coolant Capacity | 6.9 qt | 8.7 qt |
|---|
| Crankcase Capacity | 8.7 qt | 8.7 qt |
|---|
| Transmission / Hydraulic System Capacity | 10.6 gal | 11.4 gal |
|---|
| Front Axle Fluid Capacity | 6.9 qt | 8.9 qt |
|---|
|
|---|
| PTO Type | Live independent PTO with hydraulic clutch | Live independent (hydraulic clutch) |
|---|
| PTO Rear | 540 rpm | 540 rpm @ 2550 engine rpm |
|---|
| Mid-PTO Availability | No mid-PTO offered | Optional |
|---|
| Category, 3-Point Hitch | Category I | SAE Category I |
|---|
| Hitch Lift Capacity | 2,870 lb | 3,858 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,310 lb | 2,756 lb |
|---|
| Lift Control Type | Position control (draft control optional) | Position control |
|---|
|
|---|
| Transmission Type | F (2WD gear), DT (4WD gear): synchronized shuttle, 8F/8R; HST (4WD): hydrostatic, 3-range | Glide Shift |
|---|
| No. of Speeds | F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range | 12Fx8R |
|---|
| Max Travel Speed (Forward) | F (2WD gear), DT (4WD gear): 14.9 mph; HST (4WD): 15.8 mph | 16.0 mph |
|---|
| Max Travel Speed (Reverse) | F (2WD gear), DT (4WD gear): 14.3 mph; HST (4WD): 14.2 mph | 15.2 mph |
|---|
| Clutch | F (2WD gear), DT (4WD gear): dry type, single plate; HST (4WD): no transmission clutch | Not Published |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock standard | Rear differential lock, standard |
|---|
|
|---|
| Frame Type | Two-post foldable ROPS (factory certified) with retractable seat belt | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Mechanical wet disc type, pedals can be locked together | Wet disc type, mechanically activated |
|---|
| Seat Suspension & Adjustability | Not Published | Deluxe suspension seat with swivel; Air-Ride seat (optional) |
|---|
| Front Axle Type | F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing | 4WD: Bevel gear front axle, non-adjustable tread spacing |
|---|
| Front Axle Rating | F (2WD gear): 3,300 lb (at 50.4 in tread); DT (4WD gear), HST (4WD): 3,300 lb (at 45.5 in tread) | Not Published |
|---|
| Drawbar Capacity | 1,430 lb | 1,433 lb |
|---|
|
|---|
| Overall Width | 62.4 in | 66.5 in |
|---|
| Wheelbase | F (2WD gear): 72.8 in; DT (4WD gear), HST (4WD): 72.6 in | 74.6 in |
|---|
| Ground Clearance | 15.2 in | Not Published |
|---|
| Min. Turn Radius without Brakes | F (2WD gear): 10.2 ft; DT (4WD gear), HST (4WD): 11.5 ft | 8.9 ft (with brake applied) |
|---|
| Height to Top of ROPS | 91.7 in | 97.6 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Applicable |
|---|
| Overall Length | F (2WD gear): 130.3 in; DT (4WD gear), HST (4WD): 127.4 in (with 3-point hitch) | 129.5 in (with 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | F (2WD gear): 3,219 lb; DT (4WD gear): 3,296 lb; HST (4WD): 3,307 lb | 3,836 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) | R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial |
|---|
| R1 Agricultural - Front | F (2WD gear): 7.5L-15, 6-16; DT (4WD gear), HST (4WD): 8.3-16 | 8.3-16 |
|---|
| R1 Agricultural - Rear | 14.9-24 | 14.9-24 |
|---|
| R3 Turf - Front | 27x8.5-15 (2WD and 4WD); 27x10.5-15 (4WD) | 29x12.50-15 |
|---|
| R3 Turf - Rear | 44x18-20 | 44x18-20 |
|---|
| R4 Industrial - Front | 10-16.5 (4WD) | 10-16.5 |
|---|
| R4 Industrial - Rear | 17.5L-24 (4WD) | 17.5L-24 |
|---|
|
|---|
| Quick Attach Loader System | 2-lever quick coupler, tool-free attach and detach | 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) |
|---|
| Loader Model | LA765 | Not Published |
|---|
| Loader Lift Height | LA765: 105.2 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | LA765: 1,684 lb | Not Published |
|---|
| Loader Breakout Force | LA765: 3,153 lbf | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Not Published |
|---|
|
|---|
