Kubota L4760GST vs Kubota L48

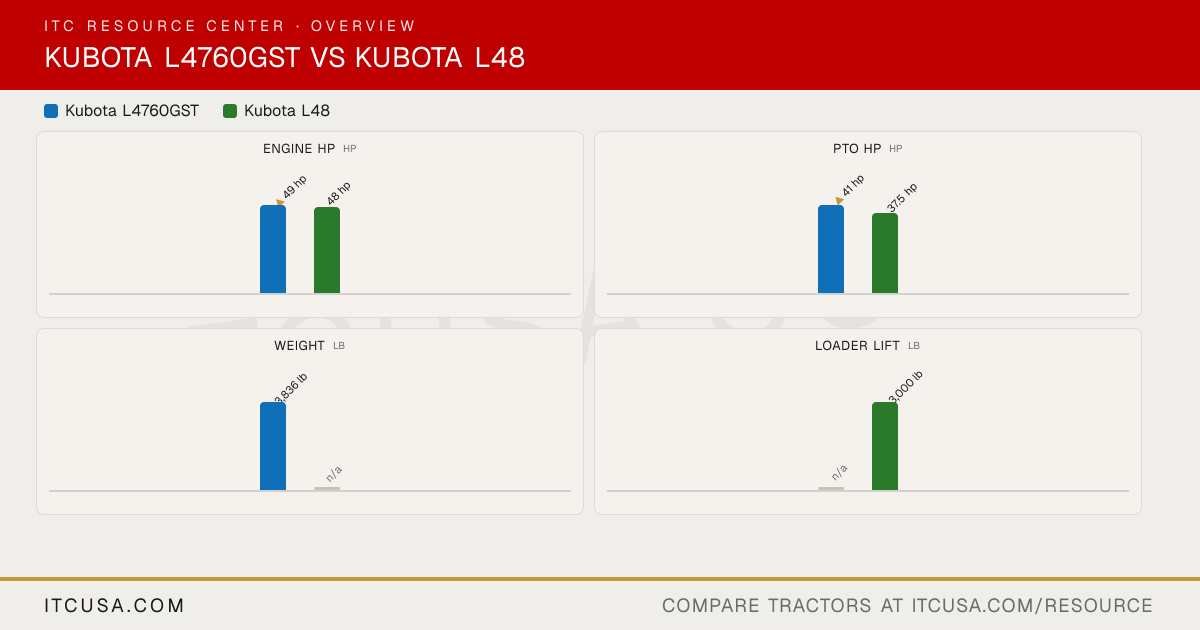

Across 5 measurable specs, the Kubota L4760GST leads 3 categories to 2. Machine pages: Kubota L4760GST and Kubota L48.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4760GST	KubotaL48

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E4-GL4	Not Published
Engine Type	Naturally aspirated, multi-valve, liquid-cooled diesel	4-cylinder, indirect injection, liquid-cooled diesel
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2700 rpm	2600 rpm
Engine Power (Gross)	49 hp	48 hp
PTO Power	41 hp	37.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry paper, dual element	Not Published
Fuel System	Electronic CRS (Common Rail System)	Not Published
Alternator	40 A, 12 V	Not Published
▶Hydraulics
Pump Type	Tandem pump - gear type	Not Published
Implement Flow	9.8 gpm	Not Published
Steering Flow	4.9 gpm	Not Published
Total Hydraulic Flow	14.7 gpm	25.9 gpm
Overall Hydraulic Pump Flow	14.7 gpm	25.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (up to 3 optional)	Not Published
No. of Optional Remote Valves	Optional, up to 3: double-acting valve or float detent valve, any position	Not Published
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	13.2 gal
Coolant Capacity	8.7 qt	Not Published
Crankcase Capacity	8.7 qt	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	8.9 qt	Not Published
▶PTO & Hitch
PTO Type	Live independent (hydraulic clutch)	Live-continuous running
PTO Rear	540 rpm @ 2550 engine rpm	540 rpm
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	SAE Category I	Category I (standard)
Hitch Lift Capacity	3,858 lb	Not Published
Hitch Lift Capacity (at 24”)	2,756 lb	3,310 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Glide Shift	"Feather Step" hydrostatic transmission, 3-range
No. of Speeds	12Fx8R	3-range (infinite)
Max Travel Speed (Forward)	16.0 mph	15.3 mph
Max Travel Speed (Reverse)	15.2 mph	Not Published
Clutch	Not Published	Dry, single
Differential Lock & Limited Slip Options	Rear differential lock, standard	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Four-post ROPS/FOPS standard
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc type, mechanically activated	Wet disc
Seat Suspension & Adjustability	Deluxe suspension seat with swivel; Air-Ride seat (optional)	Movable seat, spins in place; tilt steering standard
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	Not Published
▶Dimensions & Maneuverability
Overall Width	66.5 in	74.5 in
Wheelbase	74.6 in	74.0 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	10.5 ft
Height to Top of ROPS	97.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	129.5 in (with 3-point hitch)	Not Published
▶Weight
Tractor Weight (Base)	3,836 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial	Industrial (R4): 10-16.5 R4 front, 17.5L-24 R4 rear
R1 Agricultural - Front	8.3-16	Not Published
R1 Agricultural - Rear	14.9-24	Not Published
R3 Turf - Front	29x12.50-15	Not Published
R3 Turf - Rear	44x18-20	Not Published
R4 Industrial - Front	10-16.5	10-16.5 R4
R4 Industrial - Rear	17.5L-24	17.5L-24 R4
▶Loader & Attachments
Quick Attach Loader System	2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional)	Not Published
Loader Model	Not Published	TL1150
Loader Lift Height	Not Published	TL1150: 116.1 in (at pivot pin)
Loader Lift Capacity (Full Height)	Not Published	TL1150: 3,000 lb (at pivot pin)
Loader Breakout Force	Not Published	TL1150: 4,375 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Not Published	Not Published
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	None tagged yet

Find a Kubota dealer near you→

Kubota L4760GST vs Kubota L48: Quick Answers

Which has more horsepower, the Kubota L4760GST or the Kubota L48?

The Kubota L4760GST leads on engine hp at 49 hp hp, compared to 48 hp hp for the Kubota L48.

Which has more PTO horsepower, the Kubota L4760GST or the Kubota L48?

The Kubota L4760GST leads on pto hp at 41 hp hp, compared to 37.5 hp hp for the Kubota L48.

Which has more three-point hitch lift capacity, the Kubota L4760GST or the Kubota L48?

The Kubota L48 leads on 3-pt lift (24 in) at 3,310 lb lb, compared to 2,756 lb lb for the Kubota L4760GST.
